Rockwell Automation 5094-OB32XT User Manual

136 Rockwell Automation Publication 5094-UM001E-EN-P - April 2020
Appendix A Troubleshoot Your Module
Use the Logix Designer
Application for
Troubleshooting
In addition to the status indicator display on the module, the Logix Designer
application indicates the presence of fault conditions.
Fault conditions are reported in the following ways:
• Warning Signal in the I/O Configuration Tree
• Status and Fault Information in Module Properties Categories
• Logix Designer Application Tag Editor
Warning Signal in the I/O Configuration Tree

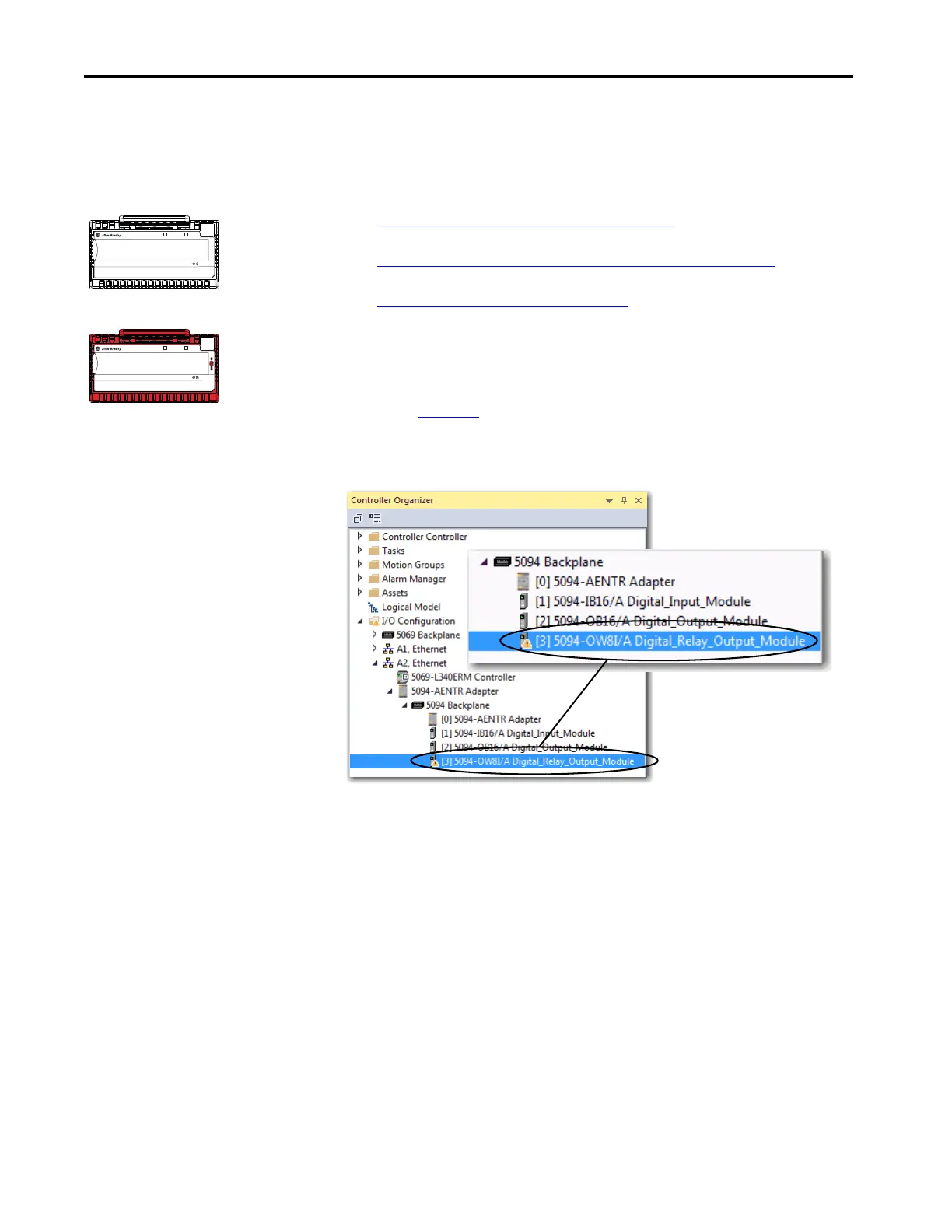

As shown in Figure 24, a warning icon appears in the I/O Configuration tree
when a fault occurs.
Figure 24 - Warning Icon in Controller Organizer
STATUS
POWER
SAFETY DIGITAL 16 INPUT 24 VDC
5094-IB16S
5
5
TB3I
FLEX 5000
TM
I/O
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
STATUS
POWER
DIGITAL 16 INPUT 24 VDC
5094-IB16
1
1
TB3
FLEX 5000
TM
I/O
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Safety Modules
Standard Modules

Rockwell Automation 5094-OB32XT Specifications

General

Manufacturer	Rockwell Automation
Product Type	Digital Output Module
Series	5094
Number of Outputs	32
Output Type	Sourcing
Voltage Rating	24V DC
Communication Interface	EtherNet/IP
Module Location	Chassis
Operating Temperature	-20°C to 60°C
Certifications	CE, UL
