178 Rockwell Automation Publication 5094-UM001E-EN-P - April 2020
Appendix B Module Tag Definitions
5094-OW8I Module Tags
This section describes the tags that are associated with the 5094-OW8I module.
Configuration Tags
Tab le 65 describes the 5094-OW8I module configuration tags.
STATUS
POWER
DIGITAL 16 INPUT 24 VDC
5094-IB16
1
1
TB3
FLEX 5000
TM
I/O
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Standard Modules

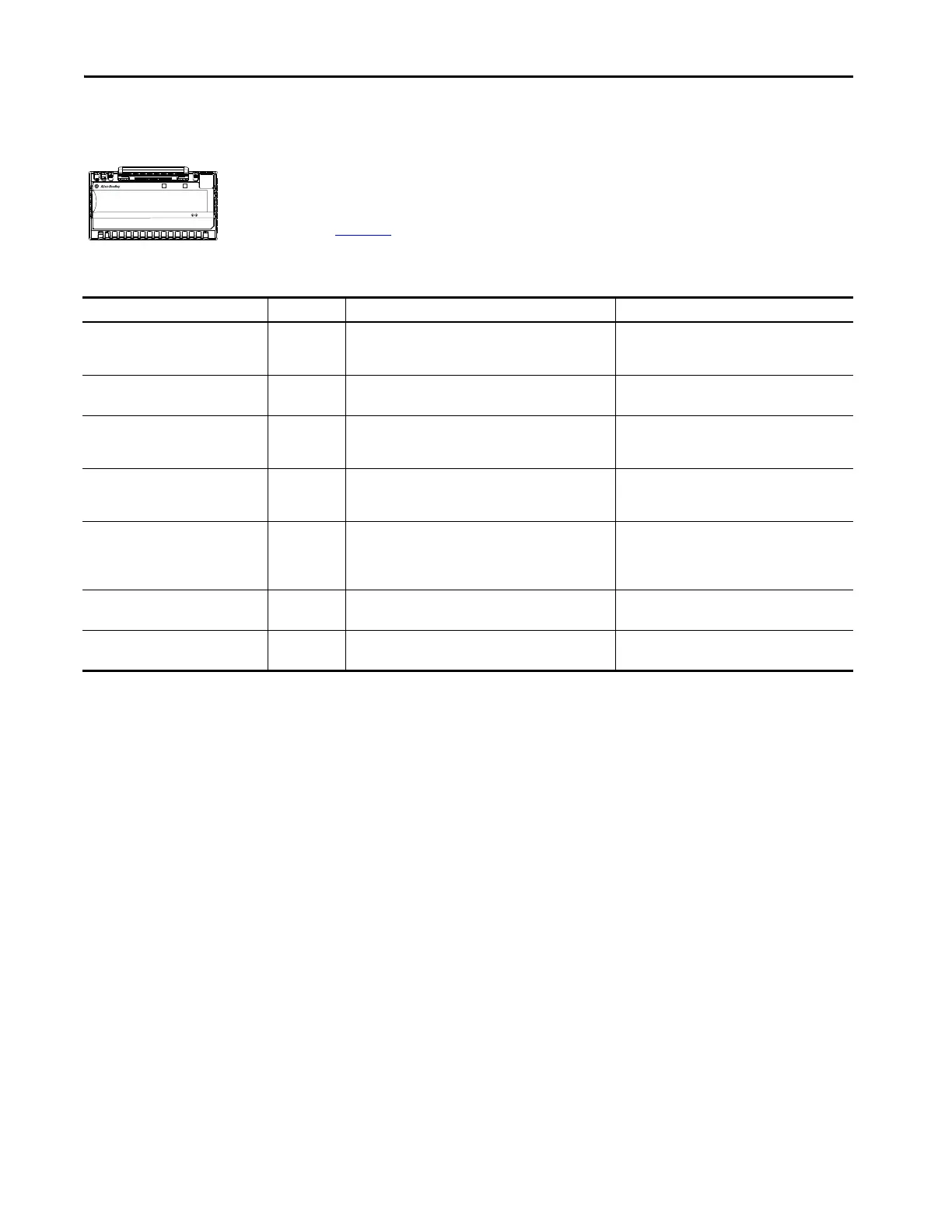

Table 65 - 5094-OW8I Module Configuration Tags
Name Data Type Definition Valid Values
Ptxx.FaultMode BOOL Selects the behavior the output point takes if a
communication fault occurs. FaultValue defines the value to
go to when set to user-defined value.
• 0 = Go to a user-defined value
• 1= Hold last state
Ptxx.FaultValue BOOL Defines the value that the discrete output should assume if a
communication fault occurs when FaultMode = 0.
•0 = Off
•1 = On
Ptxx.ProgMode BOOL Selects the behavior the output point should take when
transitioned into Program mode. ProgValue defines the
value to go to when set to user-defined value.
• 0 = Go to a user-defined value
• 1= Hold last state
Ptxx.ProgValue BOOL Defines the value that the output should take when the
connection transitions to Program mode if the ProgMode bit
is set to “User-Defined Value”.
• 0 = The output state is Off during Program mode.
• 1 = The output state is On during Program mode.
Ptxx.FaultFinalState BOOL If FaultValueStateDuration is nonzero determines the final
Output state after the configured FaultValueStateDuration
time out occurs.
• 0 = The output state is Off after the
FaultValueStateDuration time expires.
• 1 = The output state is On after the
FaultValueStateDuration time expires.
Ptxx.ProgramToFaultEn BOOL Determines if an output should transition to the Fault Mode
if the connection faults while in Program Mode.
• 0 = Stay in Program Mode
• 1 = Go to Fault mode
Ptxx.FaultValueStateDuration SINT This value determines the length of time the Fault Mode
state is held before the FaultFinalState being applied.
•0 = Hold forever (default).
• 1, 2, 5, or 10 seconds
