14 Rockwell Automation Publication 1756-UM021A-EN-P - September 2023
Chapter 1 ControlLogix Embedded Edge Compute Module
Other Communication Drivers
All other communication drivers in FactoryTalk Optix can run on both Port 1 and Port 2:
•Modbus
•MELSEC FX3U
•MELSEC Q
•S7TCP
•S7 TIA PROFINET
• OMRON EtherNet/IP
•OMRON FINS
•CODESYS
•TwinCAT
•SerialPort
For more information, see Communication Drivers Overview in the FactoryTalk Optix Studio
Help.
Rotary Switches There are rotary switches on the side of the module. Out-of-the-box, the switches are set to
000 and are planned for future use.

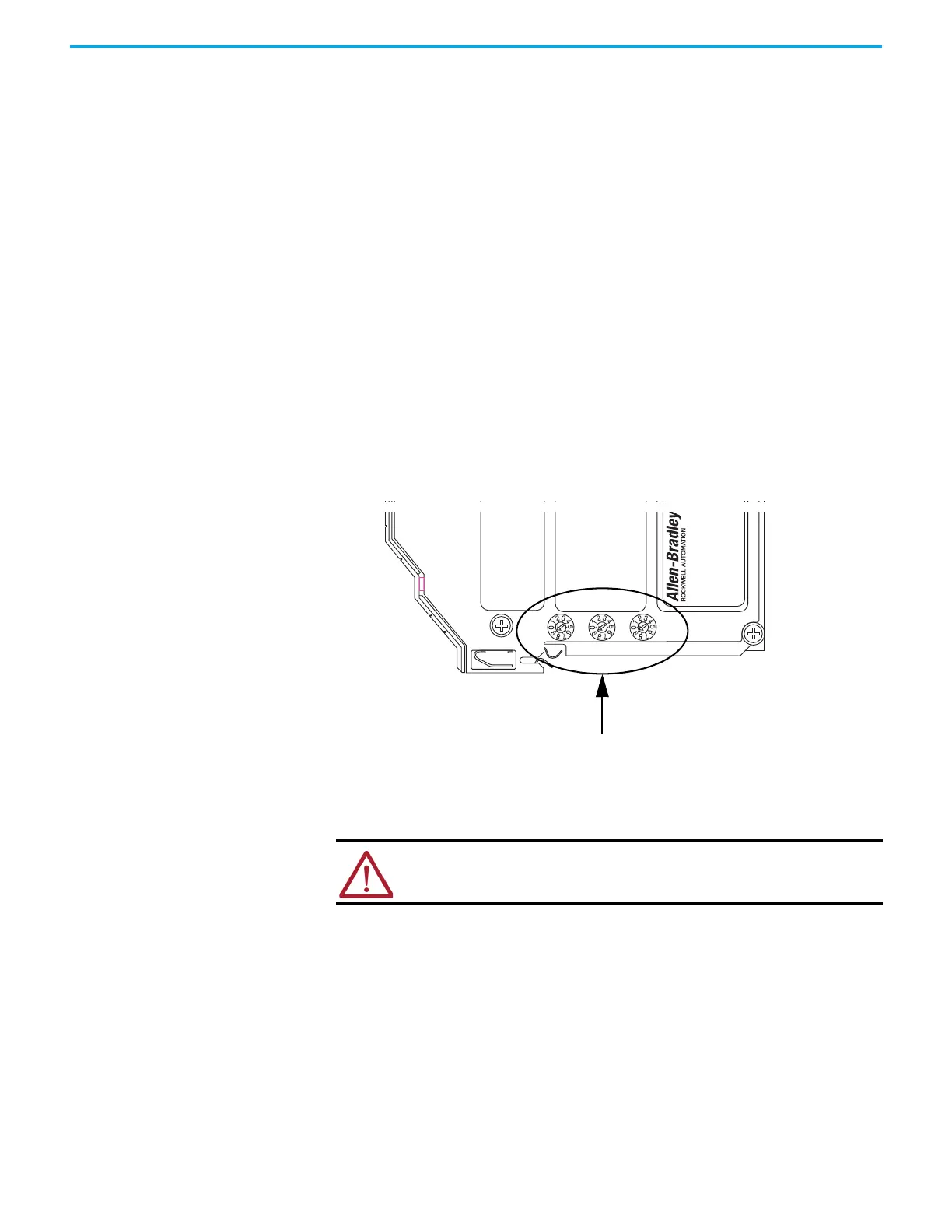

Embedded Edge Compute Module Rotary Switches
Reset Button Embedded Edge Compute modules have a reset button behind the door that powers off and
reboots the device.
An example of when you would use the reset button include:
• To restart the embedded OS after a module crash.
Use a tool with a small head, for example, a small screwdriver, to press the reset button when
the module is powered.
WARNING: When you press the reset button while power is on, an electric arc
can occur. This can cause an explosion in hazardous location installations.
Be sure that power is removed or the area is nonhazardous before proceeding.
