Rockwell Automation Publication 1756-UM021A-EN-P - September 2023 19
Chapter 2 Configure the Module with Studio 5000 Logix Designer

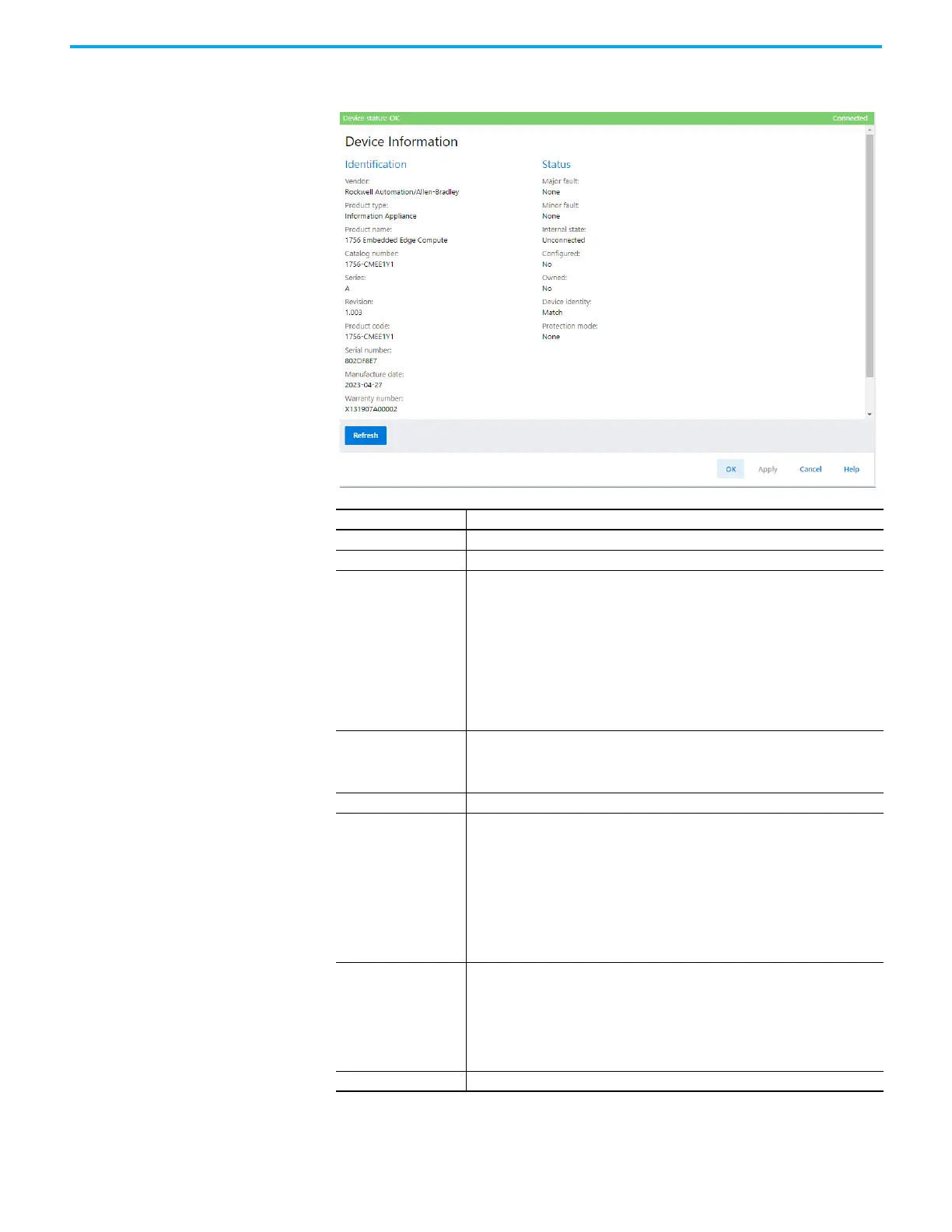

Device Information Use the Device Information view to view device and status information when the device is
online.
Parameter Description
Identification Displays information that identifies the module.
Status - Major/Minor fault Displays whether there is a major and minor fault.
Status - Internal State
Displays the module’s current operational state.
• Self-test
•Flash update
• Communication fault
• Unconnected
• Flash configuration bad
•Major fault
•Run mode
• Program mode
• (16#xxxx) unknown
Status - Configured
Displays Yes or No indicating whether the module was configured by the owner
controller connected to it.
Once a module is configured, it stays configured until the module is reset or power is
cycled, even if the owner drops connection to the device.
Status - Owned Displays Yes or No indicating whether an owner controller is connected to the device.
Status - Device identity
Displays whether the physical device matches or mismatches with the configuration in
the Overview view.
• Match - The physical device agrees with what is specified in the Overview view, and
all of these must agree:
–Vendor
– Device type (the combination of Product type and Product code for a particular
Vendor)
– Major revision
• Mismatch - If the physical device does not agree with what is specified in the
Overview view.
Status - Protection mode
Displays the device protection when online. The protection mode depends on the
device and may include:
•Explicit
• Implicit
•None
Tip: When the device is offline or if a communication failure to the device occurs, the
field is blank.
Refresh Retrieves and displays the latest values from the device.
