Kinetix 5500 Servo Drives
In this example, the devices are connected by using ring topology. If one device in the ring is disconnected, the rest of the devices continue
to communicate. For ring topology to work correctly, a device level ring (DLR) supervisor is required (for example, the Bulletin 1783 ETAP
device). DLR is an ODVA standard.
Devices without dual ports must include, for example, the 1783-ETAP module.

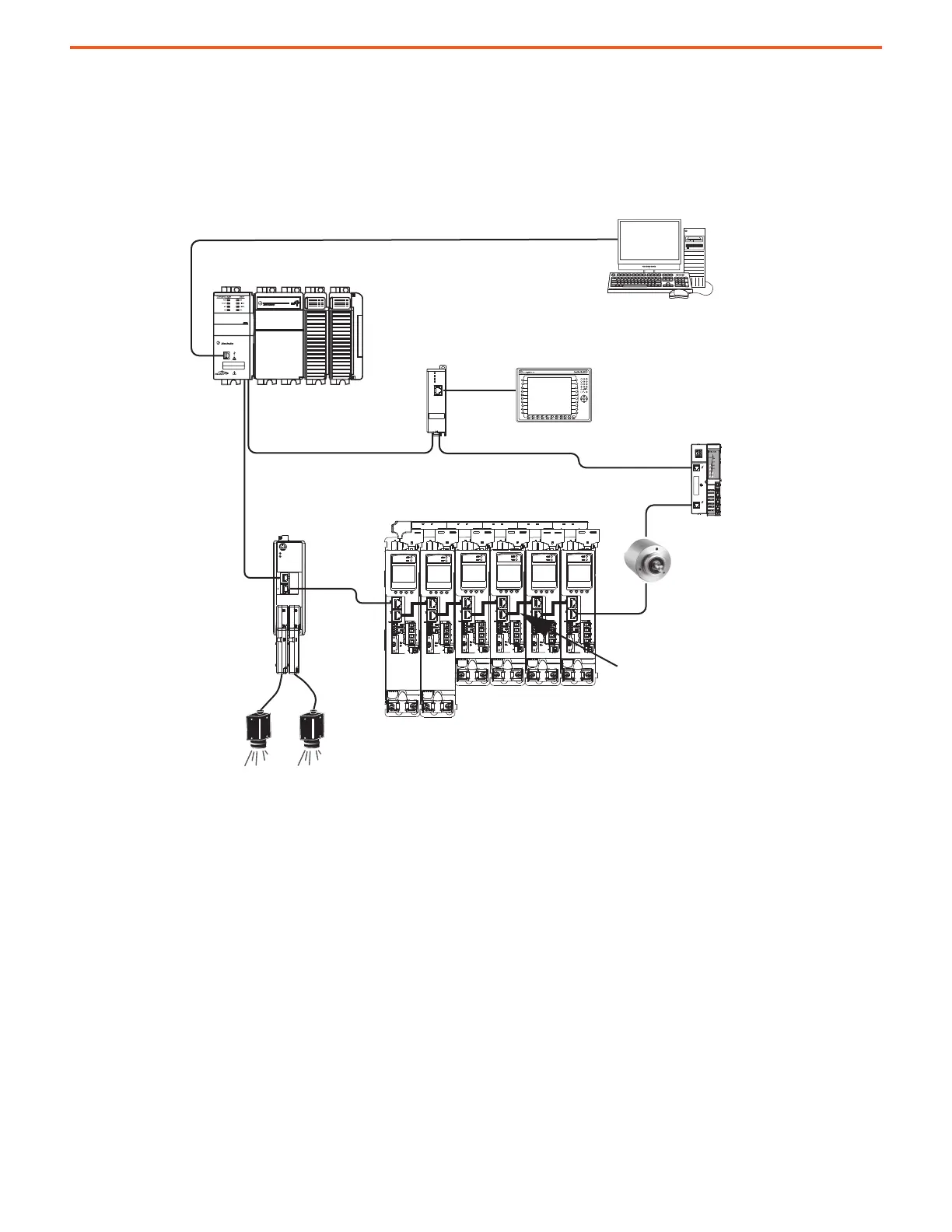

Kinetix 5500 Ring Communication
1 (Front)
2 (Rear)
00:00:BC:2E:69:F6
02
0
1734-AENTR
Module
Status
Network
Activity
Network
Status
Point Bus
Status
System
Power
Field
Power
POINT I O
Link 1
Activity/
Status
Link 2
Activity/
Status
MOD
NET
OUTPUT-A OUTPUT-B
1585J-M8CBJM-x
Ethernet (shielded) Cable
1734-AENTR POINT I/O
EtherNet/IP Adapter
CompactLogix Controller Programming Network
1783-ETAP
Module
1585J-M8CBJM-OM3
0.15 m (6 in.) Ethernet cable
for drive-to-drive connections.
PanelView Plus
Display Terminal
Kinetix 5500 Servo Drive System
CompactLogix 5370 Controller
Studio 5000 Logix
Designer Application
842E-CM Integrated
Motion Encoder
2198-ABQE
Encoder Output Module
