106 Rockwell Automation Publication 2198-UM001D-EN-P - May 2014
Chapter 6 Configure and Start the Kinetix 5500 Drive System
In this example, the typical dialog boxes for 1756-ENxT EtherNet/IP modules
and CompactLogix 5370 controllers with embedded Ethernet are shown.
Follow these steps to configure your Logix5000 controller.
1. Expand the Logix5000 controller family and select your controller.
2. Type the file Name.
3. Click Next.

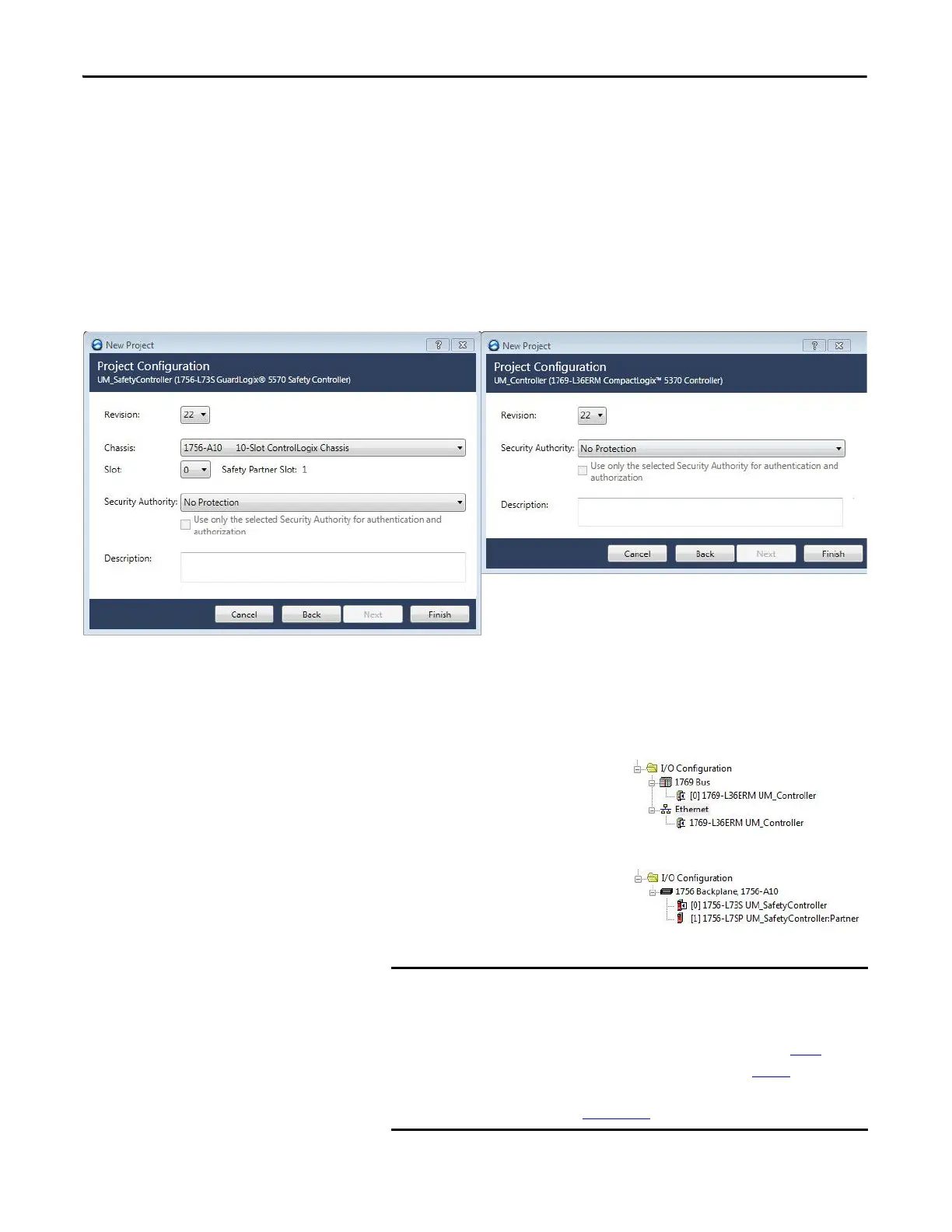

The New Project dialog box appears.
4. From the Revision pull-down menu, choose your software revision.
5. Click Finish.
The new controller appears in the Controller Organizer under the
I/O Configuration folder.
Controller Organizer with
CompactLogix 5370 controller.
Controller Organizer with
GuardLogix 1756-L7xS controller.
If your project includes a ControlLogix or GuardLogix controller, you
need to add an Ethernet communication module to your Bulletin
1756 chassis and configure it for use in your application.
• For ControlLogix or GuardLogix controllers, go to step 6
• For CompactLogix 5370 controllers, go to step 13
Refer to the EtherNet/IP Network Configuration User Manual,
publication, ENET-UM001
for more information.
