Group 2 is a shared DC (common-bus) configuration. The Bus Configuration
for the leader drive is Shared AC/DC. The Bus Configuration for the follower
drives is Shared DC.

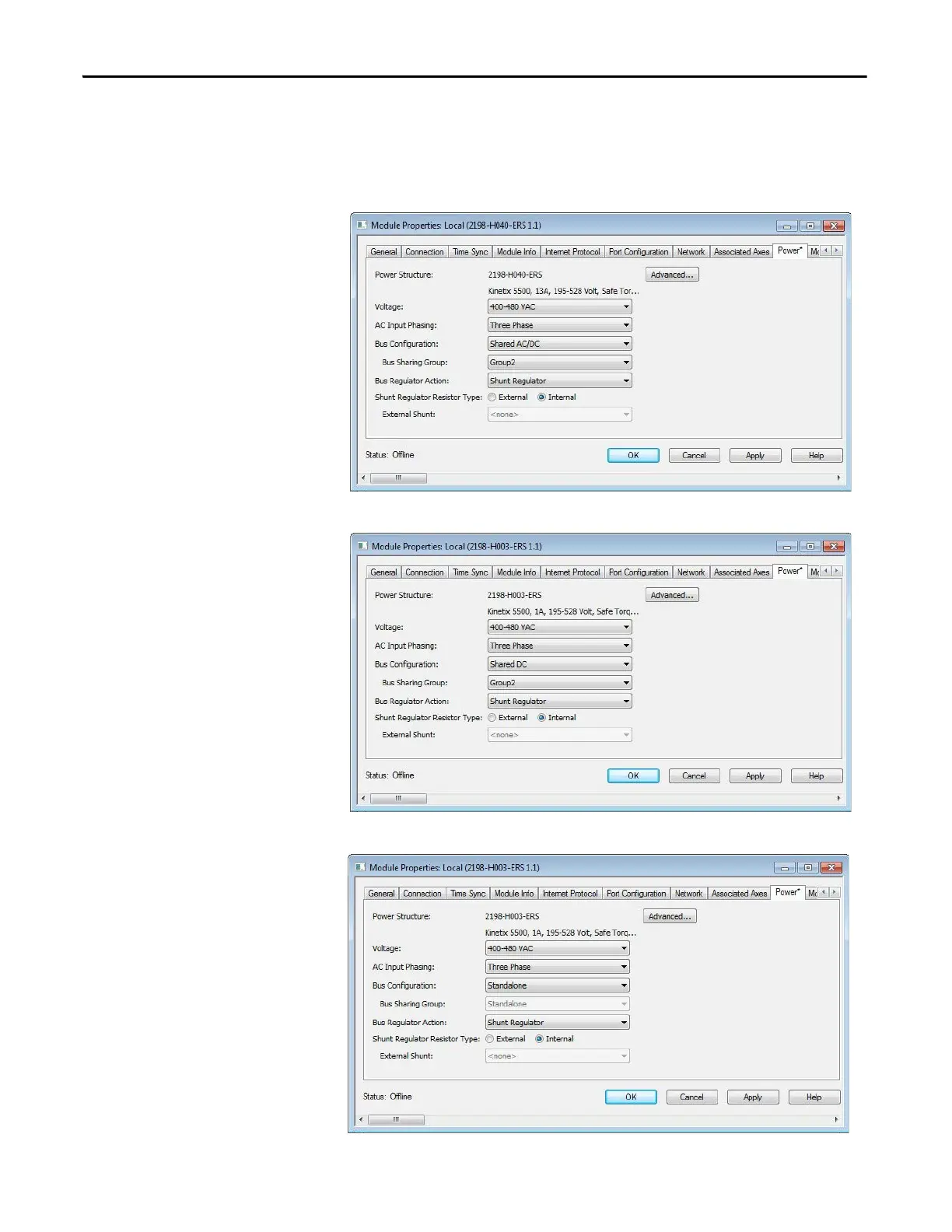

Figure 62 - Group 2 Leader Drive Configuration
Figure 63 - Group 2 Follower Drives Configuration
Figure 64 - Standalone Drive Configuration
