Chapter 7 Troubleshooting the Kinetix 5500 Drive System
Only selected drive exceptions are configurable. In the drive behavior tables, the
controlling attribute is given for programmable fault actions.

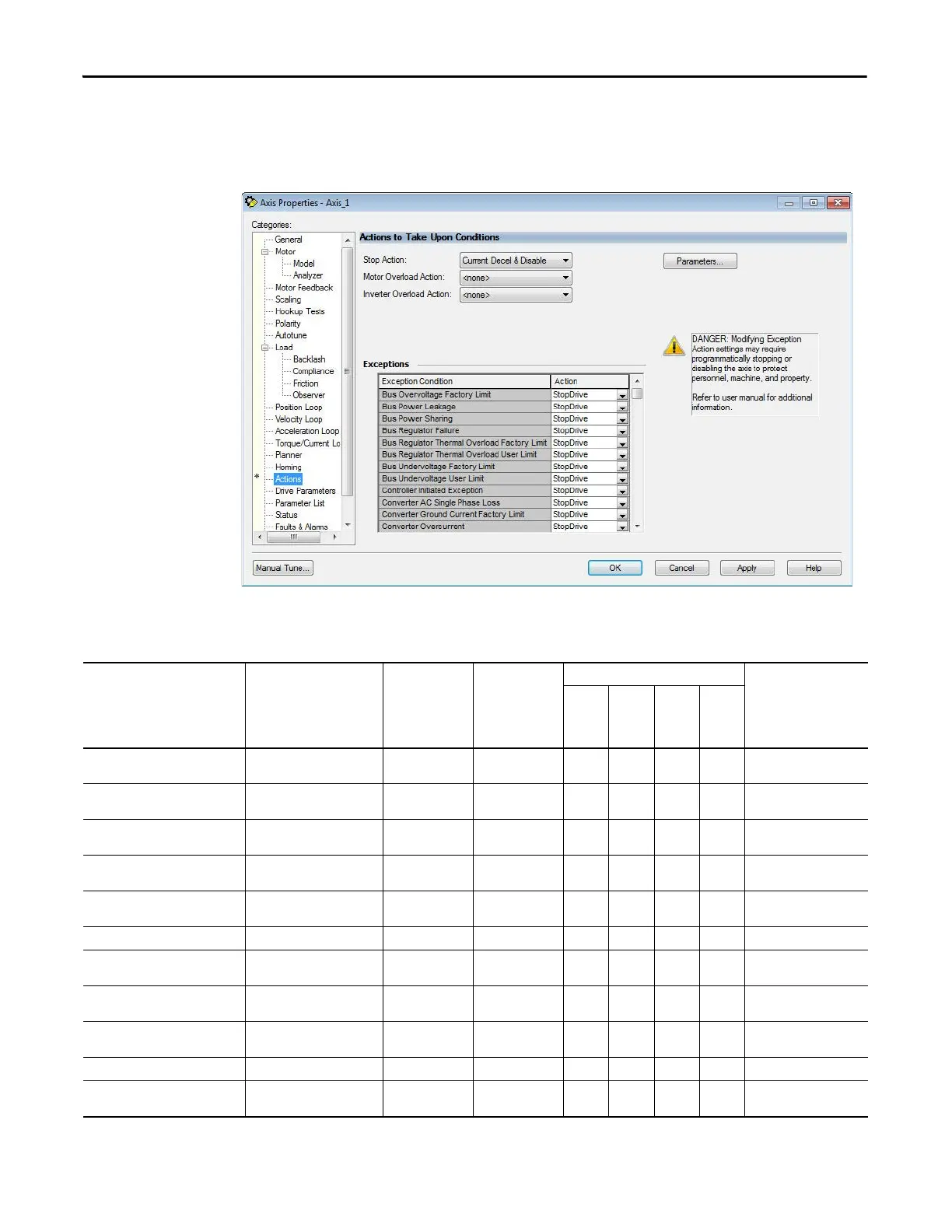

Figure 65 - Logix Designer Axis Properties - Actions Category
This dialog box applies to Kinetix 5500 (EtherNet/IP network) servo drives.
Table 70 - Drive Behavior, FLT Sxx Fault Codes
Exception Fault Code Exception Text
Permanent
Magnet Motor
Induction Motor
Fault Action
Best Available
Stopping Action
(applies to major faults)
Ignore Alarm Minor Fault Major Fault
FLT S03 – MTR OVERSPEED FL
Motor Overspeed
Factory Limit Fault
XXDisable/Coast
FLT S04 – MTR OVERSPEED UL
Motor Overspeed
User Limit Fault
X XXXXDecel/Hold
FLT S05 – MTR OVERTEMP FL
Motor Overtemperature
Factory Limit Fault
XXDisable/Coast
FLT S07 – MTR OVERLOAD FL
Motor Thermal Overload
Factory Limit Fault
X X X Decel/Disable
FLT S08 – MTR OVERLOAD UL
Motor Thermal OverLoad
User Limit Fault
X X XXXXDecel/Hold
FLT S10 – INV OVERCURRENT Inverter Overcurrent Fault X X X Disable/Coast
FLT S11 – INV OVERTEMP FL
Inverter Overtemperature
Factory Limit Fault
XX XDisable/Coast
FLT S13 – INV OVERLOAD FL
Inverter Thermal Overload
Factory Limit Fault
XX XDisable/Coast
FLT S14 – INV OVERLOAD UL
Inverter Thermal Overload
User Limit Fault
X X XXXXDecel/Hold
FLT S15 – CONV OVERCURRENT Converter Overcurrent Fault X X X Disable/Coast
FLT S16 – GROUND CURRENT
Ground Current
Factory Limit Fault
XX XDisable/Coast
