Publication 2098-IN005C-EN-P — March 2008
Commissioning Your Ultra3000 Drive 55
Configure Your Logix Module
Follow these steps to configure your Logix module.
1. In the Explorer dialog, right-click I/O Configuration and choose
New Module.
The Select Module dialog opens.
2. Expand the Motion category and select 1756-M02AE, 1756-HYD02,
1756-M02AS, or 1784-PM02AE as appropriate for your actual
hardware configuration.
3. Click OK.
Your new module appears under the I/O Configuration folder in
the Explorer dialog and the New Module dialog opens.

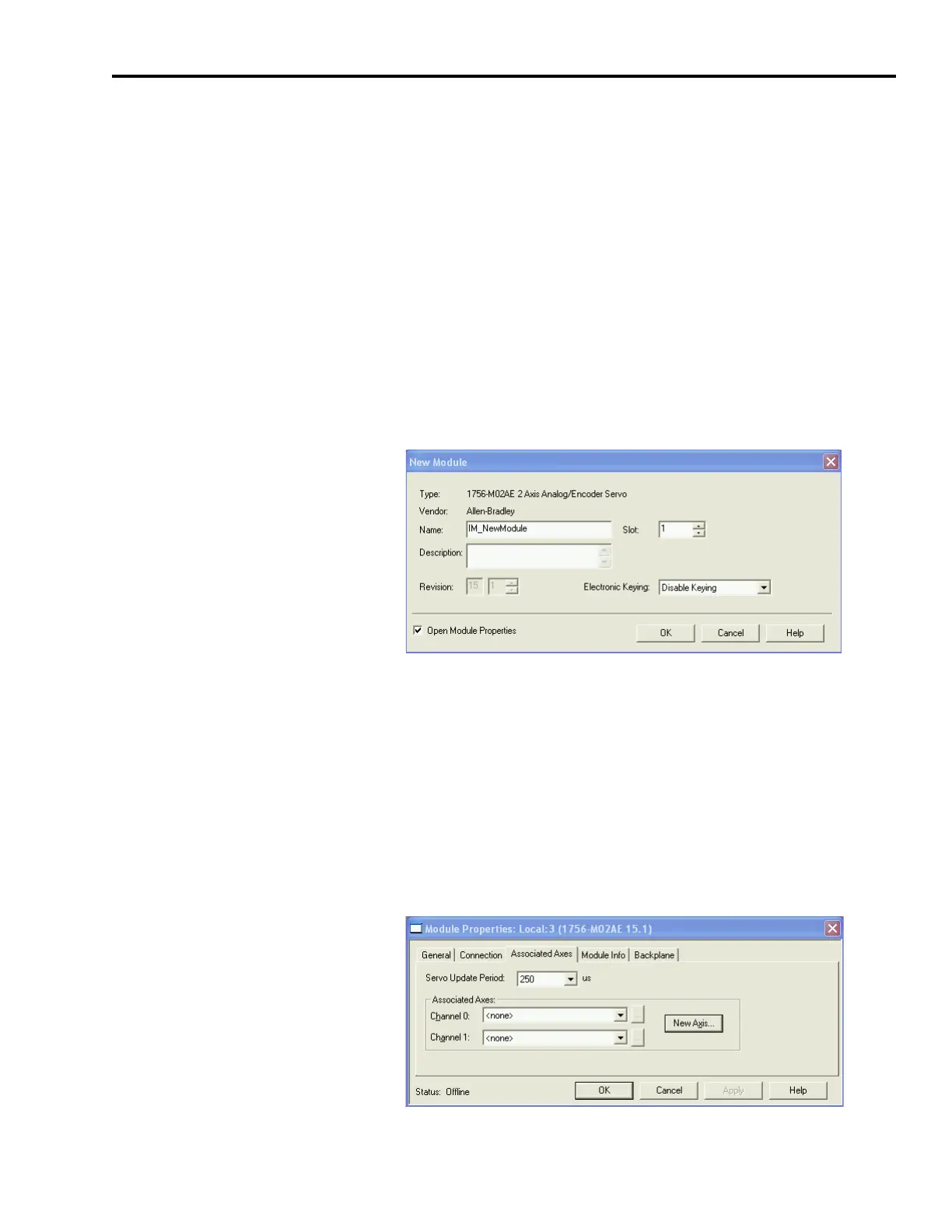

4. Configure the new module.
a. In the Name box, enter your module name
b. Enter the module slot.
c. From the Electronic Keying pull-down menu, choose your
keying option
5. Click OK.
Your new module appears under the I/O Configuration folder in
the Explorer dialog and the Module Properties dialog opens.
