Publication 2098-IN005C-EN-P — March 2008
76 Commissioning Your Ultra3000 Drive

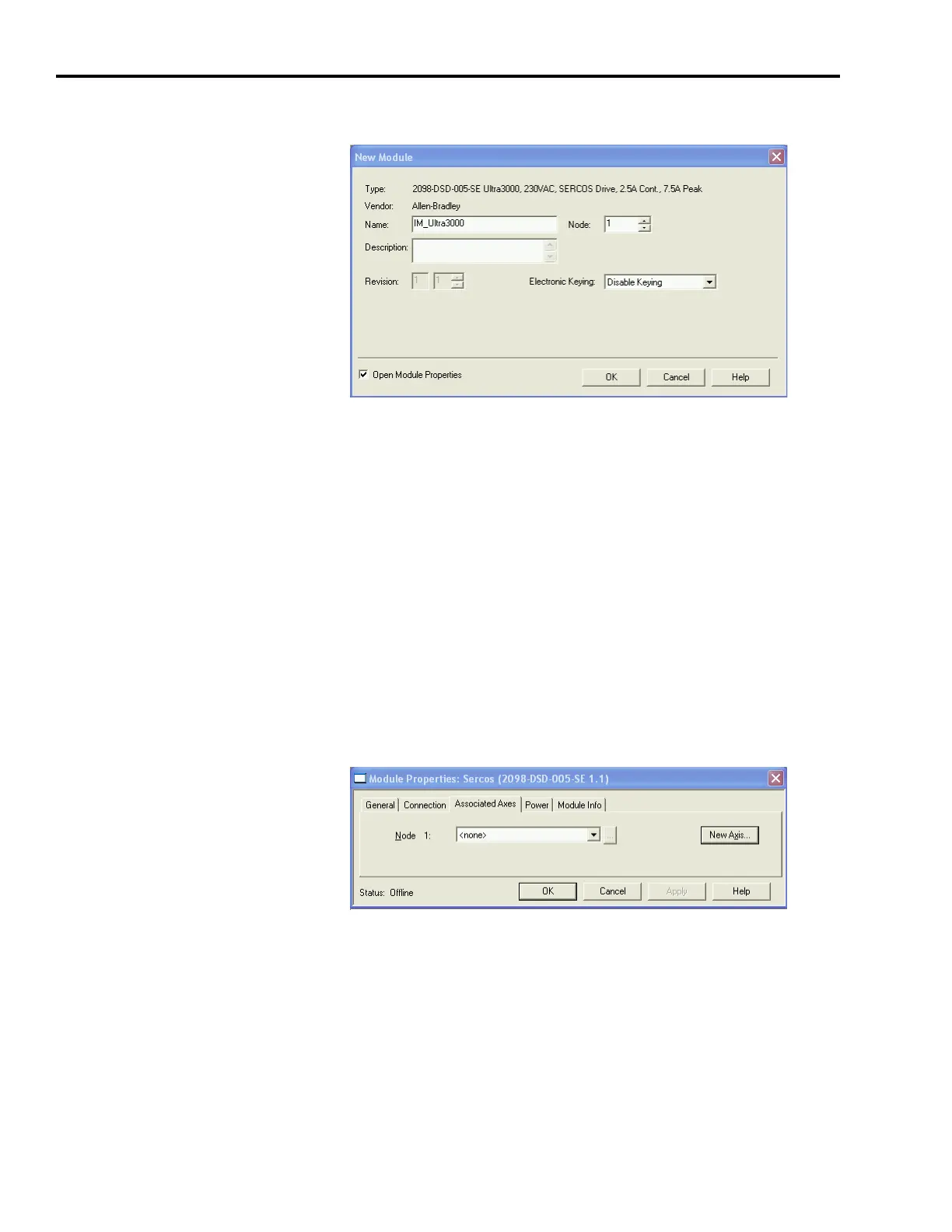

The New Module dialog opens.
4. Configure the new module.
a. In the Name box, enter your module name.
b. In the Node box, enter the node address.
Set the node address in the software to match the node address
setting on the drive.
Refer to Configure Your Ultra3000-SE Drive, step 2, on page 70.
c. From the Electronic Keying pull-down menu, choose an
electronic keying option (choose Disable Keying if unsure).
d. Check the Open Module Properties checkbox.
5. Click OK.
6. Click the Associated Axes tab.
7. Click New Axis.
