Access Procedures 3-27
Removing the Power
Structure from the Drive
Enclosure
1. Remove power from the drive. Refer to Removing Power from Drive on
page 3-3.
2. Remove the covers from the power structure. Refer to Removing the
Covers from the Power Structure on page 3-15.
3. Remove the motor wiring from the power structure at the front of the
power structure.
4. Remove the ground connection from the lower right rear corner of the
power structure.
5. Remove the AC power wiring from the incoming terminals at the top of
the power structure.
6. Follow the instructions in publication PFLEX-IN014…, Installation
Instructions - PowerFlex 700S /700H High Power Maintenance Stand,
to install the Maintenance Stand. Remove the power structure by sliding
it onto the rails of the Maintenance Stand.
Installing the Power
Structure in the Drive
Enclosure
Install the power structure in reverse order of removal, while referring to
Torque Specifications on page 3-2
. Refer to the publication
PFLEX-IN006…, Installation Instructions - PowerFlex 700S and 700H
High Power Drives, for tightening torques of motor terminations.

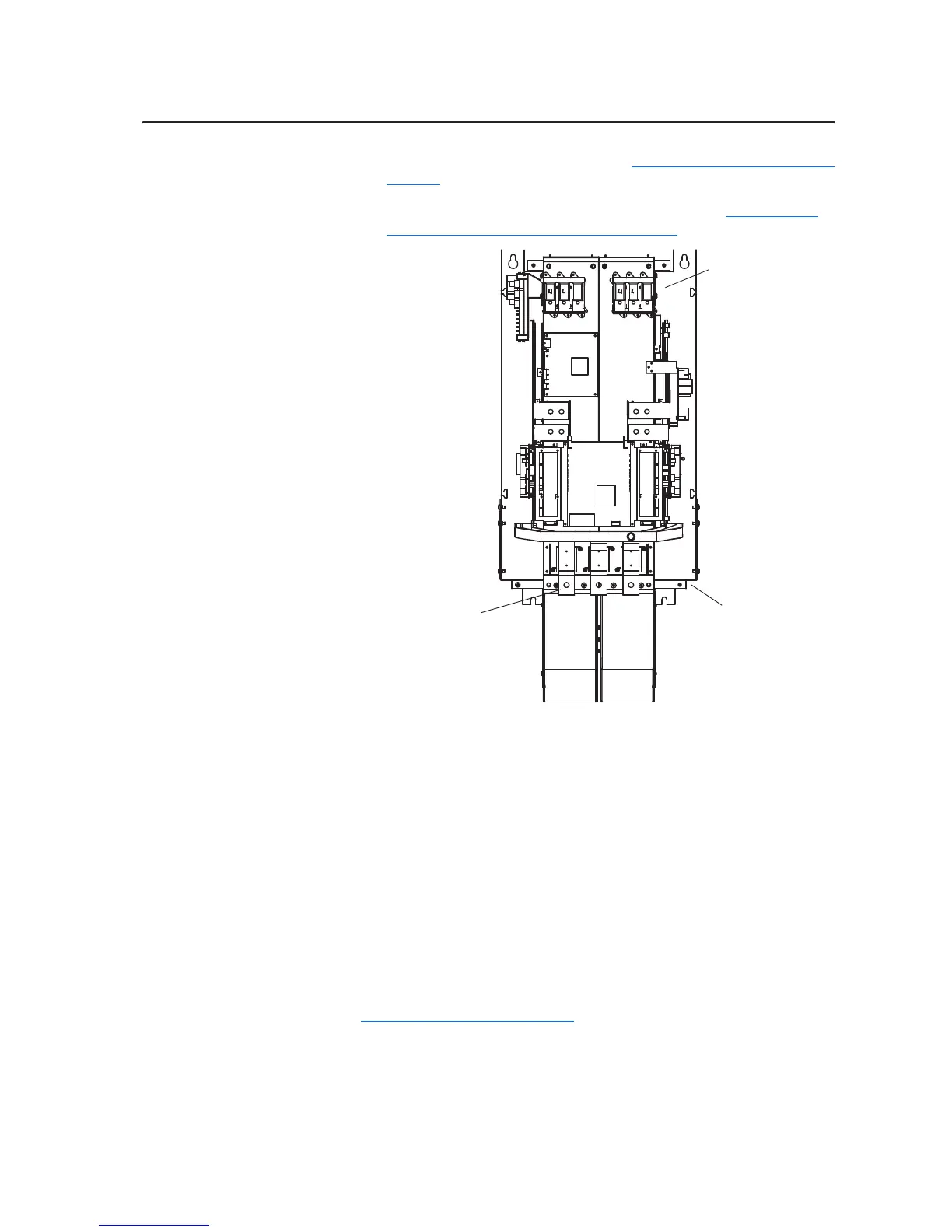

Motor Connection
Terminals
AC Power Connection
Te r mina ls
Ground
Connection
bare_frame 10.eps
To Next Page
