Access Procedures 3-43

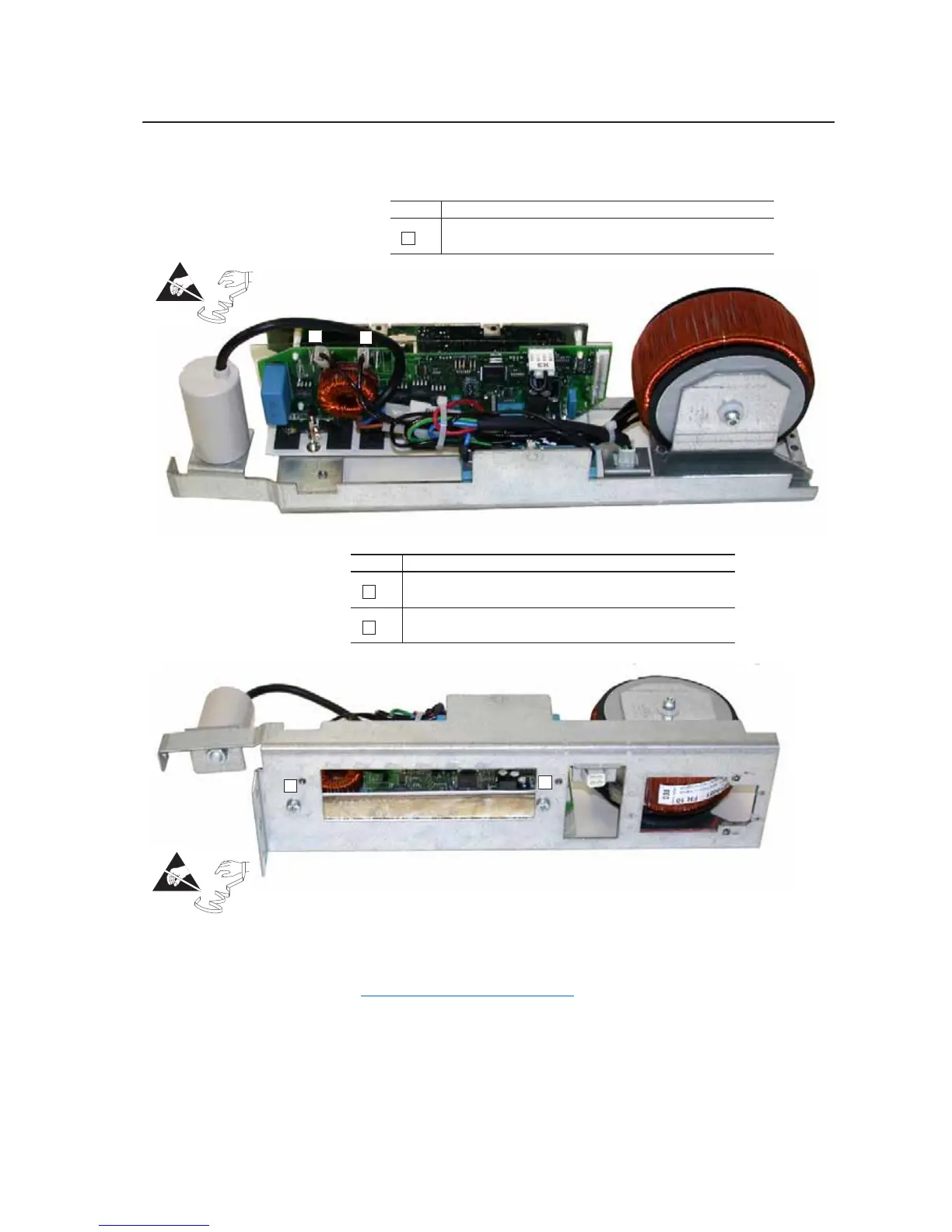

6. Remove the Inverter from the old Inverter assembly.
Installing the Fan Inverters
Install the fan inverters in reverse order of removal, while referring to
Torque Specifications on page 3-2
.
Task Description
Disconnect the cables at connectors X4 (Blue) and X5 (Black).
A
Task Description
Remove two M5 POZIDRIV screws that secure the inverter board and
heatsink to the assembly carriage.
Carefully remove the inverter board and heatsink from the assembly
carriage.
B
C
Right-hand Inverter Shown
=
A
A
B
B
=
