Access Procedures 3-39

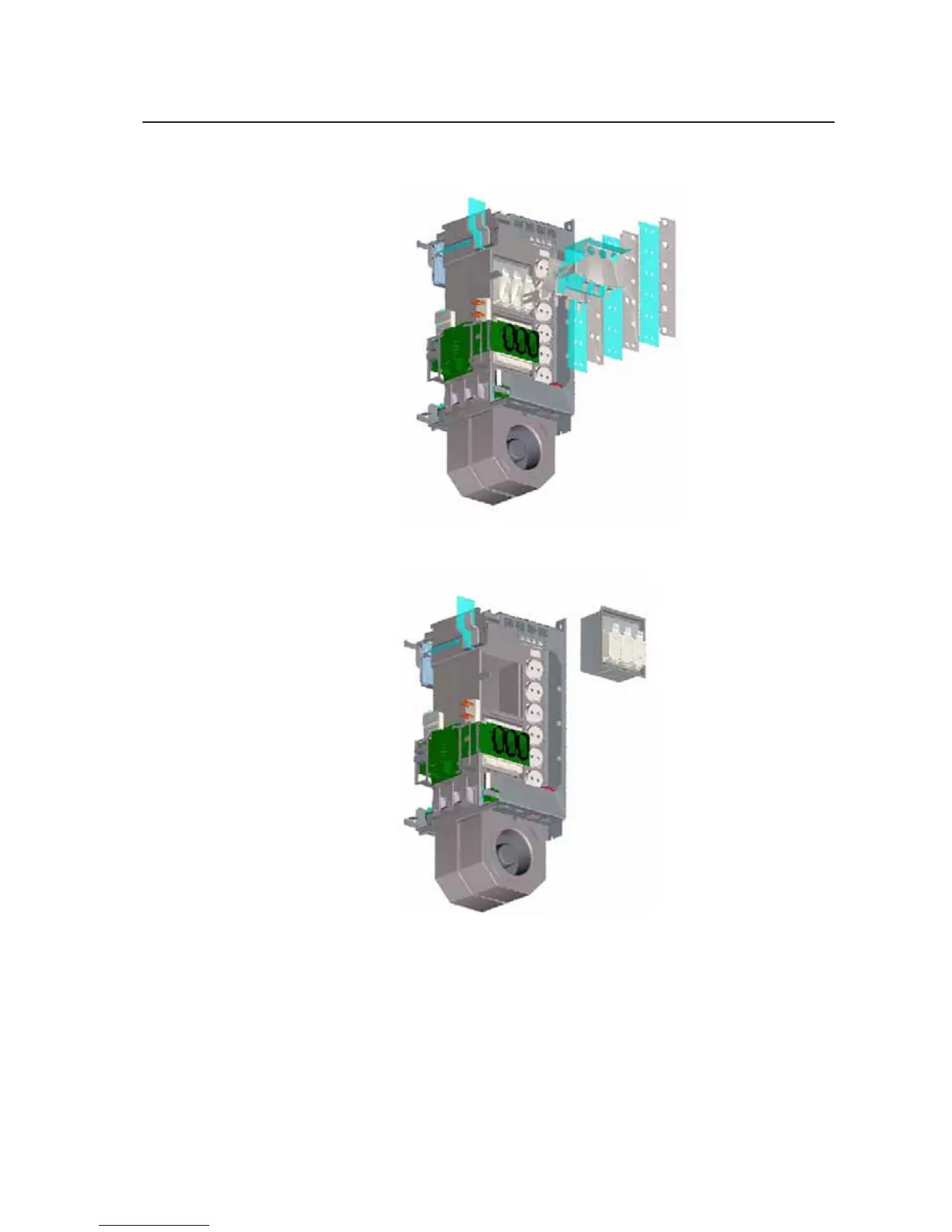

15. Remove the screws that secure DC bus bars to right side of power

structure and remove the DC bus bars.

16. Remove the screws that secure the Rectifying Module to the power

structure and remove the Rectifying Module.
