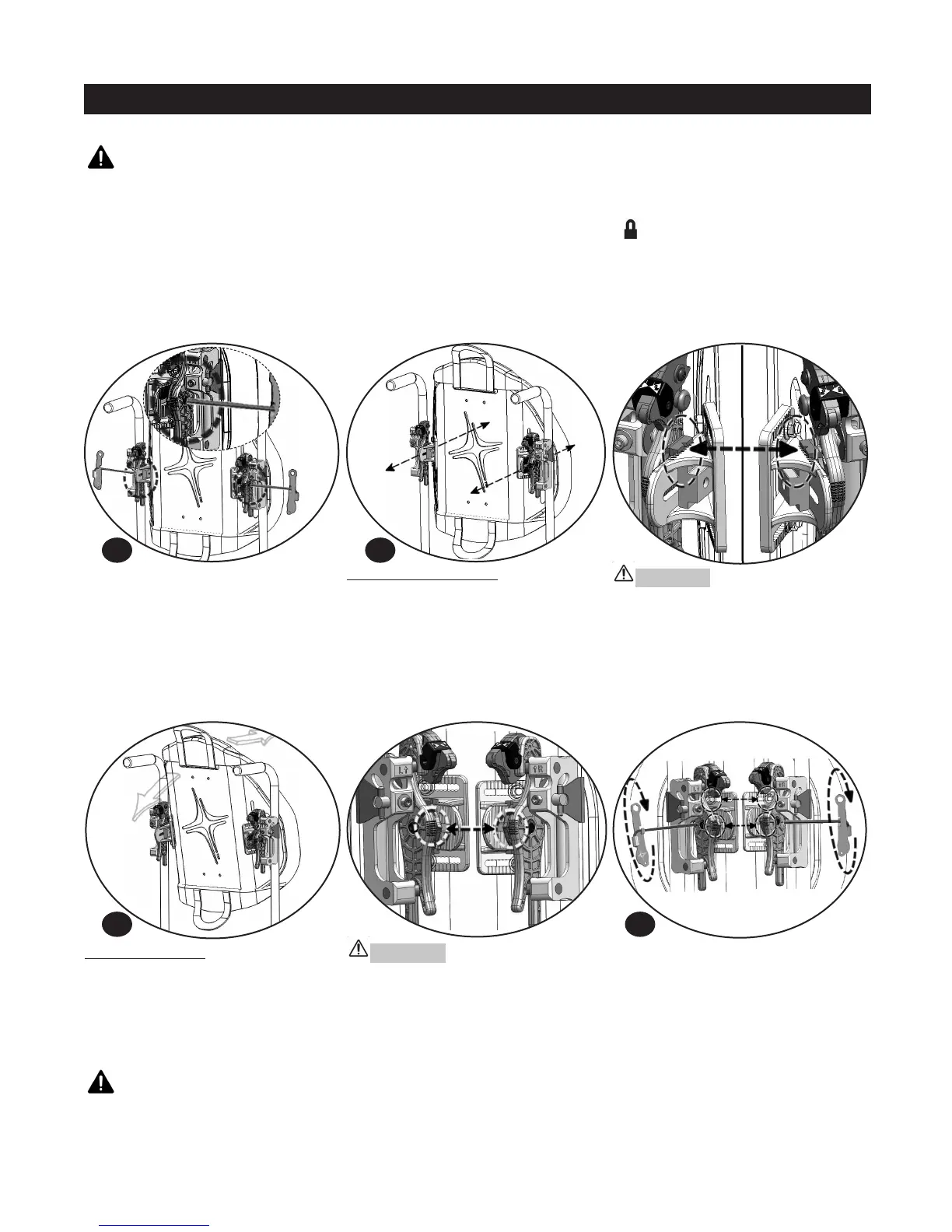

ROHO AGILITY - Depth and Angle Adjustment

- 12 -
TO ADJUST THE ANGLE: Pivot the back shell
back and forth until desired incline or decline
is achieved.
See WARNINGS at the top of this page.
Loosen the left and right depth and angle
adjustment bolts with the Allen wrench:
• 2 to 3 full rotations TO ADJUST THE SEAT
DEPTH
• 1 to 2 full rotations TO ADJUST THE ANGLE
only
DEPTH AND ANGLE ADJUSTMENT
TO ADJUST THE SEAT DEPTH: Slide the back
shell forward or backward to the desired
depth. Note: If triangle bracket will not slide,
see TROUBLESHOOTING.
WARNINGS:
Depth and angle adjustments can be made with the individual in the chair, if performed correctly and with caution. If the installer
finds it too difficult or unsafe to make depth and angle adjustments with the individual in the chair, have the individual transfer
safely out of the chair.
Make sure the wheelchair wheels are locked, the AGILITY safety locks are in the LOCKED ( ) position, and all hardware is tight
before the individual is seated in the chair.
DO NOT rotate the depth and angle adjustment bolts more than three (3) full rotations. If the depth and angle adjustment bolts are
over-rotated, components of the back shell hardware will begin to disassemble, preventing the bolt from being tightened securely.
Transfer the individual out of the chair immediately if over-rotation of the bolt occurs. Contact ROHO, Inc. for instruction on
re-assembly of the back shell hardware. See CONTACT INFORMATION.
WARNING: Once depth and angle adjustment is complete, make sure all hardware is securely tightened. Refer to appropriate
sections in this manual for recommended torque specifications. If individual is seated in the chair and depth and angle
re-adjustments are needed, see WARNINGS at the beginning of this section and re-adjust as necessary. Re-tighten all hardware
securely.
3
21
Note: AGILITY must be installed on the wheelchair before adjusting the seat depth and angle.
Hold the back shell in position. Tighten right
and left depth and angle adjustment bolts with
the Allen wrench until snug + one-quarter turn.
Note: If torque wrench available, tighten to 60
+/- 4 inch-pounds (7 +/- 0.5 Newton-meters).
4
IMPORTANT! Make sure the depth
positions on the left and right sides are
equal by comparing the markers on the top of
the triangle brackets.
IMPORTANT! Make sure the left (L) and
right (R) double hooks are rotated to the
same angle by comparing the markers on the
front of the double hooks.
