- 14 -
COVER COMPONENTS - INSTALLATION
TO INSTALL THE FOAM PAD:

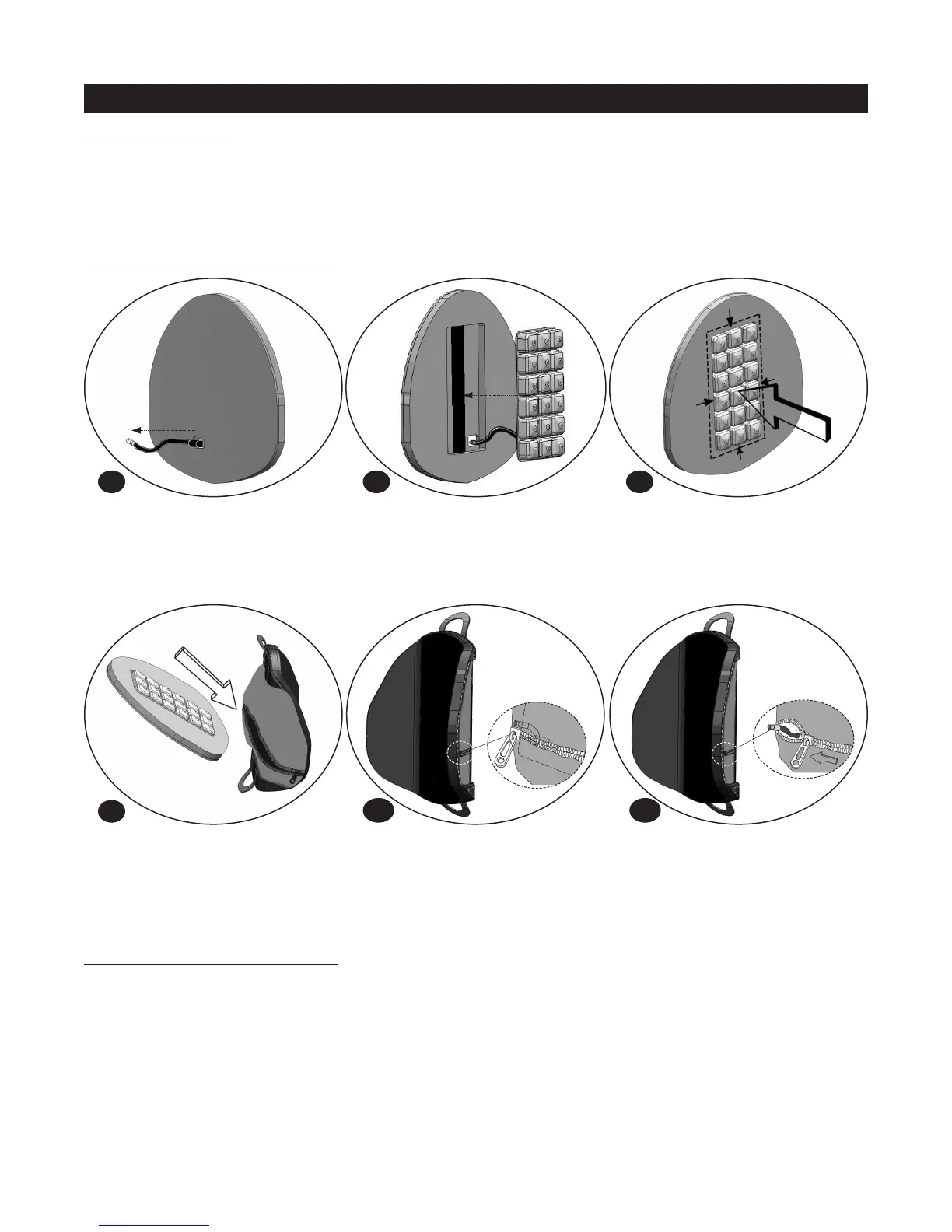

TO INSTALL THE FOAM PAD WITH AIR INSERT:
With the fabric back of the air insert facing
the cutout area of the foam pad, align the air
insert’s valve hose with the hole in the corner
of the cutout area. Slide the air insert’s valve
hose through the hole.
Place the air insert into the cutout area of the
foam pad.
Secure the fabric back of the air insert to the
fastener strip in the cutout area of the foam
pad.
Tuck the perimeter of the air insert between
the foam layers just around the edge of the
cutout area.
Unzip the cover and place the foam pad with
the air insert attached inside the cover.
Note: The air insert should be facing the front
of the cover. The wide and narrow ends of the
foam pad should be aligned with the wide and
narrow ends of the cover.
1. Unzip the cover and place the foam pad into the cover.
Note: The wide and narrow ends of the foam pad should be aligned with the wide and narrow ends of the cover.
2. Zip the cover closed.
3. Install the cover on the back shell.
1 2 3
4
5a
a. If adjustment of the air insert is NOT
needed:
Place the valve hose inside the zipper area.
Zip the cover closed.
Install the cover on the back shell.
b. If adjustment of the air insert is needed:
Partially zip the cover closed allowing access
to the valve.
Install the cover on the back shell.
See TO ADJUST THE AIR INSERT.
5b
TO INSTALL THE FOAM PAD WITH FOAM INSERT:
1. Align the fastener strip on the back of foam insert with the fastener strip in the cutout area on the front of foam pad and press together to
secure in place.
2. Unzip the cover and place the foam pad with the foam insert attached into the cover.
Note: The side of the foam pad with the foam insert should face the front of the cover. The wide and narrow ends of the foam pad should be
aligned with the wide and narrow ends of the cover.
3. Zip the cover closed.
4. Install the cover on the back shell.
