Roland EGX-350 User Manual

57
Chapter 4 Engraving

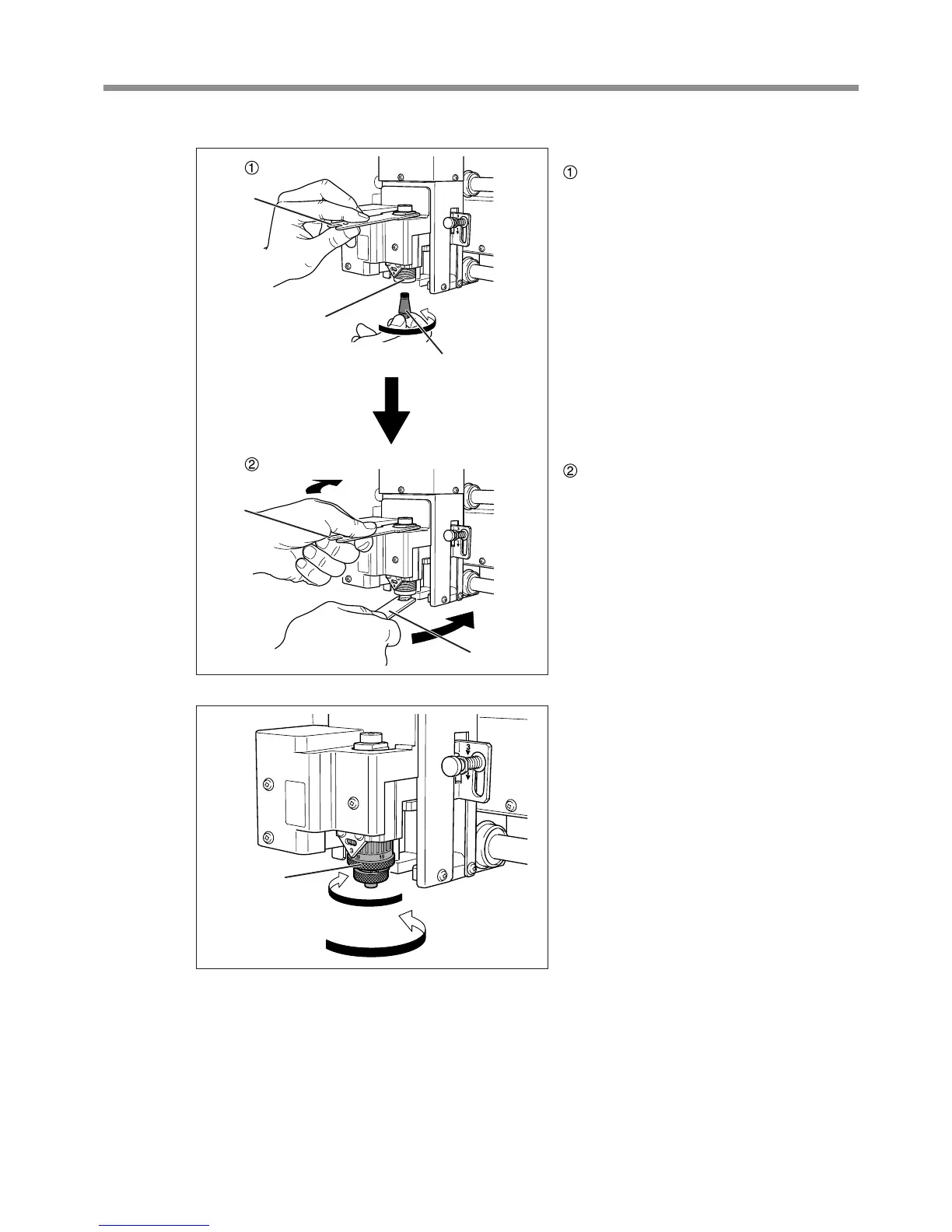

4-4 Cutter Installation Method 1 (With Nose Unit)

Install the solid collet.
Loosely tighten the solid collet.
Insert the solid collet into the spindle unit from
below, then, while holding the spindle unit im-
mobile with a wrench, tighten loosely.
Use an appropriate solid collet for the cutter’s
diameter.
Fully tighten the solid collet.
Using two wrenches, tighten the solid collet fully.
The appropriate tightening torque is 3.2 N-m
(32kgf-cm) .

Install the nose unit.
Tighten until no further movement is possible,
then loosen two turns.
 P. 61, “Important Notes When Using the Nose Unit”
Wrench
Spindle unit
Solid collet
Wrench
Wrench
Loose
Tighten
Nose unit

Roland EGX-350 Specifications

General

Drive System	Stepper motor
Interface	USB
Engraving Area	350 x 300 mm
Engraving Area (mm)	300 x 210 mm
Software Resolution (mm)	0.01 mm/step
Spindle Speed	7, 000 rpm
Power Supply	AC 100 - 240 V, 50/60 Hz
Acoustic Noise	65 dB (A) or less (when not cutting)
Operating Temperature	5 - 40 °C
Operating Humidity	35 to 80% (no condensation)
External Dimensions (mm)	680 x 580 x 430
