Names and Functions

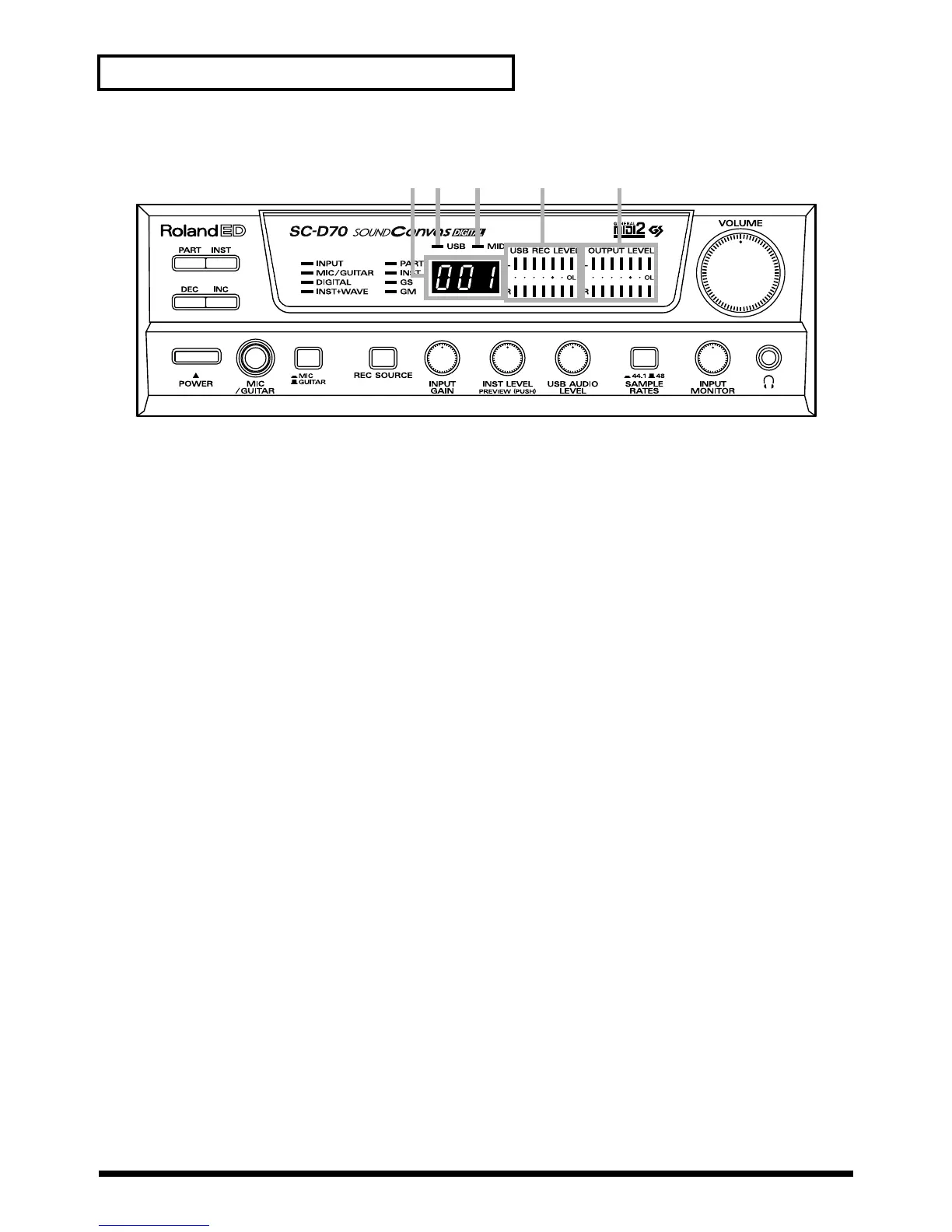

18. Display Window
This shows the current part number, instrument number, or variation
number.
19. USB Connection Indicator
In USB mode (p. 39), this will light when the SC-D70 is connected to
the computer via USB.
20. MIDI Indicator
This will light when the SC-D70 receives MIDI messages.
21. USB Recording Level Indicator
This shows the output level of the audio signals sent from the USB
connector to the computer.
22. OUTPUT Level Indicator
This shows the output level of the audio signal that is output from the
rear panel audio output jacks and digital output connectors.
