Recording
While actually sounding the recording source (i.e., talking or singing into the
microphone, or playing your guitar), operate the appropriate knob to adjust the
recording level.
If the USB recording level indicator lights all the way to the red segment, the input
level is too high. Use the appropriate knob to adjust the level so that the USB
recording level indicator goes as high as possible but without causing the red
segment to light.
■ About the level indicators
The SC-D70 has two level indicators: the USB recording level indicator and the
OUTPUT level indicator.

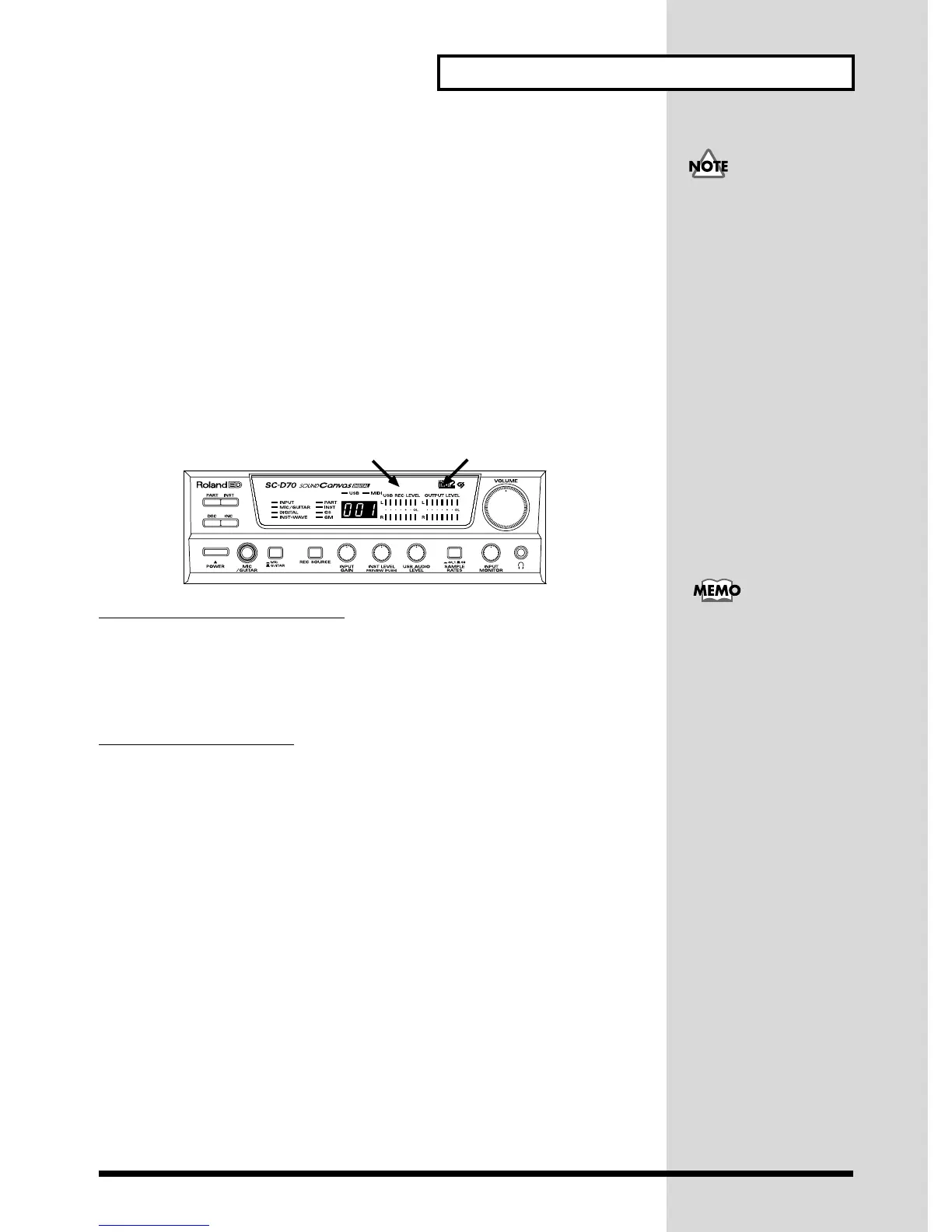

fig.22-12.e
USB recording level indicator
This shows the output level of the audio signal that is output via USB to the
computer. This is the level at which the selected recording source is mixed. When
recording on your computer, watch this indicator as you adjust the recording level.
OUTPUT level indicator
This shows the output level of the audio signal that is output from the audio output
2 jacks and the digital output connectors. Regardless of the recording source
selection, this will be the combined level of all recording sources. When recording on
an external audio device such as a stereo set or MD, watch this indicator as you
adjust the recording level.
If you use the output from
the headphones or audio
output jacks to adjust the
recording level, it may be
different than the level
actually recorded on your
PC, depending on the
position of the audio input
monitor level knob.
OUTPUT
Level Indicator
USB Recording
Level Indicator
The output level of the
audio signal from the audio
output 1 jacks and
headphone jack is adjusted
b
y the VOLUME knob.
