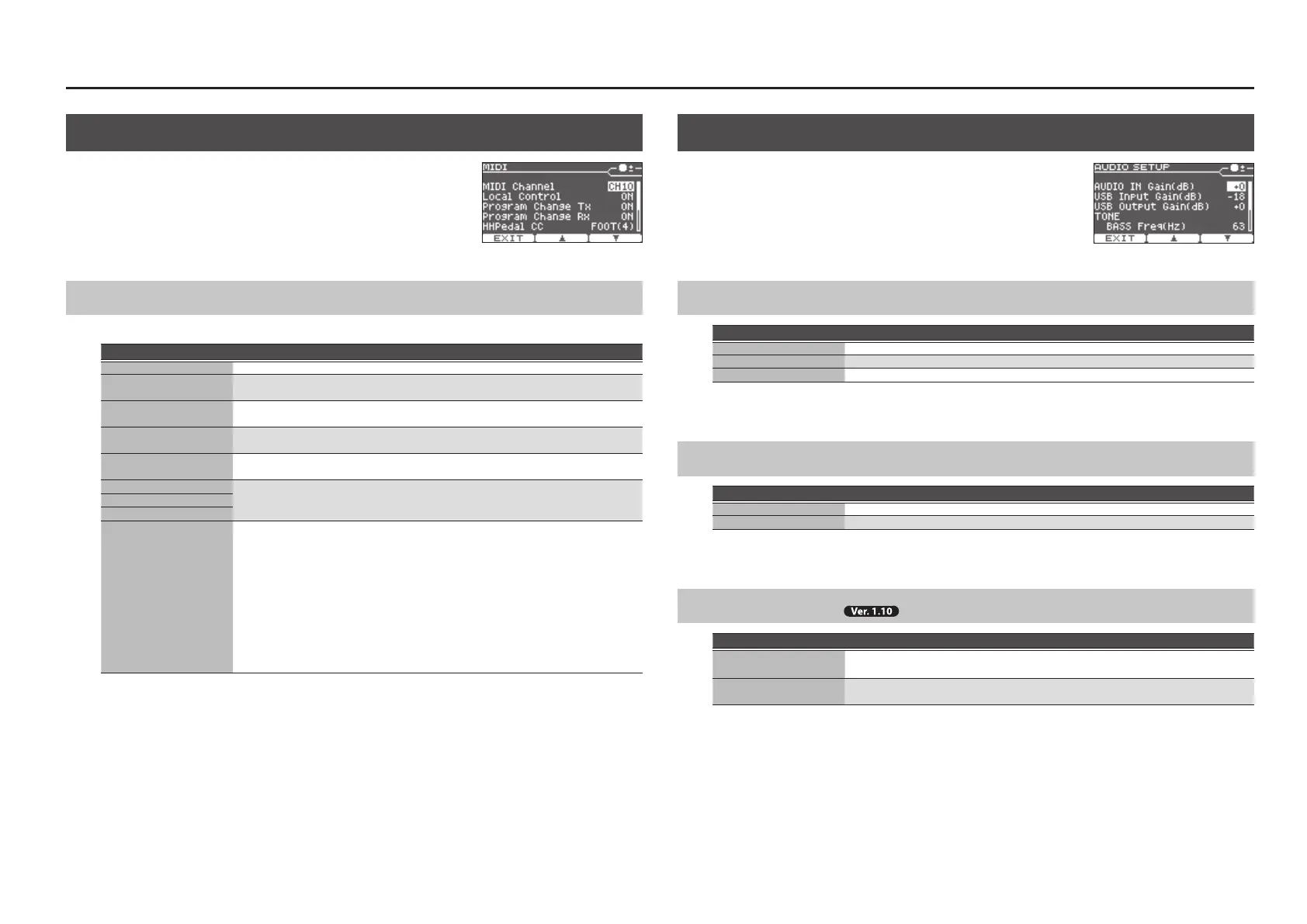

Roland TD-25 Parameter Guide

Setup
14
Audio
Adjusting the Volume of the AUDIO INPUT and USB
Parameter Explanation
AUDIO IN Gain (dB) Adjusts the volume of the AUDIO INPUT jack.
USB Input Gain (dB) Adjusts the volume of the sound received from the computer via USB audio.
USB Output Gain (dB) Adjusts the volume of the sound sent to the computer via USB audio.
Specifying the TONE Frequencies
Parameter Explanation
TONE BASS Freq (Hz) Species the frequency that is adjusted by the TONE [BASS] knob.
TONE TREBLE Freq (Hz) Species the frequency that is adjusted by the TONE [TREBLE] knob.
Audio REC Settings
Parameter Explanation
AUDIO REC Click Record
If this is “OFF,” the click is not recorded (Default: ON).
This is forcibly turned “OFF” if “Backing Record” is “OFF.”
AUDIO REC Backing
Record
If this is “OFF,” the backing sound is not recorded (Default: ON).
MIDI
MIDI-Related Settings
* These settings are shared by all of the drum kits.
Parameter Explanation
MIDI Channel Species the transmit/receive channel of the drum kit (Default: CH10).
Local Control
If this is “OFF,” the TD-25’s pads are disconnected from its internal sound generator.
Normally you will leave this “ON” (Default: ON).
Program Change Tx
If this is “ON,” a program change message is transmitted when you switch drum kits
(Default: ON).
Program Change Rx
If this is “ON,” program change messages can be received to switch drum kits
(Default: ON).
HHPedal CC
Control change used for transmitting/receiving the depth to which the hi-hat pedal
pressed.
Snare CC
Control change used for transmitting/receiving the strike position of the snare, ride, and
AUX.
Ride CC
AUX CC
HH Note# Border
This setting lets you transmit MIDI messages that are appropriate for the MIDI sound
module you’re using.
The note number transmitted when you strike the hi-hat will change depending on the
amount of pressure on the hi-hat pedal.
HH Note# Border allows you to adjust the pedal position at which the Control Change
message value switches from the open hi-hat to the closed hi-hat. As you monitor
the note number transmitted by the TD-25 and the Control Change message value,
adjust the setting until the note number is switched at the pedal position you want
(Default: 90).
* If you change the HH Note# Border setting, the actual hi-hat performance may not
match the playback of the recorded MIDI data.

Roland TD-25 Specifications

General

Metronome	Yes
Recorder	Yes
Outputs	Main Output (L/Mono, R)
MIDI	MIDI OUT
Type	Electronic Drum Module
Module	TD-25
Kick Pad	KD-9
Crash Cymbals	CY-12C
Ride Cymbal	CY-13R
Drum Kit Presets	25
Audio Inputs	1 (Stereo Mini)
Audio Outputs	Main Output (L/Mono, R)
Headphones	1
USB	USB MIDI
Trigger Inputs	9
Power Supply	AC adaptor (DC9V)
Inputs	Trigger Inputs, Audio Input
