4. Assembly and Ink Filling
15
Step 3: Installing the Media Holders
1.

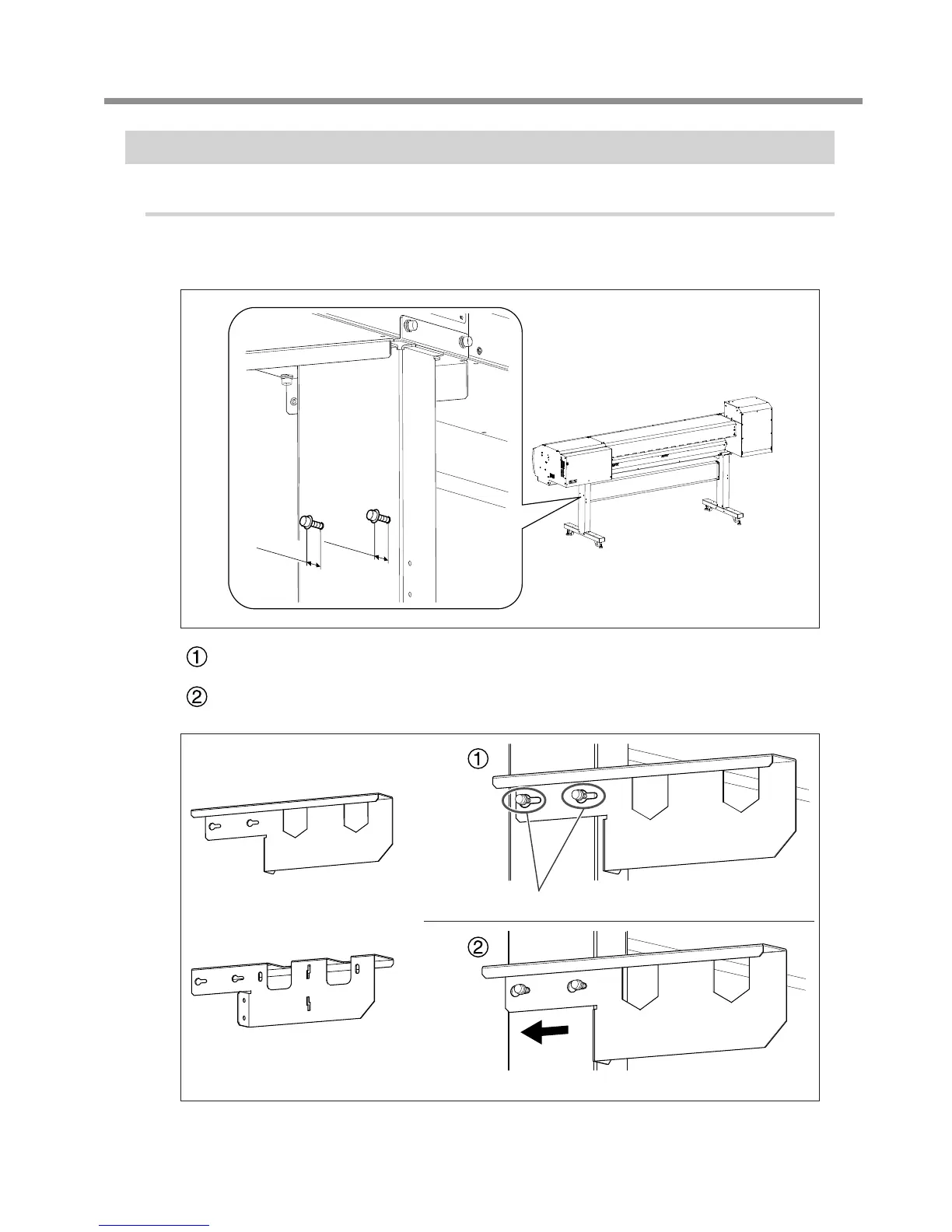

Attach the arms.
Temporarily tighten two bolts on the stand leg.
Tighten the bolts until they protrude by approximately 10 mm (0.4 in.).
Pass the temporarily tightened bolts through the slotted attachment holes of the arm.
The left arm and right arm are shaped dierently, so check the shape when attaching the arm to the leg.
Slide the arm in the direction indicated by the arrow to t the bolts into the slots.
Then, temporarily tighten the bolts.
10 mm
10 mm
Arm to attach to the left side as
seen from the rear of the machine
Pass the temporarily tightened bolts through these holes.
Arm to attach to the right side as
seen from the rear of the machine
Slide the arm in the direction indicated by the arrow.
To Next Page
