4. Assembly and Ink Filling
22
Step 5: Installing the Drain Bottle
Procedure

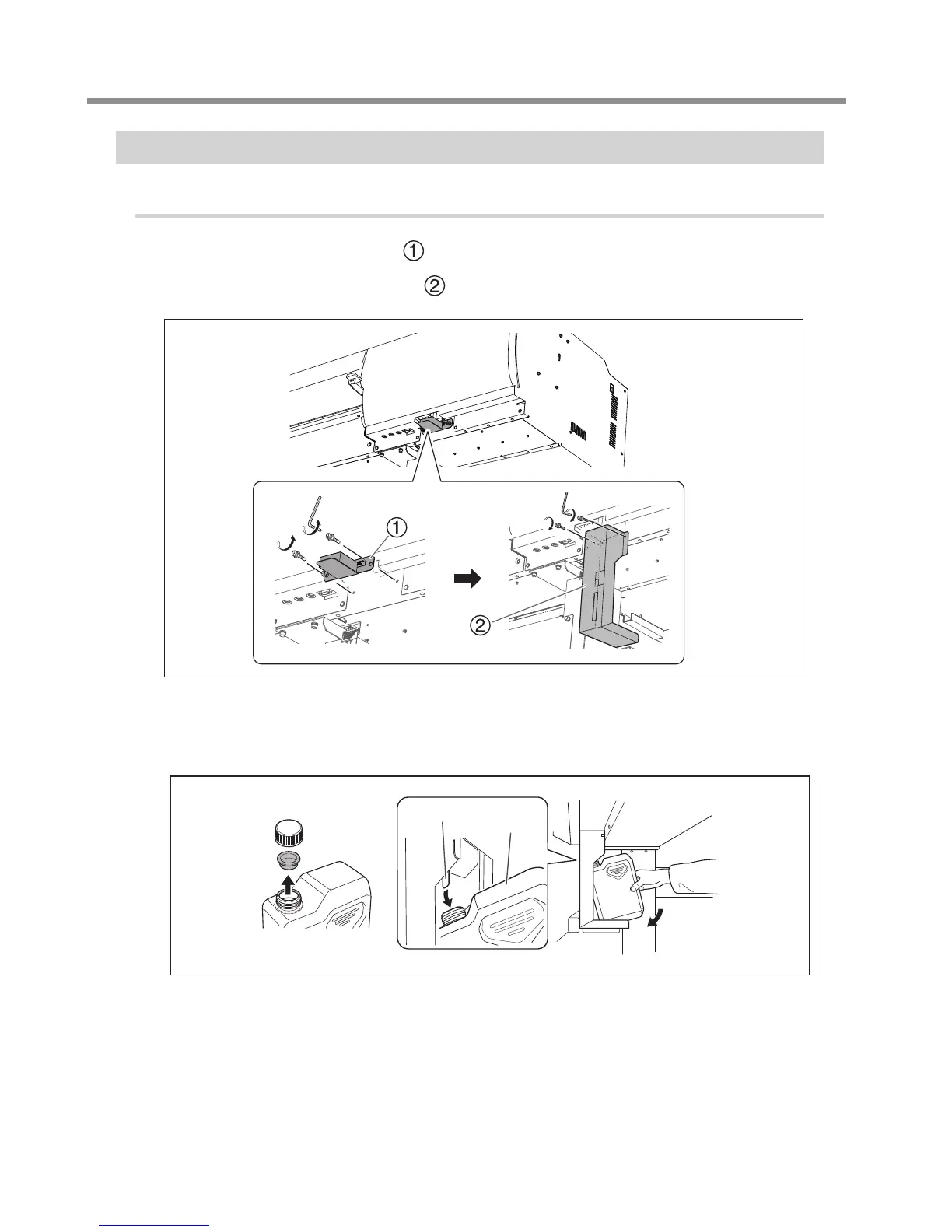

Remove the drain tube cover ( ).
Secure the bottle stand in place ( ).
Use the bolts that were securing the drain tube cover in place to secure the bottle stand in place.
w
Remove the drain bottle cap.
Store both the cap and the inner cap so that you do not lose them.
x
Install the drain bottle from the rear of the machine.
Drain bottle
Tube
