Rose electronics ORION - Figure 1. Orion Models; Orion Model Description

MODELS
Orion Installation and Operations Manual
5
Orion Model Description
FRONT VIEW
All models
REAR VIEW
Connectors
CATx
modules
Fiber
modules
CATx / Fiber
modules
1 or 2 IEC320
power inputs
32-RJ45F Inputs
16-RJ45F Outputs
1-RJ11F Network
1-RS232 Serial
1-USB Type B
1 or 2 IEC320
power inputs
32-Fiber LC type
Inputs
16-Fiber LC type
outputs
1-RJ11F Network
1-RS232 Serial
1-USB Type B

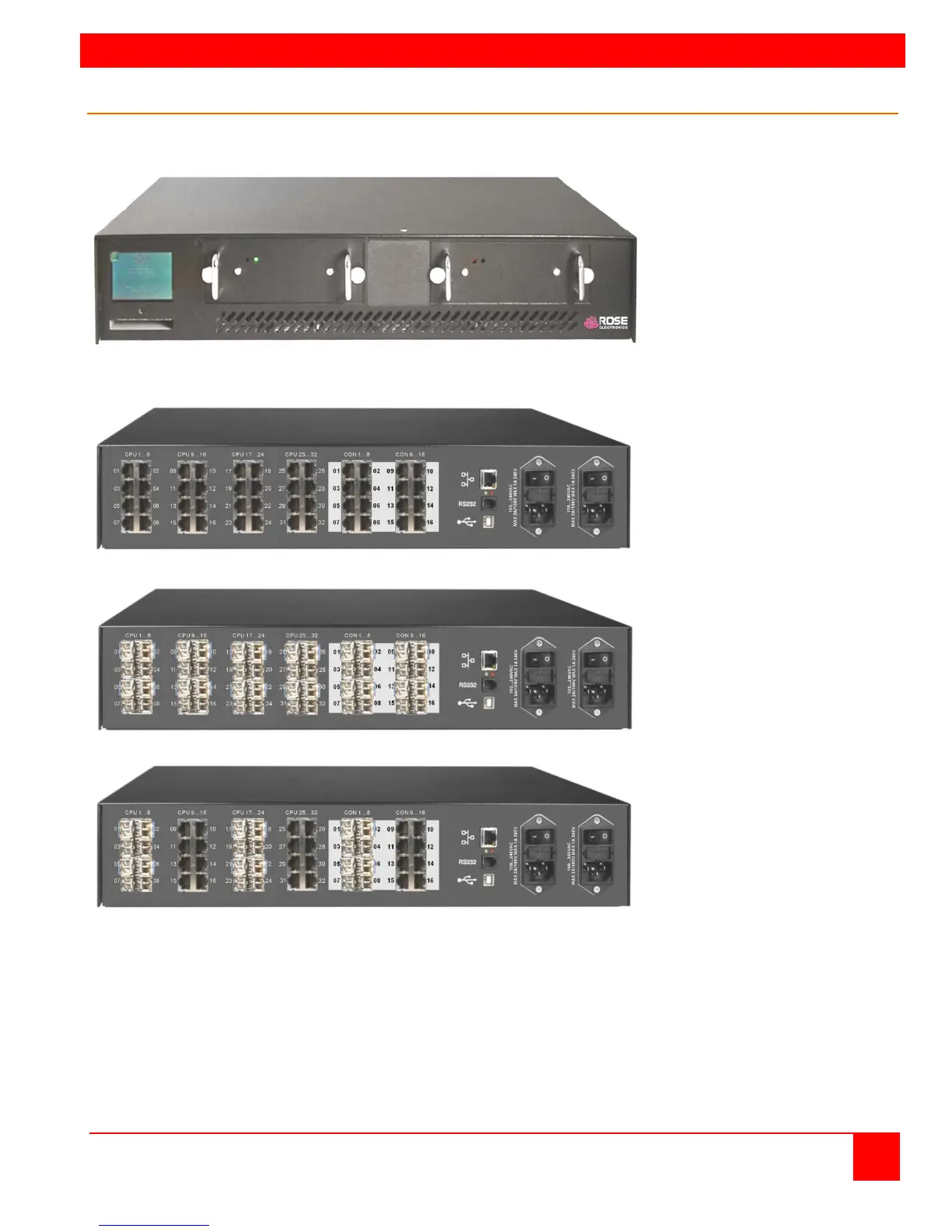

Figure 1. Orion Models
NOTE:
Models that have mixed CATx and Fiber modules should be used with care. A CATx CONx KVM station can not
connect to a fiber CPUx port or a fiber CONx KVM station can not connect to a CATx CPUx port. Remember,
connect only CATx to CATx and Fiber to Fiber.
Catx modules
(Singlemode or Multimode fiber modules)
CATx and Fiber modules
