Orion Installation and Operations Manual
13
Touch Screen settings
The Orion OSD supports touch screens.
NOTE: USB HID based Touch Screen protocols are supported.
Support of Vendor specific protocols only upon request.
To configure the touch screen feature, from the configure System menu, press the <F1> key. The touch screen
calibration window will display as shown in figure 8.

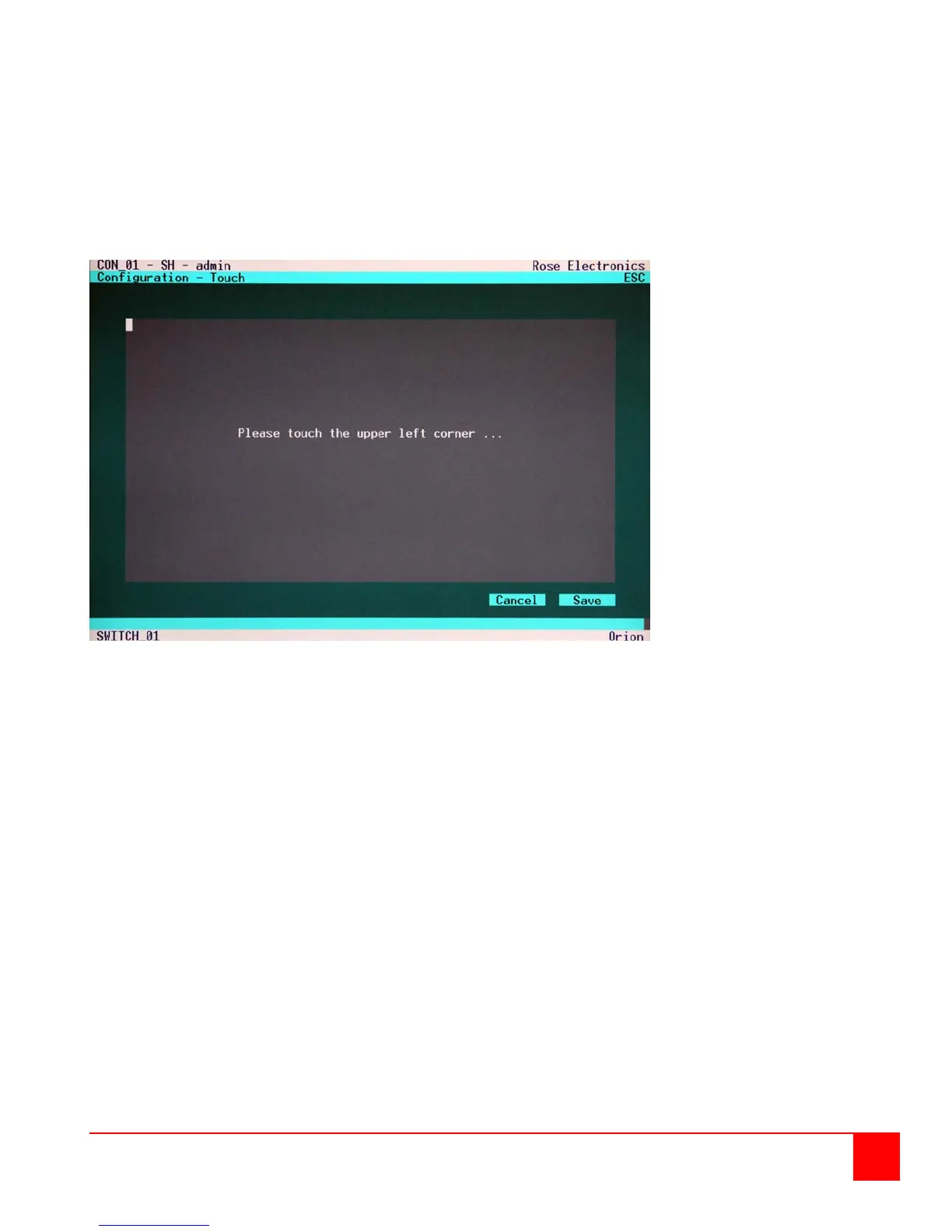

Figure 8. Touch screen calibration
On the touch screen calibration display, touch the upper left of the screen twice, then at the lower right.
test the calibration results and cancel or save the calibration.
This calibration is CON Port specific and must be repeated for each touch screen at its CON Port.
Touch Control
Control by touch is mostly similar to mouse control. Confirmation of a selection is performed by a second touch
instead of double click.
