CPU Port Configuration
Select the option “CPU Ports” in the “Configuration” menu and press <RETURN>.
The “CPU Ports” mask is displayed full screen as shown in figure 13.
This menu allows the administrator to define, for each CPU Port, the name, the type, and the connected CON Port.

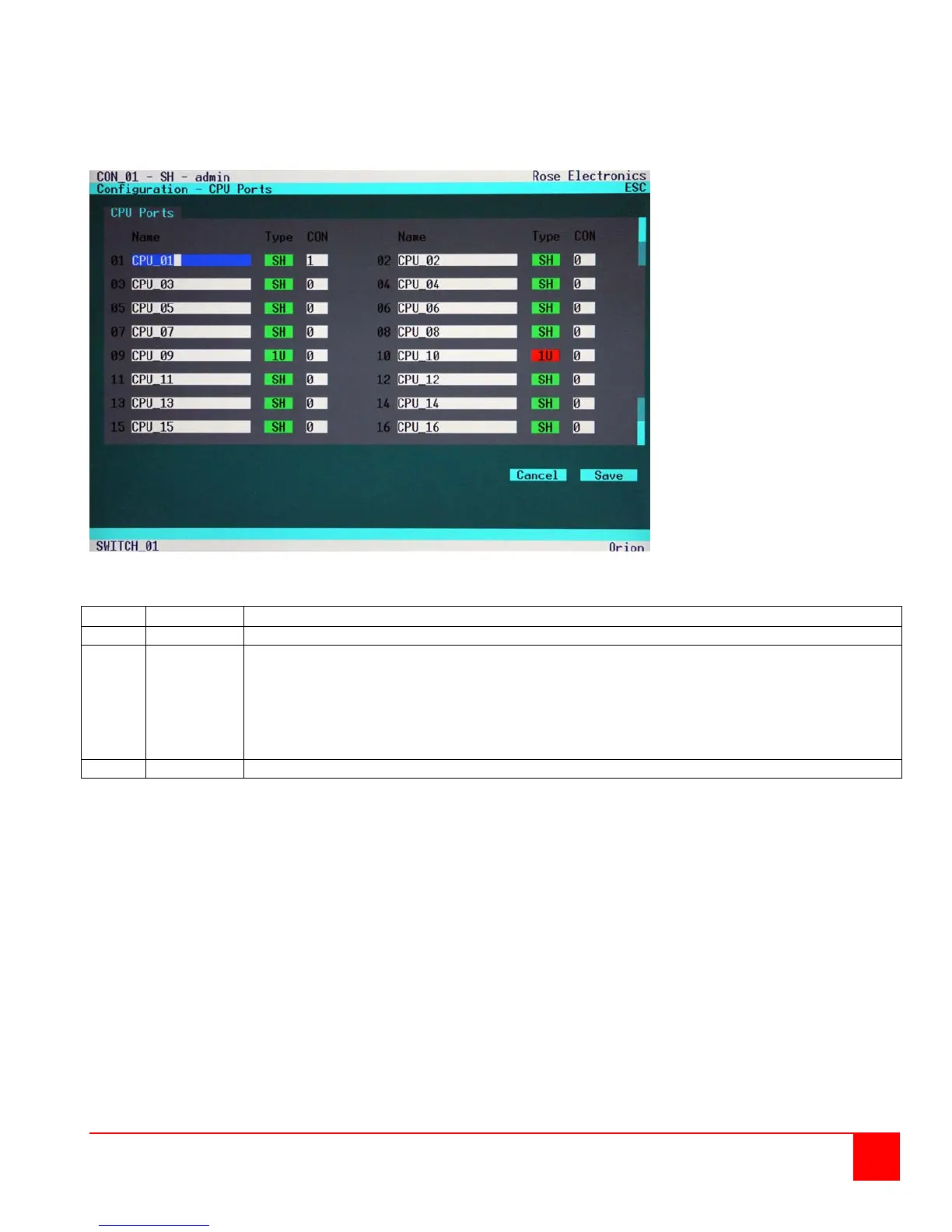

Figure 13. CPU Port Configuration
Field
Type
Description
Name
CHR16
Name of the CPU connected to this port
Type SELECT
SH = Single-Head Port
DH = Dual-Head Port
QH = Quad-Head Port
0U = USB 2.0 Port
1U = Single-Head Port with USB 2.0 Port
3U = Triple-Head Port with USB 2.0 Port
CON
VAL2
No. of CON Port connected to this CPU (Status) or to be connected by <SAVE>
