Orion Installation and Operations Manual
Configure system menu

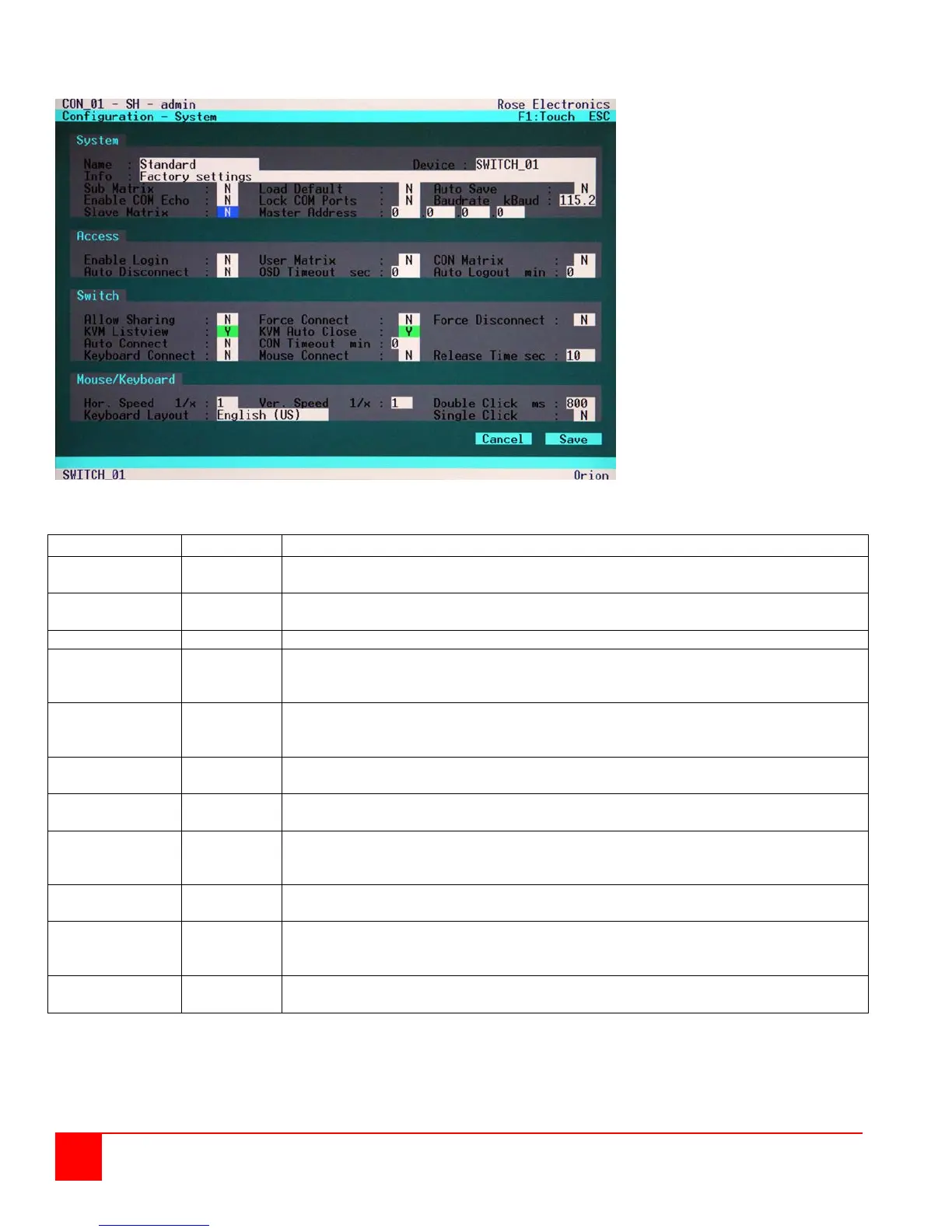

Figure 7. Configure System menu
System options
Field
Selection
Description
Name
16 Char.
(Input) Configuration name.
Used for saving the current configuration to file.
Device
16 Char.
(Input) Device name
(displayed in all menus at the lower left)
Info.
64 Char.
(Input) Detailed information about the current configuration
Sub Matrix
Y/N
Y – This switch is configured according to a master switch and remotely controlled
No configuration possible.
N – No slave mode
Load Default
Y/N
Y – Upon “Power On” or “Restart” the switch will boot with the Default
configuration.
N – Upon “Power On” or “Restart” the switch will boot with the last configuration.
Auto Save
Y/N
Y – Switch saves periodically the current configuration into flash.
N – No automatic saving
Enable
COM Echo
Y/N
Y – Switch sends echoes of all performed switch commands
N – No Echoes.
Lock
COM Ports
Y/N
Y – While an OSD is open, all commands via external interfaces are rejected
(LAN, serial).
N – No rejection
Baud rate
kBaud
Numerical
Value
Select a predefined Baud rate for the serial control port (default: 115.2 kBaud)
Slave Matrix
Y/N
Y - Allows a second Orion unit to automatically be switched to the same port as
the master unit
N – No synchronization
Master Address
IP Address
Assigned master unit IP address that secondary units will synchronize to.
(Entered on secondary unit’s OSD)
