1-7
MODEL 54 C SECTION 1
INSTALLATION

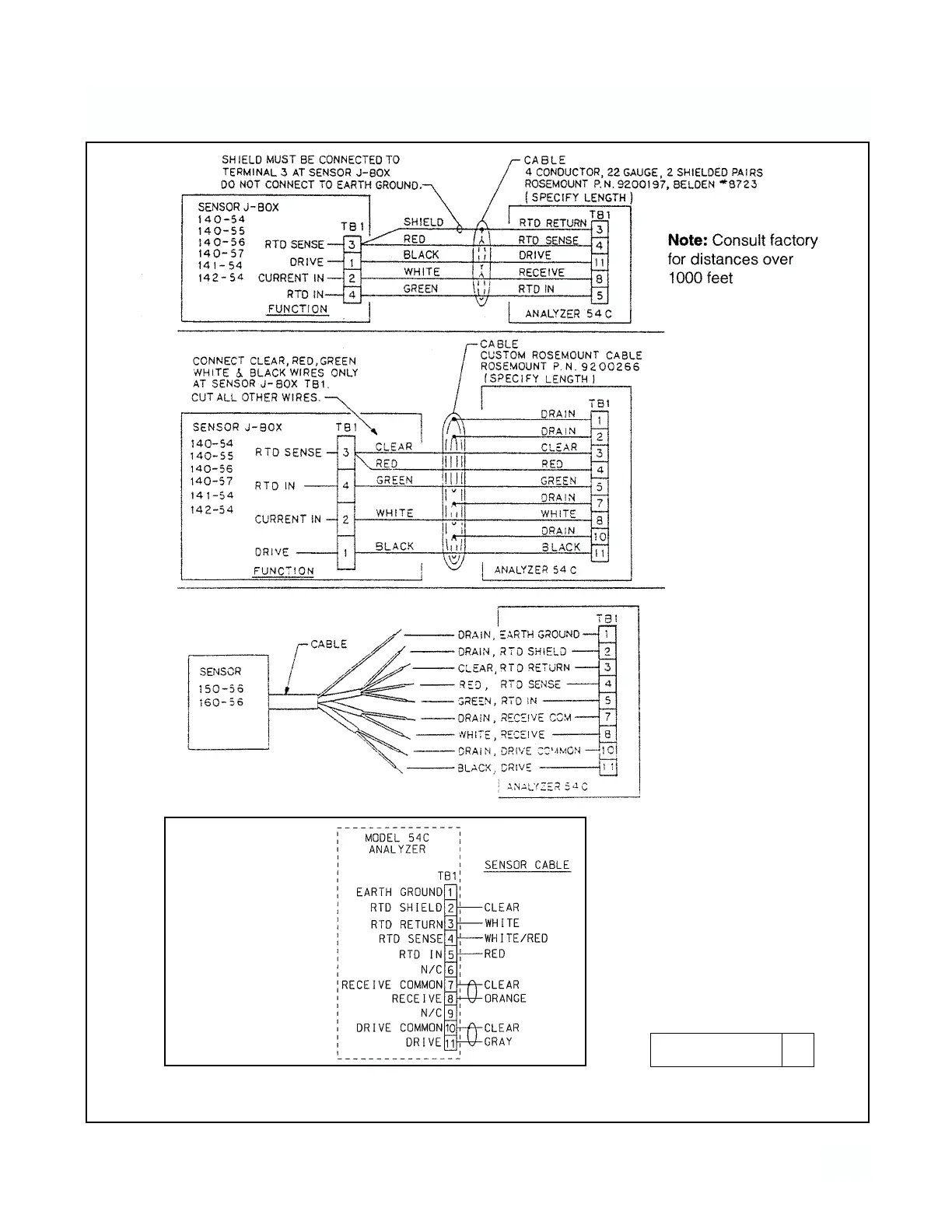

FIGURE 1-8. Wiring of Contacting Conductivity Sensors
DWG. NO. REV.
40054C02 B
ENDURANCE
MODEL 400 SERIES
WIRING
