6-1
MODEL 54 C SECTION 6
REPLACEMENT PARTS AND ACCESSORIES
SECTION 6.0
REPLACEMENT PARTS AND ACCESSORIES
INDEX PART
NO. NUMBER DESCRIPTION
1 23548-00 CPU Circuit Board
2 23710-00 Power Supply Circuit Board (115/230Vac) -Code -08
3 23537-00 LCD Display Circuit Board
4 23540-00 Front Panel Assembly
33281-00 Hinge Pin
33286-00 Front Panel Gasket
5 33542-00 Power Supply Circuit Board Shield- Code 08
6 33543-00 Half Shield
7 33293-00 Enclosure, Rear
8 33326-00 CPU Circuit Board Cover
9100173 Fuse
9 33328-00 Display Insulator

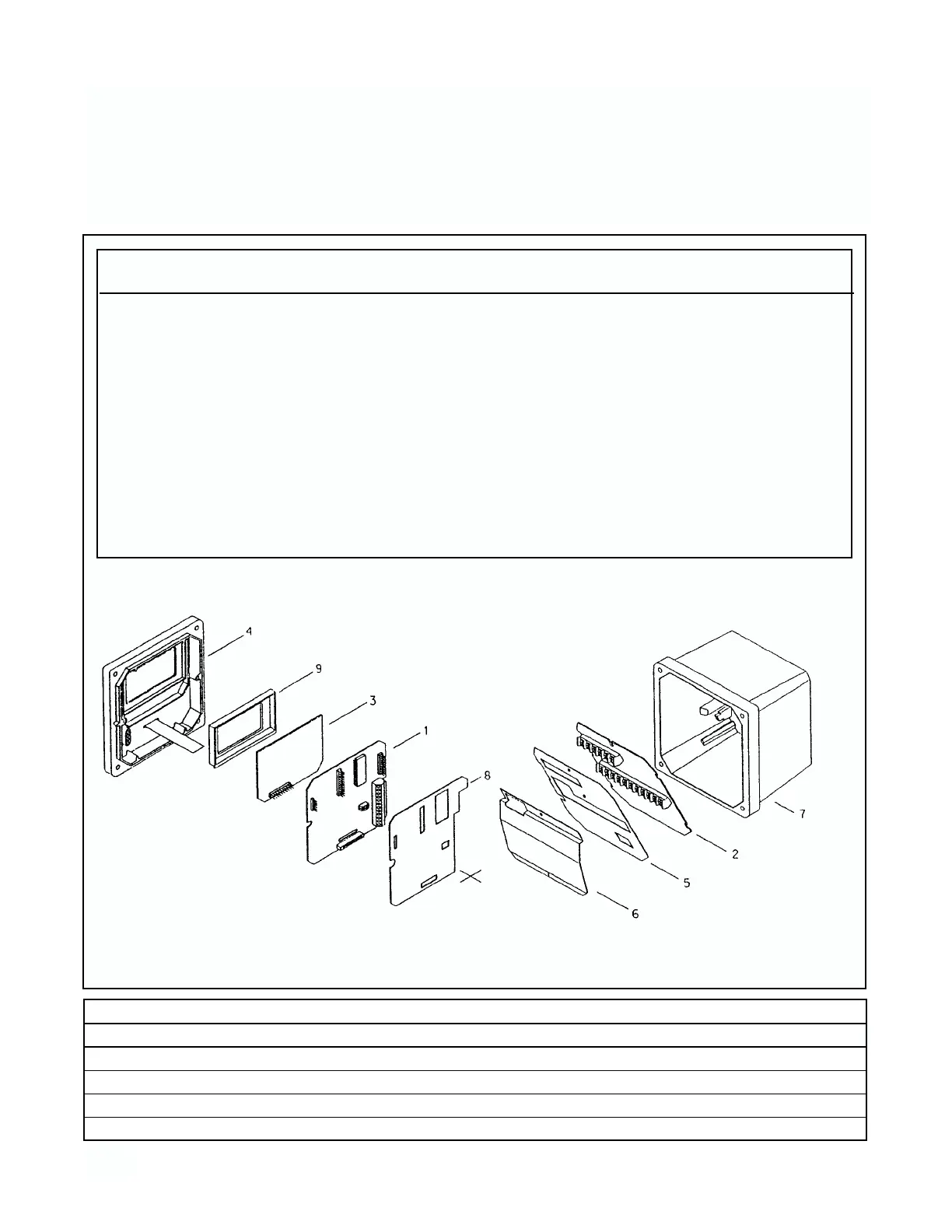

FIGURE 6-1. MODEL 54 C Analyzer, Exploded View.
ACCESSORIES
PART NO. DESCRIPTION
2002577 Mounting Bracket, 2 in. Pipe or Wall
23545-00 Panel Mounting Kit
23554-00 Gland Fitting Kit
9510048-00 Conduit Plug
Type of fuse: Time-lag type fuse (slo-blo)
Voltage Rating: 250 Volt
Current Rating: 100 milli Amp
