Rosemount 1054B - Wall Mounting J-Box Wiring Diagram

MODEL 1054B pH/ORP SECTION 2.0
INSTALLATION
8

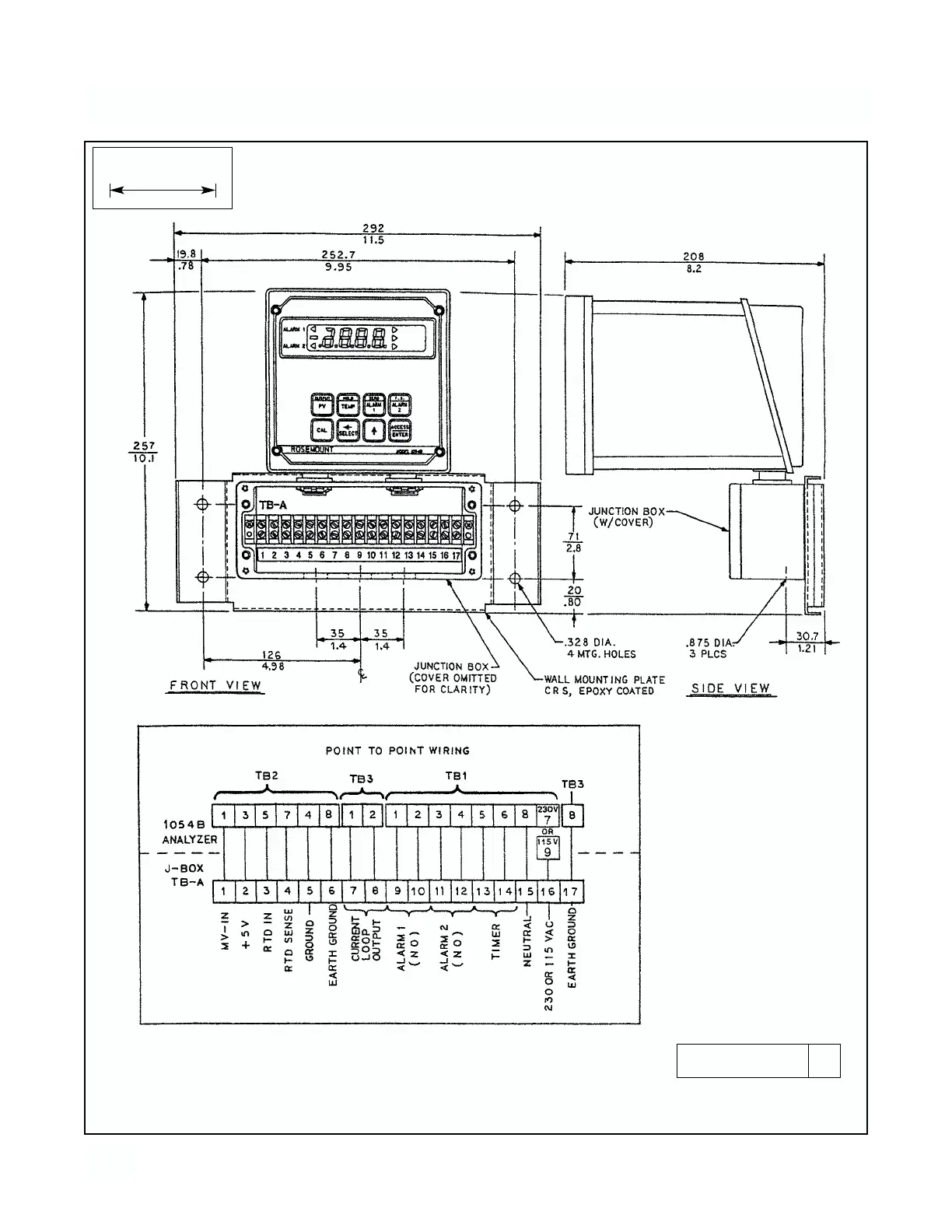

FIGURE 2-4. Wall Mounting J-Box Wiring
DWG. NO. REV.
41054B13 B
WHEN INCH AND METRIC DIMS
ARE GIVEN
MILLIMETER
INCH
