Rosemount Model 3144 and 3244MV Smart Temperature Transmitters
2-10
Circuit Side of Electronics
Housing
Mount the transmitter so that the circuit side is accessible. Be sure to
provide adequate clearance for cover removal. Also, be sure to account
for extra room if an LCD meter is installed. Refer to Section 6: Options
for more information on the LCD meter option.

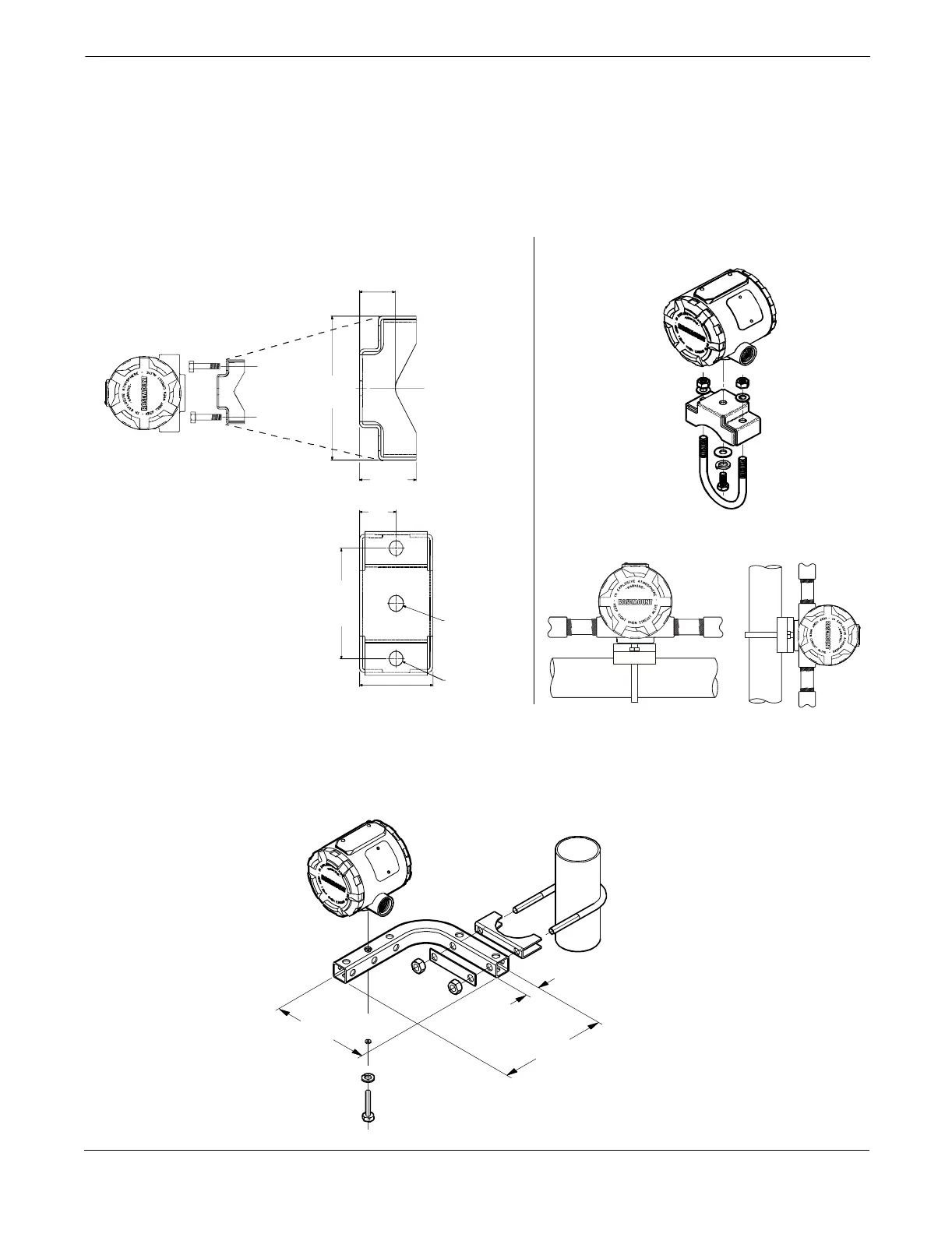

Figure 2-8. Option Code B4 Mounting
Bracket.
Figure 2-9. Option Code B5 Mounting
Bracket.
3.65 ±0.06
1.0
1.55
(39.4)
2.81 ±0.03
(71.4)
0.375 (9.5)
Diameter
(2)
5
/16-inch Bolts not provided
PANEL MOUNT
2.0 ± 0.03
(50.8)
PIPE MOUNT
0.41 (10.4)
Diameter
1.04 (26)
(25.4)
2-inch
Pipestand
NOTE
Dimensions are in inches (millimeters).
3144-3144A14A, 0000A01A; 3044-2101A01A; 3144-1081A01B
1.0 (25)
6.4 (163)
7.2 (182
3144-0427B, 0427C
