Rosemount Models 3144 and 3244MV Smart Temperature Transmitters
5-8
TRANSMITTER
DIMENSIONAL DRAWINGS

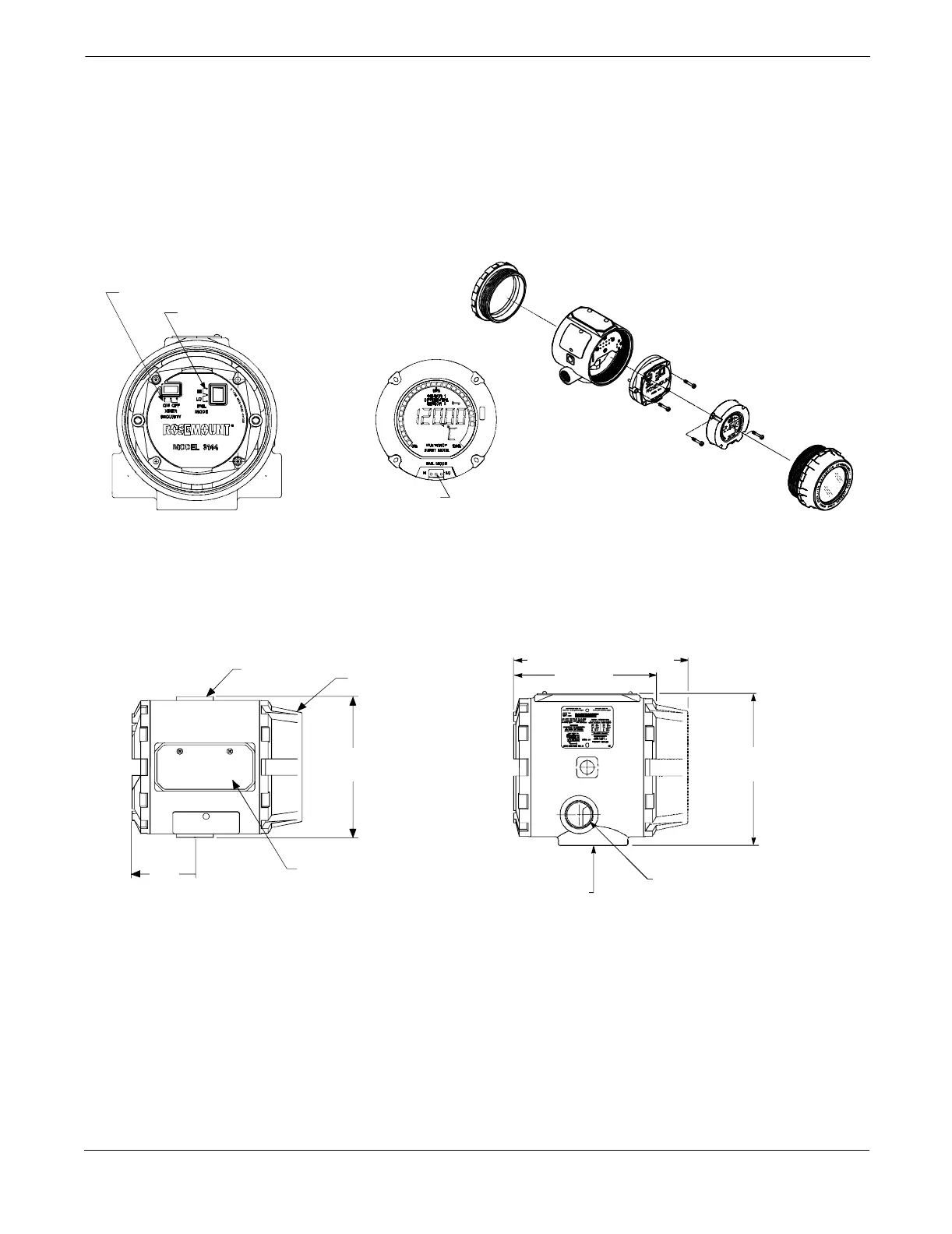

Figure 5-1. Transmitter Exploded View,
Jumper Locations, and Meter
Faceplate.
Figure 5-2. Transmitter Dimensional
Drawings.
LCD Meter
Electronics
Module
Nameplate
Meter
Cover
Cover with Wiring
Diagram Label
Failure Mode Jumper
(with a Meter Installed)
Housing with
Permanent
Terminal Block
Security Jumper
Failure Mode Jumper
(without a Meter Installed)
3144-0001B01B, 2352A01D, 0000A03B
NOTE
Dimensions are in inches (millimeters).
2.0
(51)
5.2 (132) with LCD meter
4.4 (112)
Conduit Entry
3
/8–16
UN–2B
Label
Conduit Entry
Meter Cover
TOP VIEW
SIDE VIEW
4.4
(112)
4.4
(112)
3144-0204B02A, 0000A07A
