5-9
Specifications and Reference Data

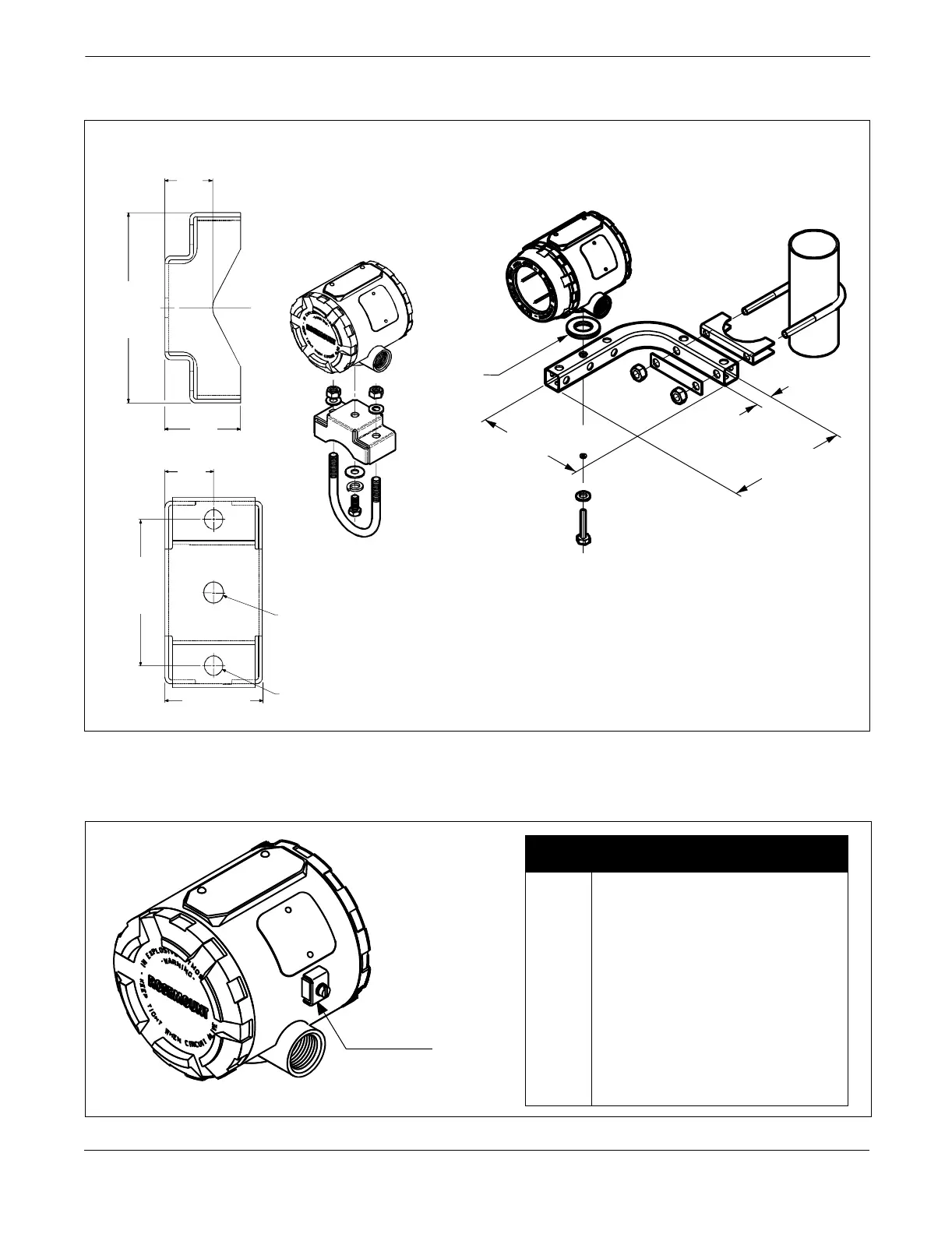

Figure 5-3. Optional Transmitter
Mounting Brackets.
Figure 5-4. Option Code G1 External
Ground Lug Assembly Installed on the
Transmitter.
1.04
(26)
1.55
(39)
1.0
(25)
2.81
±0.03
(71)
0.41 (10)
Diameter
0.375 (10)
Diameter
(2 Places)
2.0 ± 0.03
(50)
NOTE
Dimensions are in inches (millimeters).
3.65
±0.06
(92)
OPTION CODE B4 BRACKET OPTION CODE B5 BRACKET
1.0 (2.5)
7.15 (181.6)
6.4 (162.6)
3044-2101A01A; 3144-3144A14A, 1081A01A
2(51)
Diameter
Washer
(Provided)
External
Ground Lug
Assembly
3144-0204A02A
Approval
Type
Ground Lug Included?
E5 No—Order Option Code G1 for ground lug.
K5 No—Order Option Code G1 for ground lug.
C6 No—Order Option Code G1 for ground lug.
NA No—Order Option Code G1 for ground lug.
E9 Yes—2groundlugs,1fortheclamp
N1 Yes—1groundlug
I1 Yes—1groundlug
E7 Yes—1 ground lug
N7 Yes—1groundlug
I7 Yes—1groundlug
IE Yes—1groundlug
E4 Yes—2groundlugs,1fortheclamp
