B-5
Model 275 HART Communicator

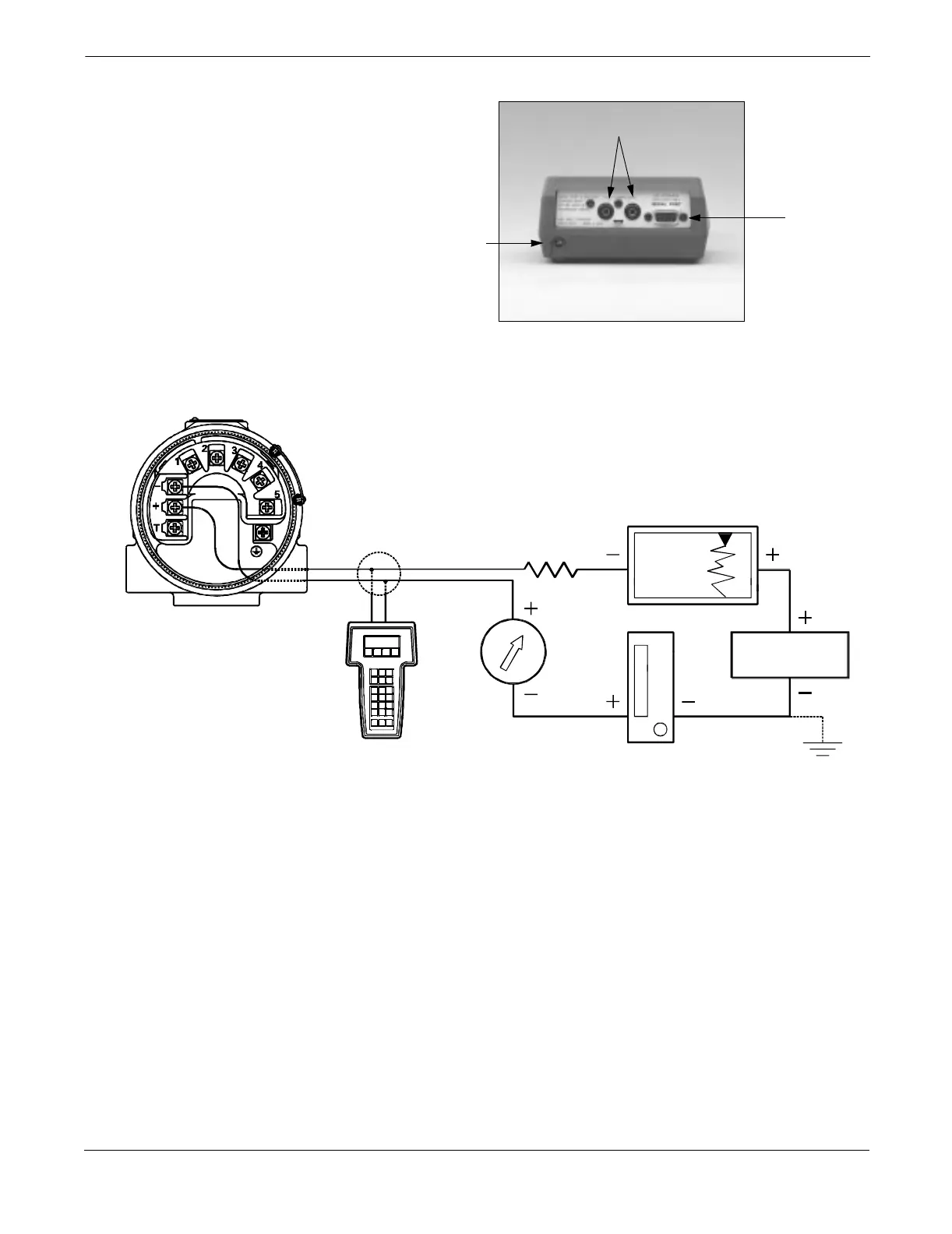

Figure B-2. Rear Connection Panel
with Optional NiCad Recharger Jack.
Figure B-3. Connecting the Model 275
to a Transmitter Loop.
Loop Connection Ports
Optional NiCad
Recharger Jack
Serial Port
275-008AB
Power/Signal Terminals
Signal loop may be grounded at any point
or left ungrounded.
Power
Supply
250 V
≤ R
L
≤ 1100 V
A HART communicator may be
connected at any termination point in
the signal loop. Signal loop must have
between 250 and 1100 ohms load for
communications.
3144-0200H01A, 268-1151F05C
