Pumpenbetrieb vom Fahrerhaus aus
Pump Operation from Driver´s Cabin
SF2
SF3
SF4
SF1
111 113
S316

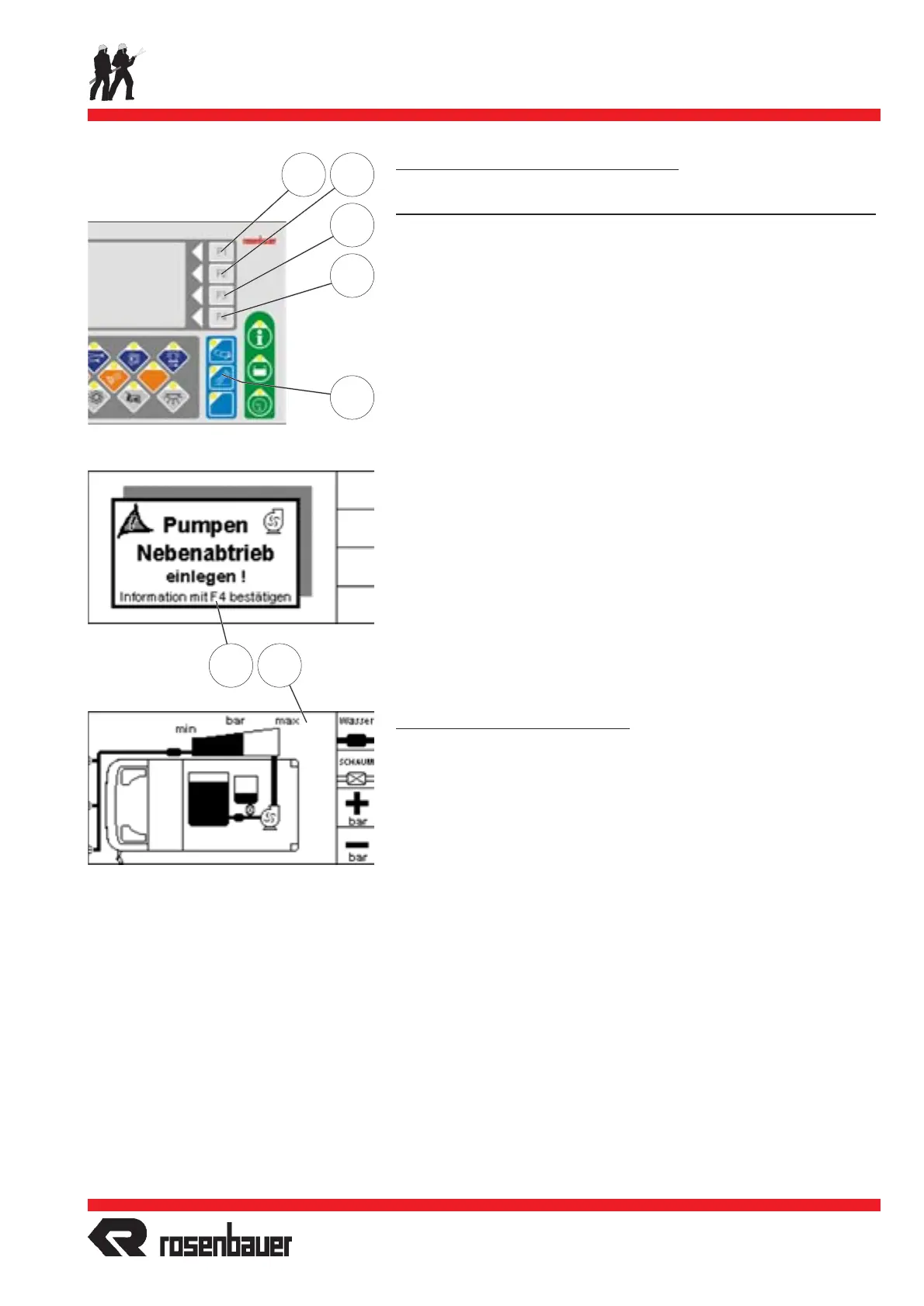

Pump Operation from Driver´s Cabin
Water or water/foam operation with street sweeping installation
- Engage the pump - see "Engaging the Pump".
- The water tank suction valve opens automatically.
- The priming pump engages automatically and stays on until a
pressure of 2 bar is reached.
- Press switch (S316): **
◊ The sub-menu (113) will be displayed.
- Open the valve for the street sweeping nozzles:
◊ Press switch (SF1).
- Pressure is increased by pressing switch (SF3) and decreased
by switch (SF4), or using the foot throttle.
◊ Screen (112) shows the pressure of system, the level of the
tanks as well as a schematic diagram of the piping.
- For discharging foam, press switch (SF2), this opens the foam
compound tank suction valve and water/foam mixture is given
to the street sweeping nozzles.
Finishing with turret discharge
- Press switch (SF2) to close foam compound tank suction valve.
- Bring rpm down to idle.
- Press switch (SF1).
** If the P.T.O. is not engaged, screen (111) will be shown,
asking the operator to engage the P.T.O. which is described under
"Engaging the Pump".
Only after the pump registers a pressure above 2 bar, does the
screen change from (111) to (113).
As an option the street sweeping pipe can be lowered and swivelled
pneumatically.
- By using the corresponding switches (SF1-SF5) the street
sweeping pipe can be lowered and swivelled.
◊ Press corresponding switch(es) (SF_).
