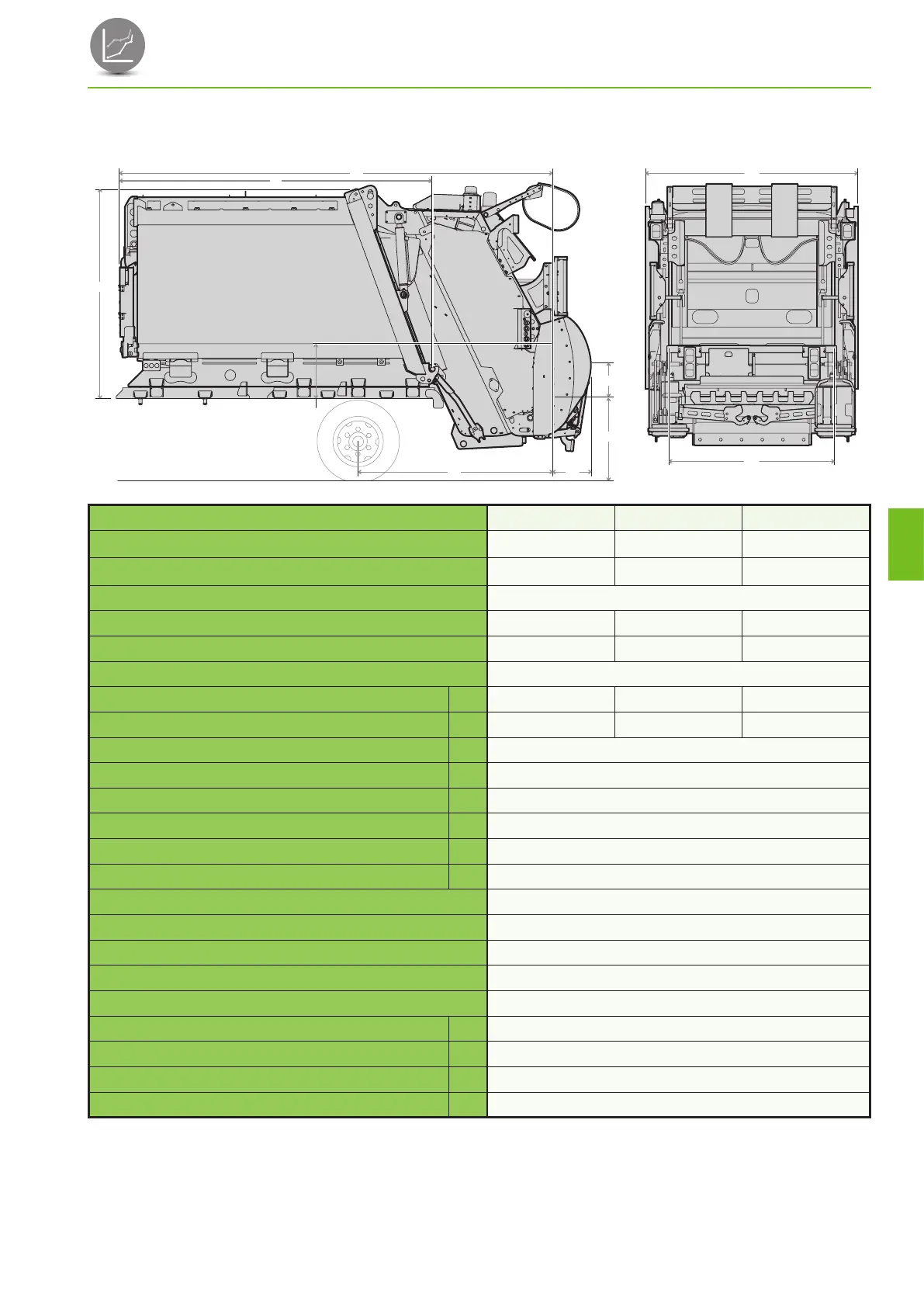

RosRoca Olympus Mini - Dimensions

GENERAL SPECIFICATION DATA
8‑5
OM1R-SM-GB01R
8.6 Dimensions
4698-OM1-R-GB-G1
W1
H2
H6H6
H7H7
H5
W1
W1W2
L2
L1L1
H2
L2
H5
L4L4L3L3
Model OL-MINI-6 OL-MINI-7 OL-MINI-8
GVW chassis (TN) (1)
7,5 ‑ 8 8,5 ‑ 9
10
Recommended wheelbase
2700 ‑ 2900 3100 ‑ 3350
3500 ‑ 3800
Recommended chassis height (mm)
700‑800
Body useful capacity (m
3
)
6 7 8
Body weight open back (Kg)
3040 3134 3219
Footboards and holders (Kg)
110
Body floor length (mm)
L1 2915 3315 3715
Overall length – without lifter (mm)
L2 4030 4430 4830
Maximum overhang – without lifter (mm)
L3 1975
Body height included sub-frame (mm) (2)
H2 1900
Rave rail height vs chassis height (mm) (3)
H6 405
Height from chassis base to the platform (mm) (3)
H7 200
Maximum external width (mm)
W1 2000
Tailgate internal width without bin-lifter (mm)
W2 1600
Hopper volume (m
3
)
1
Packing surface pressure (kg/cm
2
)
2,3
Compaction mechanism cycle time (s)
15
Absortion speed (m
3
/min)
2,5
Lifter
Bar Lifter
Lifting capacity (Kg)
500
Lifter weight including DIN arms (Kg)
250
Lifter overhang (mm)
L4 360
Lifter comb height (mm). For recom. Chassis height.
H5 820 ‑ 875
Note: Unless otherwise stated, all dimensions are nominal, in mm and represent an unladen vehicle without
a waste container lifting device and fitted with standard tyres; tyre deflection is not included. On vehicles
equipped with optional air suspension, heights may differ. All specifications are subject to manufacturers
tolerances. Additional equipment may alter dimensions quoted.
