SCHEDULED MAINTENANCE
6‑6
OM1R-SM-GB01R
6.7 Lubrication
1. Immobilise the vehicle (see ‘1.2 Immobilising
the vehicle prior to service procedures’ on page
1‑3).
2. Remove the bolts securing the bottom of the
packer plate pivot cover plates. Loosen the top
bolts and open each cover (see Fig. 6‑1, A).
3. Start the engine.
4. Energise the compaction mechanism control
panels.
5. Press and release the ‘Start pack cycle’ push‑
button.
WARNING:
DO NOT PUT FINGER IN ACCESS HOLE.
6. When the grease nipple (see Fig. 6‑1, 1) is visible in
the access hole, press an ‘Emergency stop’ push‑
button.
7. Reset the ‘Emergency stop’ push‑button.
8. If the vehicle is fitted with a waste container lifting
device operate the ‘Lifting device up’ push‑button
until the lifting device reaches full height.
9. Immobilise the vehicle (see ‘1.2 Immobilising
the vehicle prior to service procedures’ on page
1‑3).
10. Clean the carriage plate/packer plate bearing
grease nipples (2 off) (see Fig. 6‑1, 1) and lubricate
with Fuchs Renolit Aqua 2 grease or similar
lubricant to DEF STAN 91‑34/1.
A
1
4695-OM1-R-GB-G1

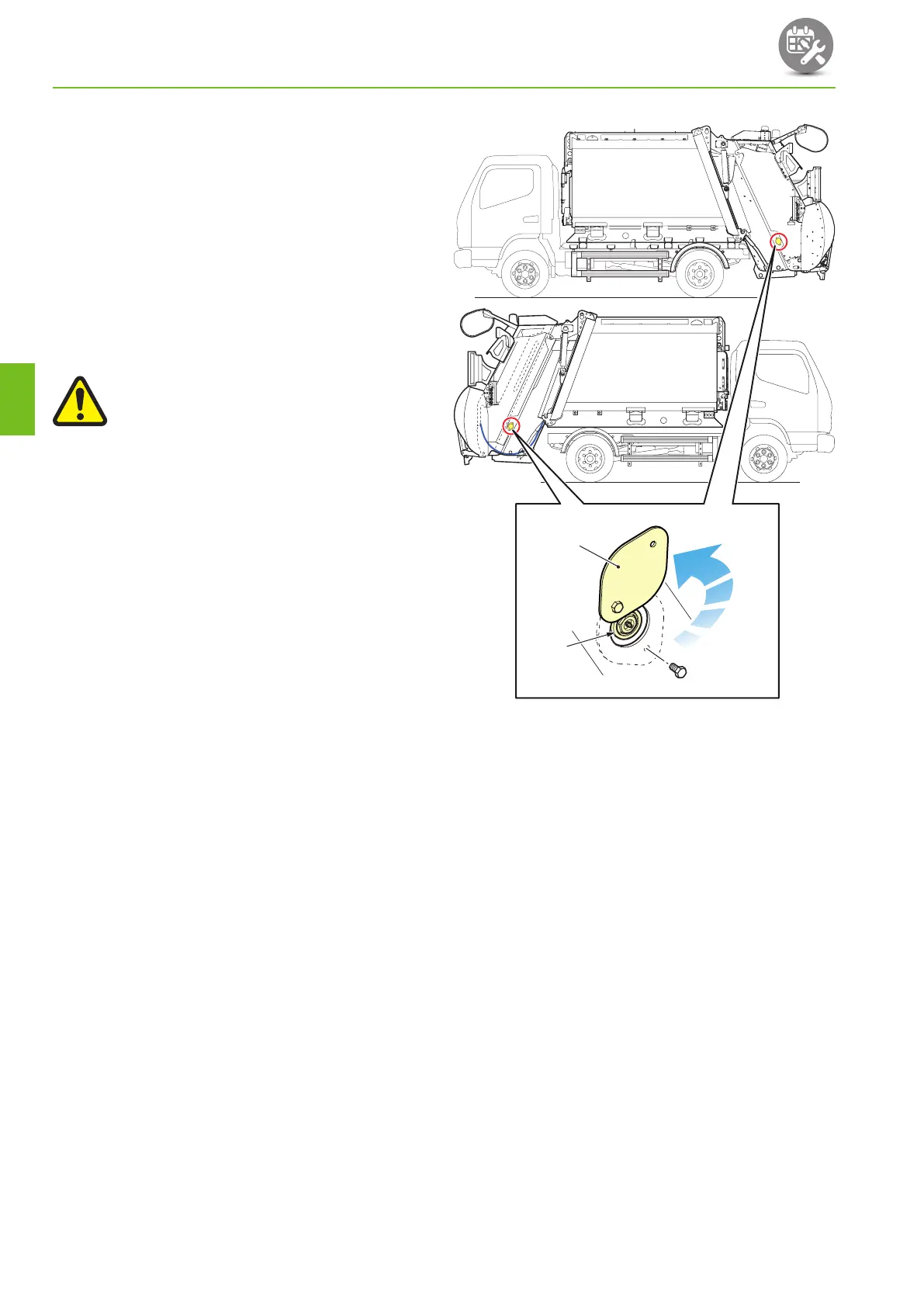

Fig. 6-1 Bodywork lubrication points
