5.1 Drains
5.1.1 Body drain
The body drain is on the right‑hand side of the body at
the front.

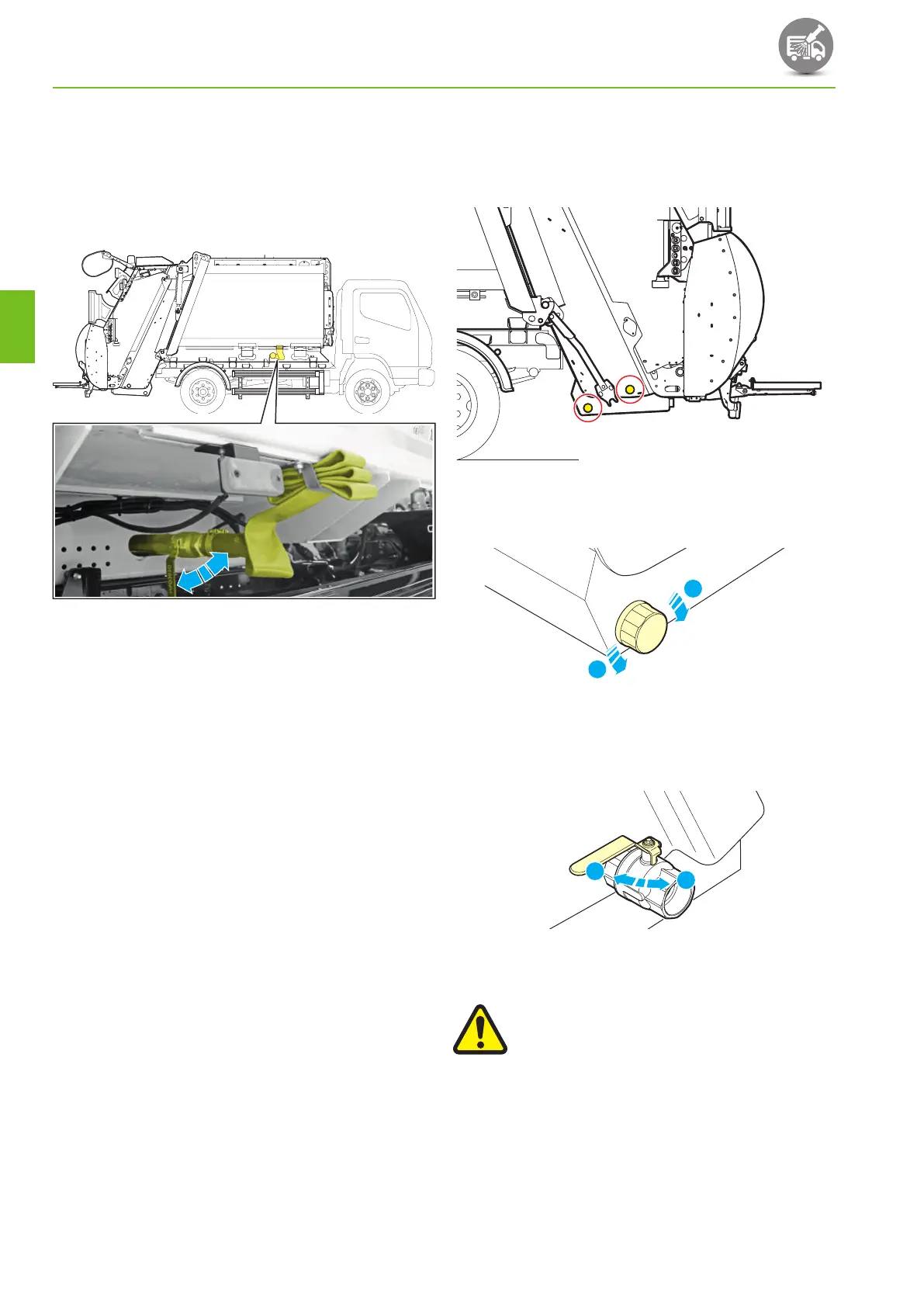

Fig. 5-1 Body drain
To open: Release hose from bracket and turn lever
upwards..
To close: Turn lever downwards and stow hose in
bracket.
5.1.2 Tailgate drains
There is a drain point on each side of the tailgate and
leachate tank (if fitted).
Fig. 5-2 Tailgate drains
1. Plug Type
B
A
A. To open: Unscrew drain plug off drain.
B. To close: Screw drain plug onto drain.
2. Valve Type
D
C
C. To open: Turn lever outwards.
D. To close: Turn lever inwards.
WARNING:
MAKE SURE THAT ALL BODY AND
TAILGATE DRAINS ARE CLOSED AND
THAT THEIR OPERATING LEVERS ARE NOT
PROTRUDING FROM THE SIDE OF THE
VEHICLE WHEN CLEANING IS COMPLETED.
CLEANING
5‑4
OM1R-SM-GB01R
5
