RosRoca Olympus Mini - Check the Security of Body Mounting Bolts

SCHEDULED MAINTENANCE
6‑11
OM1R-SM-GB01R
6.9.1 Check the security of body
mounting bolts
Check that body mounting bolts are tightened to the
specified torques, and spring lengths and gaps are
correct.
Ref. Components Size
Spring
length **/
gap ‡ mm
Nm
1 Front body mounting bolts. M12 x 35 142
2 Front body mounting bolts M12 x 90 **42
3 Body bracket mounting rail bolts. M10 x 25 48
4 Body bracket mounting setscrews. M10 x 25 48
5 Intermediate body mounting bolts. M12 x 35 142
6 Intermediate body mounting bolts. M14 X 40 225
4703-OM1-R-GB-G1
A
B
C
A
A
A
A
B
B
C
C
C
C
B
B
2
2**
6
3
3
4
4
1
5

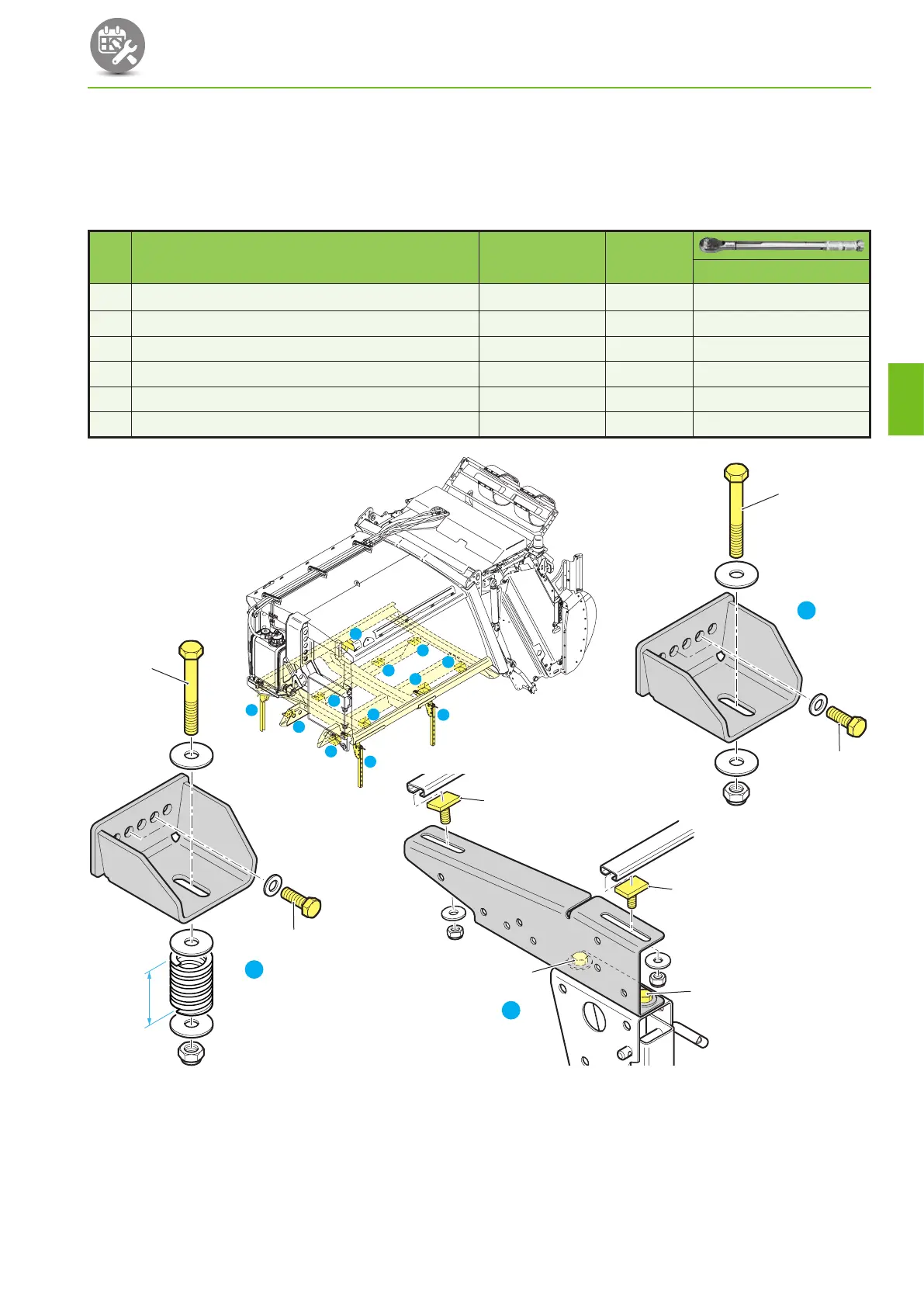

Fig. 6-5 Body mounting bolts
6
