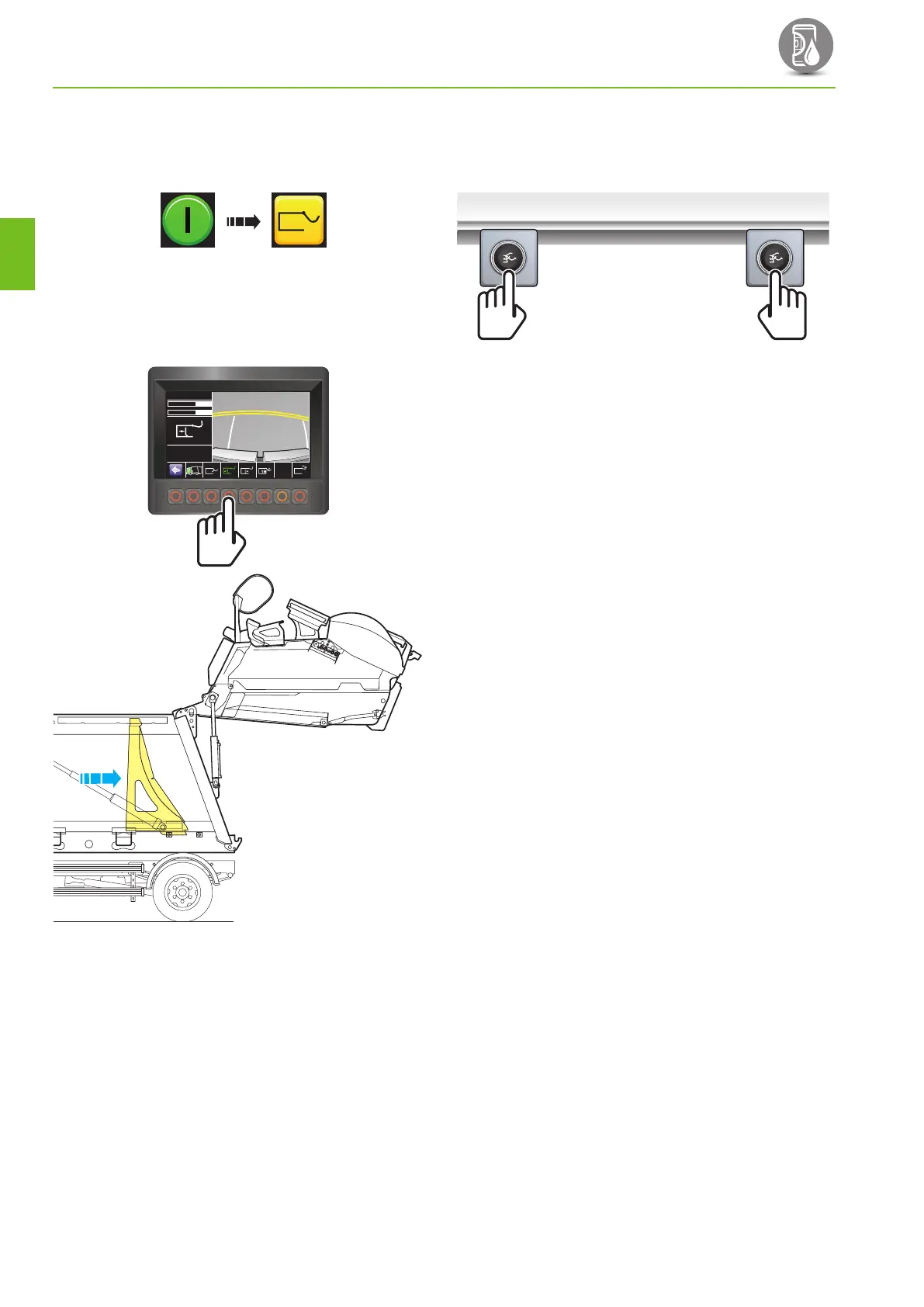

When the tailgate is out of its locks, the ‘Tailgate out‑
of‑locks’ pictogram will display on the control panel
screen.
16. Press and hold the ‘Eject’ switch to move the
ejection plate to the rear of the body. Release the
switch when the ejection plate is at the rear of the
body.
0 No errors
0 No errors
0 No errors
Hyd Oil Temp
0 No errors
0 No errors
32
o
C
01.06.201309:00:00
Hyd_Oil_Pressure 60 Bar
17. Press the two push‑buttons on the ‘Tailgate
lowering’ control panel simultaneously to lower the
tailgate fully into its locks.
• The engine speed will increase.
When the tailgate is lowered fully and engaged in its
locks, the ‘System on’ pictogram will display on the
control panel screen.
18. Turn the ‘Body main’ switch to ‘off’ position.
Remove and retain the key.
19. Switch ignition ‘off’. Remove and retain the key.
20. Lock all cab doors. Remove and retain the keys.
HYDRAULIC SYSTEM OIL LEVEL
4‑6
OM1R-SM-GB01R
4
