Rosslare AC-215 Hardware Installation Manual

DIP Switch Settings Configuration
18 AC-215 Installation Manual

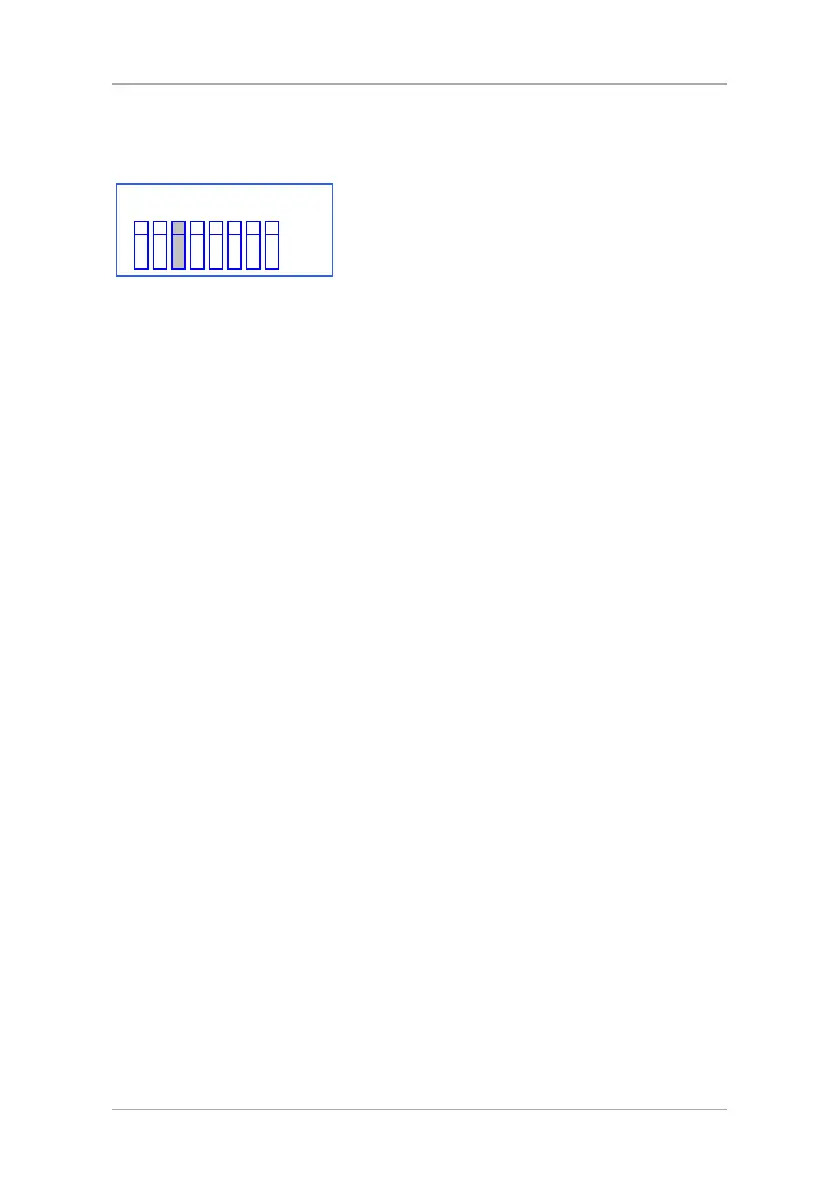

4.2 ACU Type
The ACU type is defined using the third DIP switch. Both the single and double
can be set.
 Off – defines single door controls
 On – defines a double door controls
4.2.1 Single Door Controller
This access type has two readers, IN and OUT, as follows:
 Outputs:
 Door lock strike
 Auxiliary output
 Alarm output
 General purpose output
 Inputs:
 Release to exit
 Door monitor input
 Tamper input
 General purpose input
For more information, see Chapter 3.
4.2.2 Double Door Controller
This access type has two readers, IN and OUT, as follows:
 Outputs
 Door 1 lock strike
 Door 1 alarm output
 Door 2 lock strike
 Door 2 alarm output
 Inputs
 REX Door1
 Door 1 monitor input
 REX Door 2
 Door 2 monitor input
1 2 3 4 5 6 7 8
