Rosslare AC-215 Hardware Installation Manual

Wiring
30 AC-215 Installation Manual
6.5 Reader
Proximity and keypad readers are supplied with a limited cable. The color of
the cable covering represents the cable’s function.
When extending cable distance be careful with the color of the cable cover. The
distance is limited by the Wiegand standard.

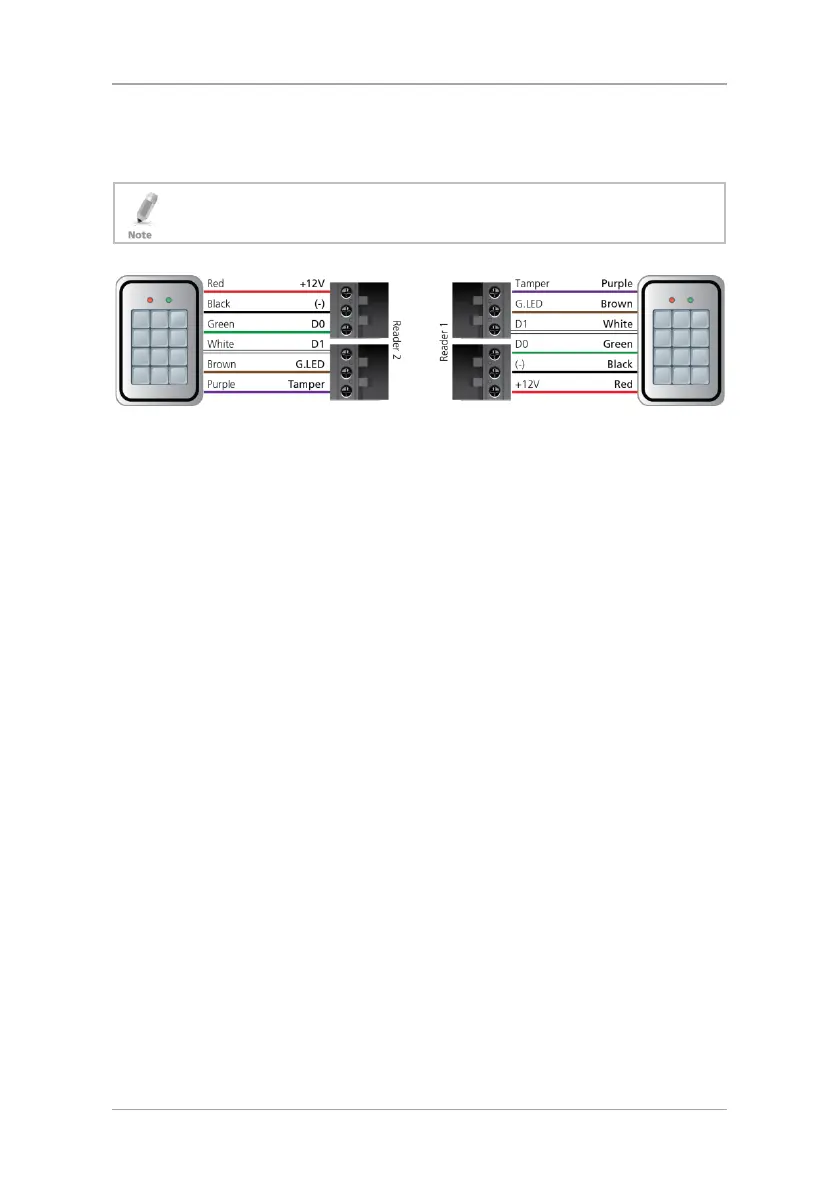

Figure 11: Reader Cable Coloring
Key:
+V Red
(-) Black
D0 Green
D1 White
G.LED Brown
Tamper Purple
