6.2 Inputs

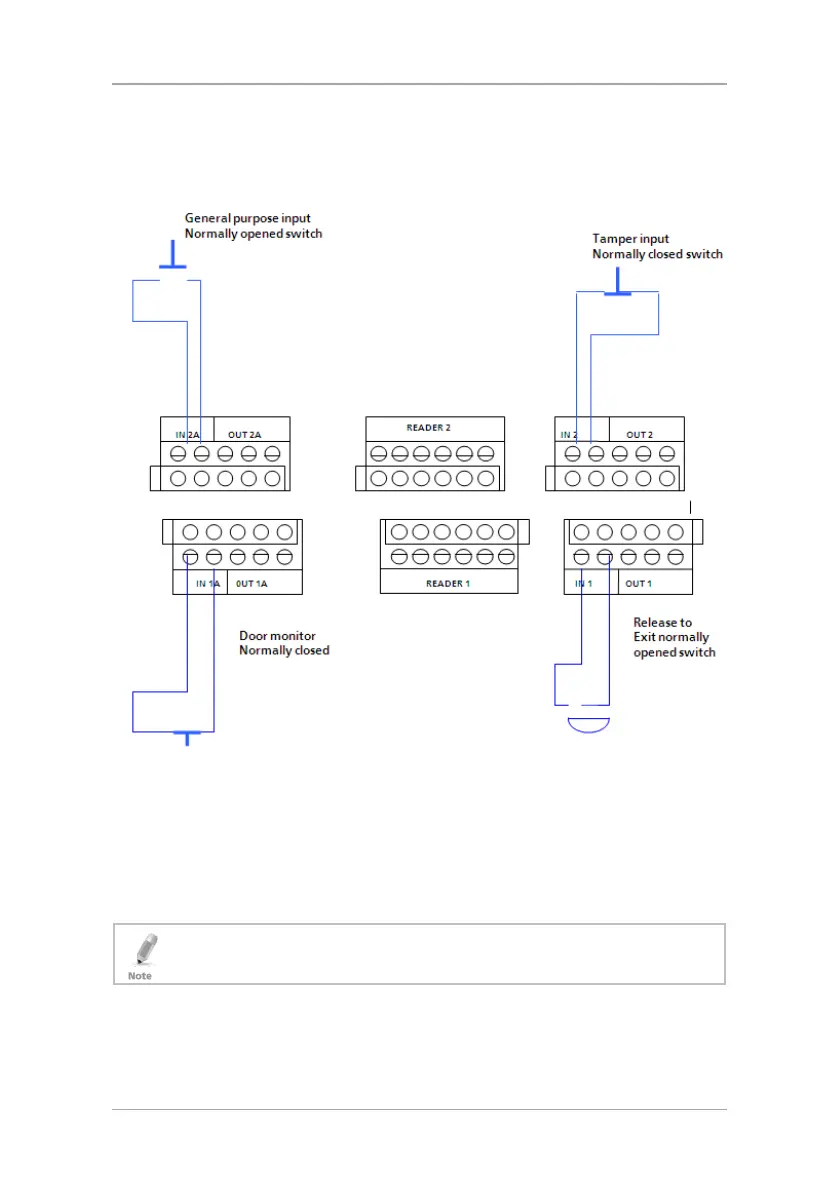

Figure 6 illustrates wiring for four AC-215 inputs. For further details, see
Chapter 3.
Figure 6: Wiring Four AC-215 Inputs
6.3 Outputs
Figure 7 and Figure 8 illustrate wiring for two main types of 12 VDC electric
release mechanisms. Other electrical devices can be switched using the voltage
free relay contacts.
The output can provide 12 VDC power up to 1.5 A for external door locks. For
higher rated door locks an external UL 294 Listed power supply must be used
to provide power to the door lock.
For UL installations, the installer must configure the system as fail-safe to
comply with NFPA (National Fire Protection Association) regulations.
