Connecting between MD-N32 and AC-215
AC-215 Installation Manual 33
5. In the Configuration area, type the IP Address and Subnet that the
network administrator supplied you.
6. In the Port field, enter 1000.
7. In the Speed area, select the speed of your serial connection (9600/19200/
38400/57600).

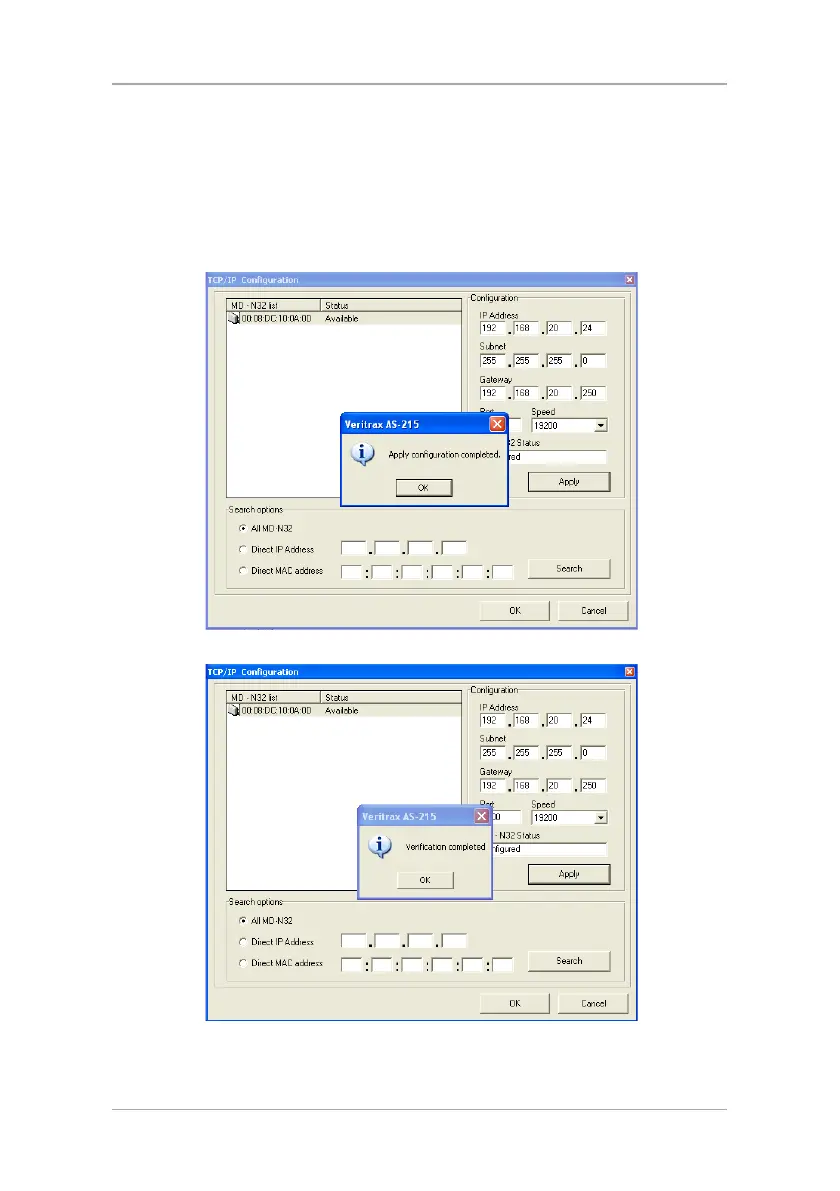

8. Click Apply to send the configuration to the unit and wait for following
message:
9. Click OK to start verification process and wait for the following message:
