1.4 Ancillary Equipment
The following ancillary equipment may be required to complete your
installation:
 Electric Lock Strike Mechanism – fail safe (power to lock) or fail
secure (power to open).
 Power supply with backup battery – 12 to 24 VDC (from a
regulated power supply) or 16 to 24 VAC (from a transformer).
 Request to Exit (REX) Button (optional) – normally open type;
switch is closed when pressed.
 BL-D40 External Sounder (optional) – provides siren, bell, and
chime.
 Magnetic contact (optional) – installed for door monitor
capabilities.
Other Rosslare accessories can be found at Rosslare's Website:
www.rosslaresecurity.com
1.5 10BFront Panel Description
Figure 1 and Figure 2 show the controls and indicators of all controller
versions.

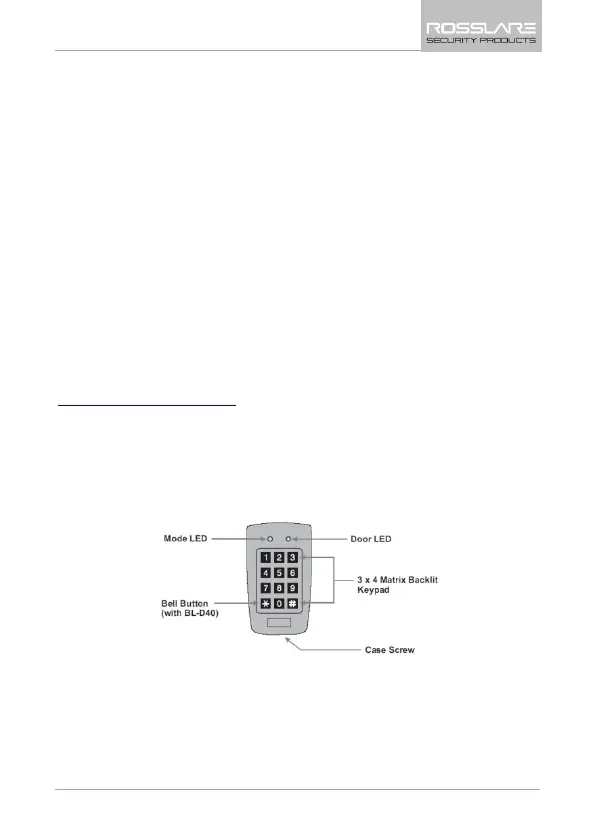

Figure 1: Front Panel of AC-F4x Series
