Programming
AC-F/G4x Family Installation and Programming Manual 47
strike and auxiliary relay. Assignment of such codes is achievable for
any valid user code entered in the controller.
There are two methods to assign relay codes to users: a standard
method and a search method.
5.13.1 Relay Code Assignment using Standard Method
To assign the relay code using Standard method:

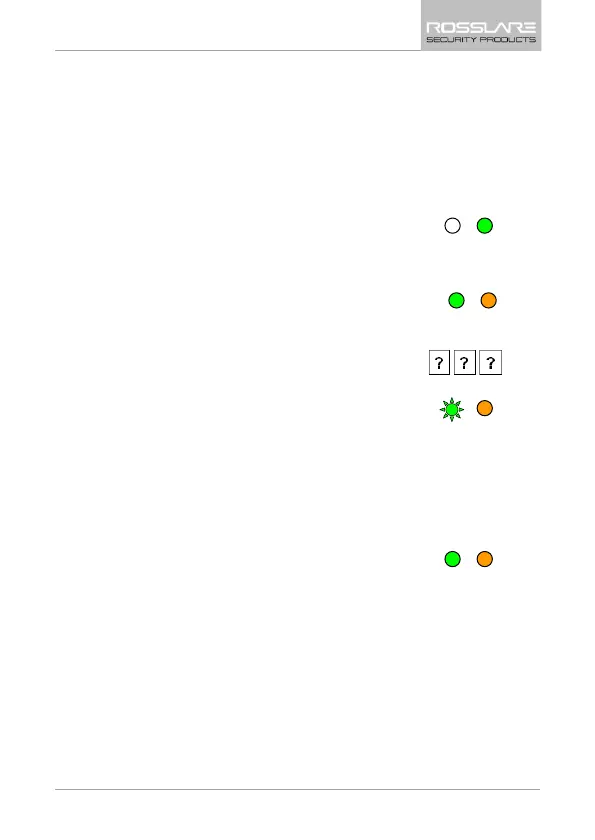

1. Enter Programming mode.
2. Press 9 to enter Menu 9.
The Mode indicator turns green.
The Door indicator turns orange
3. Enter the 3-digit user slot for code
assignment.
The Mode indicator flashes green.
4. Enter the assignment digit for the current user slot:
1 activates the Lock Strike relay only deafult
2 activates the Auxiliary relay only
3 activates the Lock Strike and Auxiliary relays
If the assignment code is valid, the Mode
indicator stops flashing.
The controller is now waiting for another slot number.
5. Press # to move to the next slot or enter a new slot number.
6. If you do not wish to continue, press # twice and the controller
returns to Normal mode.
