Programming

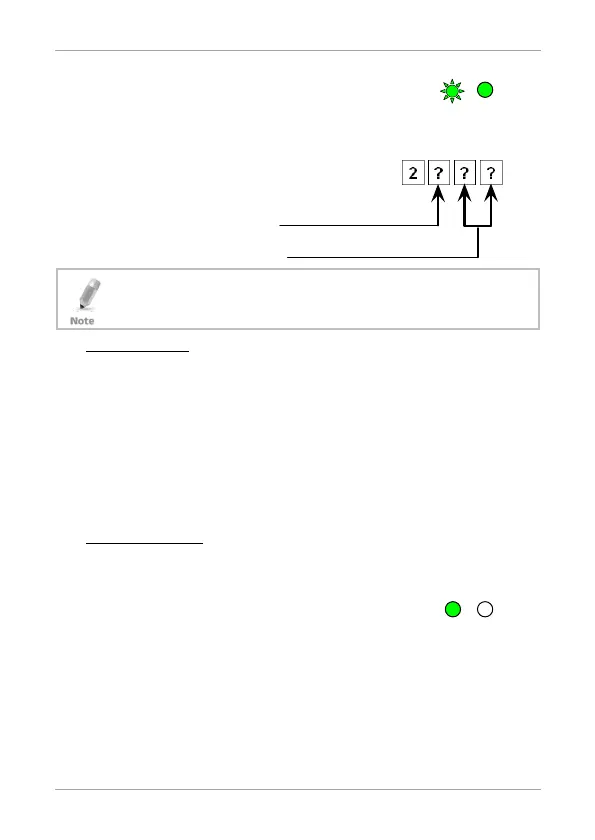

34 AC-F/G4x Family Installation and Programming Manual
The Mode indicator flashes green.
3. Construct a code using the following instructions:
Table 3 provides a quick reference
listing for the auxiliary modes and
settings)
Auxiliary Mode
Auxiliary Setting
Auxiliary Relay activation is subject to the user’s Auxiliary
code assignment (excluding Shunt, which is activated by all
users). For more details, see Section 5.13.
Auxiliary Mode
In addition to the Lock Strike relay and the Lock Strike REX, the
controller features an auxiliary output relay and an auxilia
ry input,
whose function is established by the auxiliary mode selection (0
thru 9).
The auxiliary mode also determines if the auxiliary output relay is
set for failsafe or for fail secure operation.
For a more detailed explanation on each auxiliary mode, see
Table
3 below.
Auxiliary Settings
Each of the auxiliary modes has a two-digit setting which affects
the operation of the related relay(s).
 You hear three beeps.
 The Door indicator turns off.
 The Mode indicator turns green.
Mode
Door
Green
Green
Mode
Door
Green
