Rotax 125 Max User Manual

DK00028.fm
REPAIR MANUAL
BRP-Powertrain
Effectivity: 125 MAX/125 Junior MAX/125 Mini
MAX/125 Micro MAX
Edition 2 / Rev. 0
Chapter 6
Page 12
December 01/2010
3.2) Checking fuel pump
General NOTES: Only the complete membrane and gasket set of the fuel
pump can be replaced.
Fuel pump gasket set: part no. 296165.
Instructions See Figure 7.

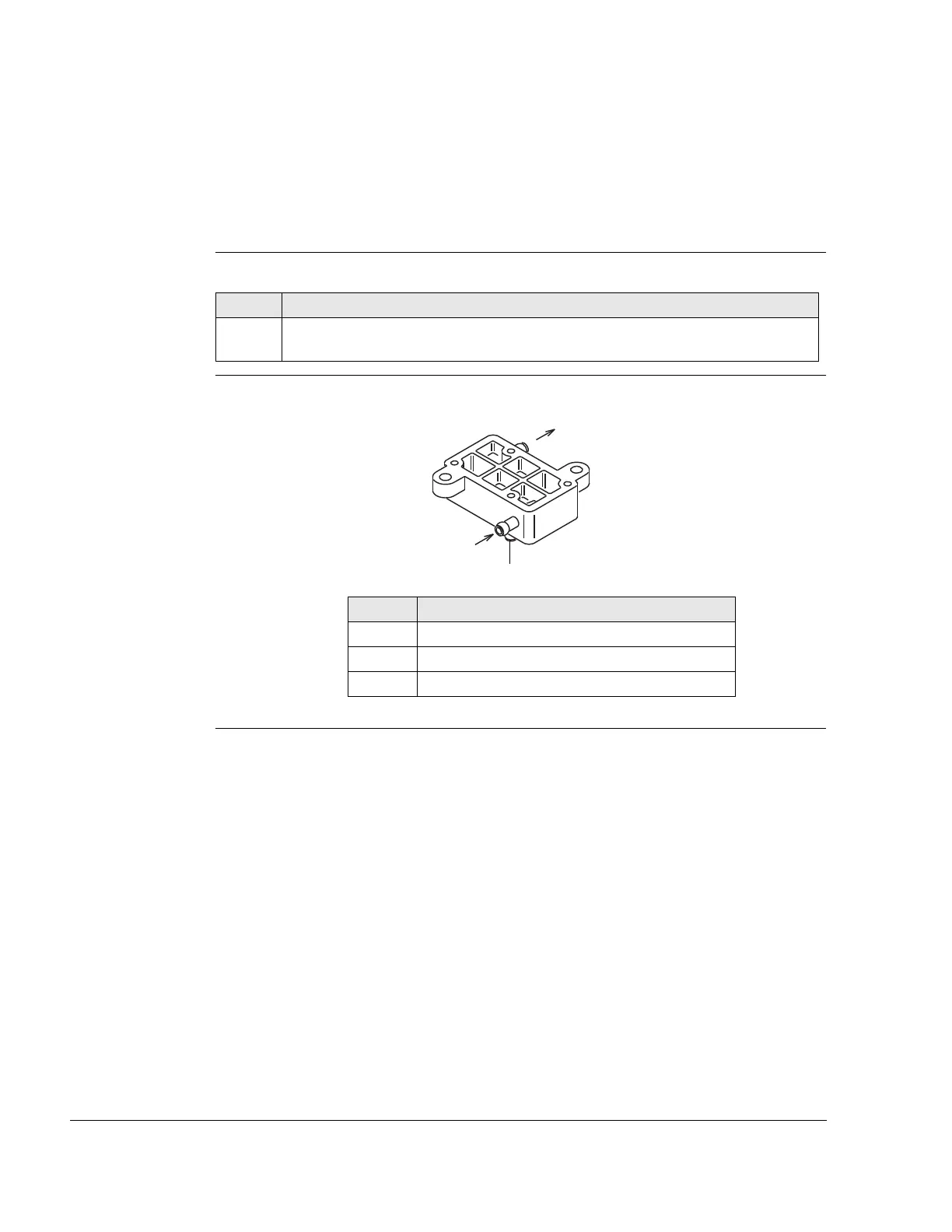

Graphic Fuel pump
Figure 7 K00065
Step Procedure
1 Check the condition of the impulse pipe (1), fuel line (2) and fuel overflow line
(3) and in case of doubt replace.
Part Function
1 Impulse pipe
2 Fuel line
3 Fuel overflow line
2
3
1

Rotax 125 Max Specifications

General

Engine type	Single-cylinder, 2-stroke
Displacement	124.8 cc
Cooling system	Liquid-cooled
Bore x Stroke	54 mm x 54.5 mm
Starter	Electric starter
Intake System	Reed valve
Clutch	Centrifugal dry clutch
Fuel System	Carburetor
Exhaust system	With silencer
Maximum Power	28 hp (20.5 kW) @ 11, 500 rpm
Maximum Torque	21 Nm at 10, 500 rpm
Gearbox	Direct drive
Lubrication	Mixture lubrication
