3.3) Checking the clutch and starter gear assembly
Instructions See Figure 12.

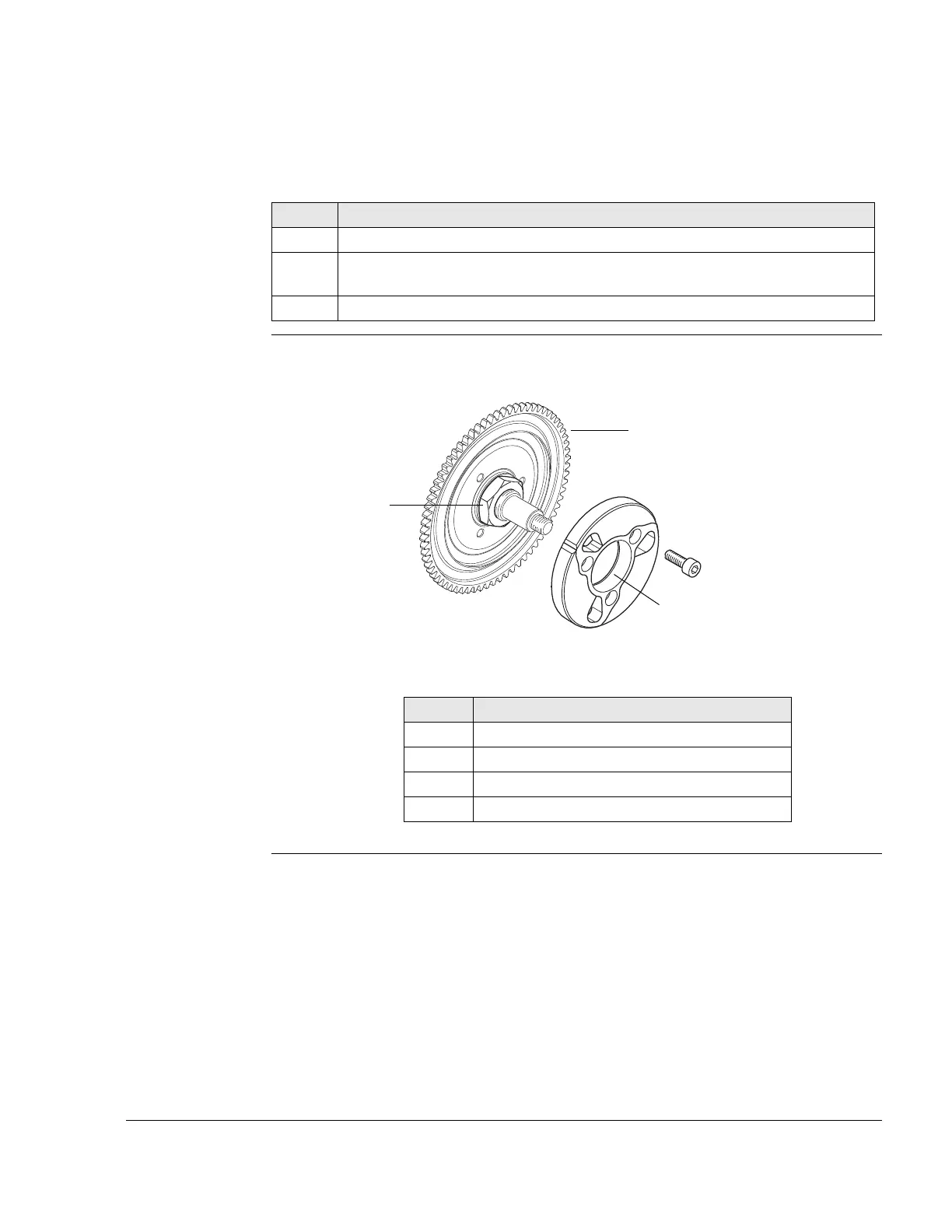

Graphic Clutch and starter gear assembly
Figure 12 K00020
Step Procedure
1 Check the hole (1) in the clutch (2).
2 Inspect the teeth (2) of the starter gear assembly (3) for damage or
deformation.
3 Remove LOCTITE residue from the taper (4) of the starter gear assembly.
Part Function
1 Hole (clutch)
2 Clutch
3 Starter gear assembly
4 Taper (starter gear assembly)
1
3
4
2
