Rotax 125 Max - Exhaust System Description

DK00031.fm
REPAIR MANUAL
BRP-Powertrain
Effectivity: 125 MAX/125 Junior MAX/125 Mini
MAX/125 Micro MAX
Edition 2 / Rev. 0
Chapter 9
Page 3
December 01/2010
1) System description

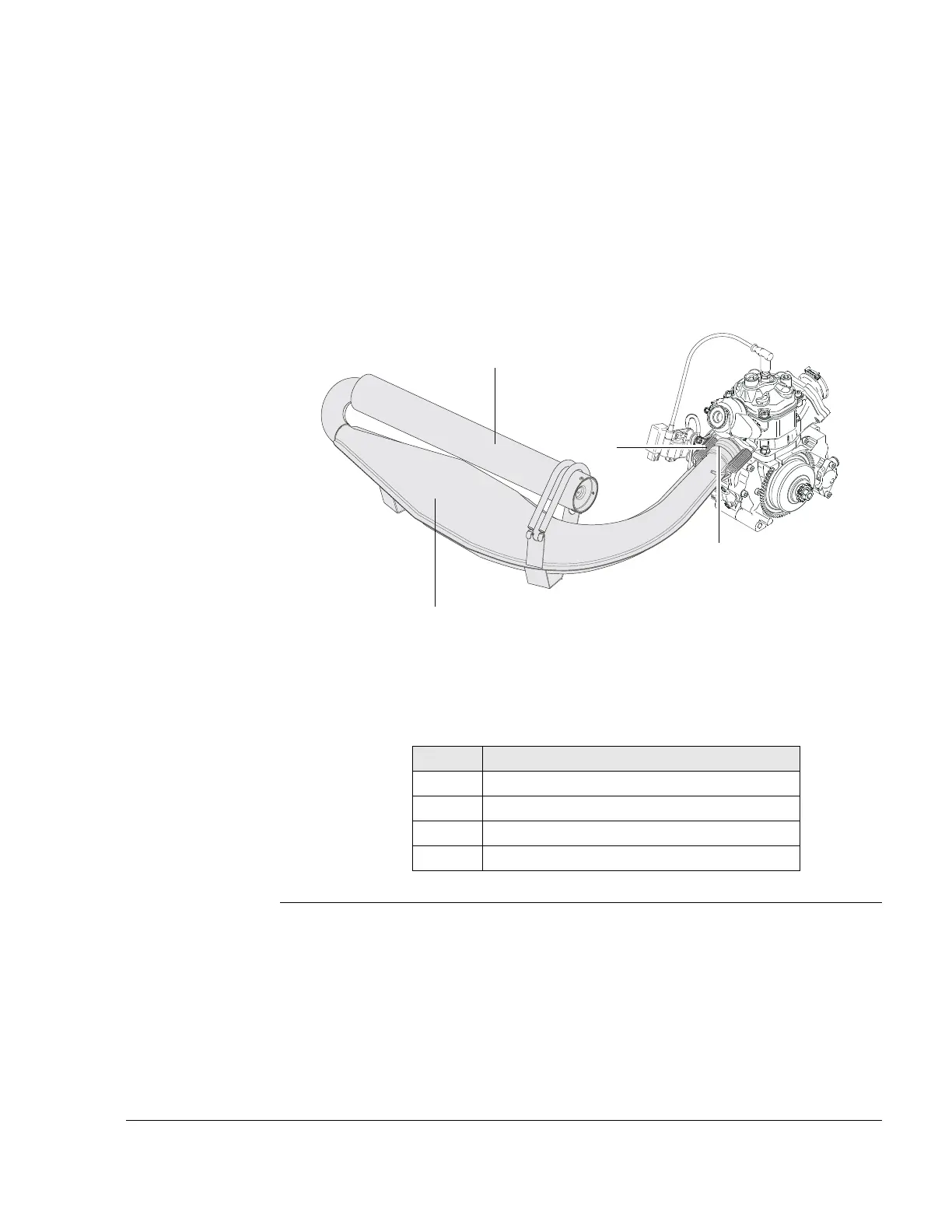

Overview Position on the engine
Figure 1
K00154
Part Function
1 Exhaust muffler
2 After-muffler
3 Ball socket
4 Exhaust spring
4
3
2
1
