DK00029.fm

REPAIR MANUAL

BRP-Powertrain

Effectivity: 125 MAX/125 Junior MAX/125 Mini

MAX/125 Micro MAX

Edition 2 / Rev. 0

Chapter 7

Page 16

December 01/2010

3.2) Electric starter repair kit

Special tools The following special tools and equipment are required:

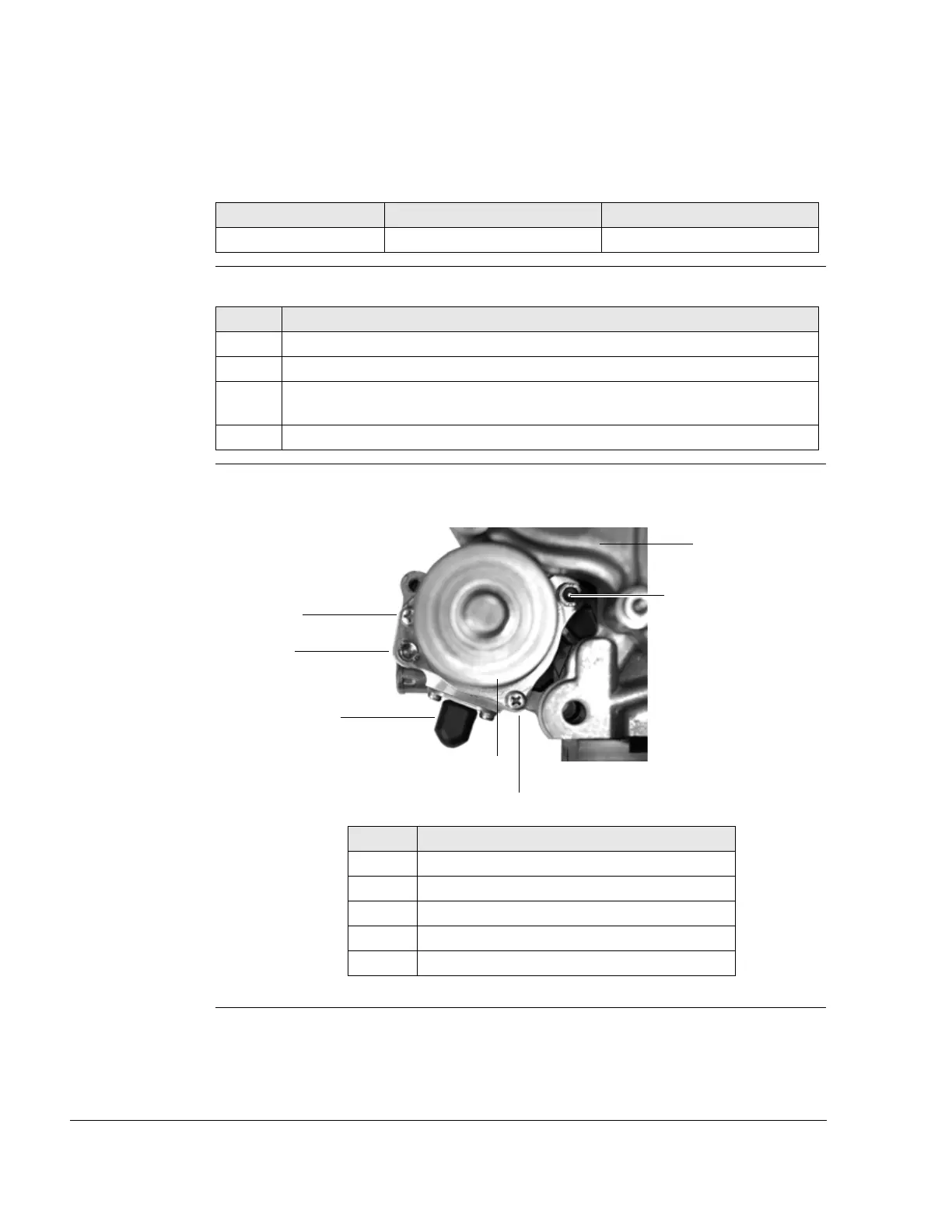

Instructions See Figure 10.

Graphic Electric starter

Figure 10 K00150

Part number Description Use

Part no. 281261 Electric starter repair kit Electric starter

Step Procedure

1 Disconnect electrical connection (1) from the starter (2).

2 Remove the ground cable.

3 Remove the starter housing from the crankcase and gearbox case (4) by

unscrewing 2 cyl. screws (3).

4 Unscrew the starter housing screws (5).

Part Function

1 Electrical feed

2 Electric starter

3 Cyl. screw

4 Gearbox case

5 Starter housing screws
