REPAIR MANUAL
BRP-Powertrain
Effectivity: 125 MAX/125 Junior MAX/125 Mini
MAX/125 Micro MAX
Edition 2 / Rev. 0
Chapter 5
Page 9
December 01/2010
3.1) Disassembling crankshaft
Safety
instructions

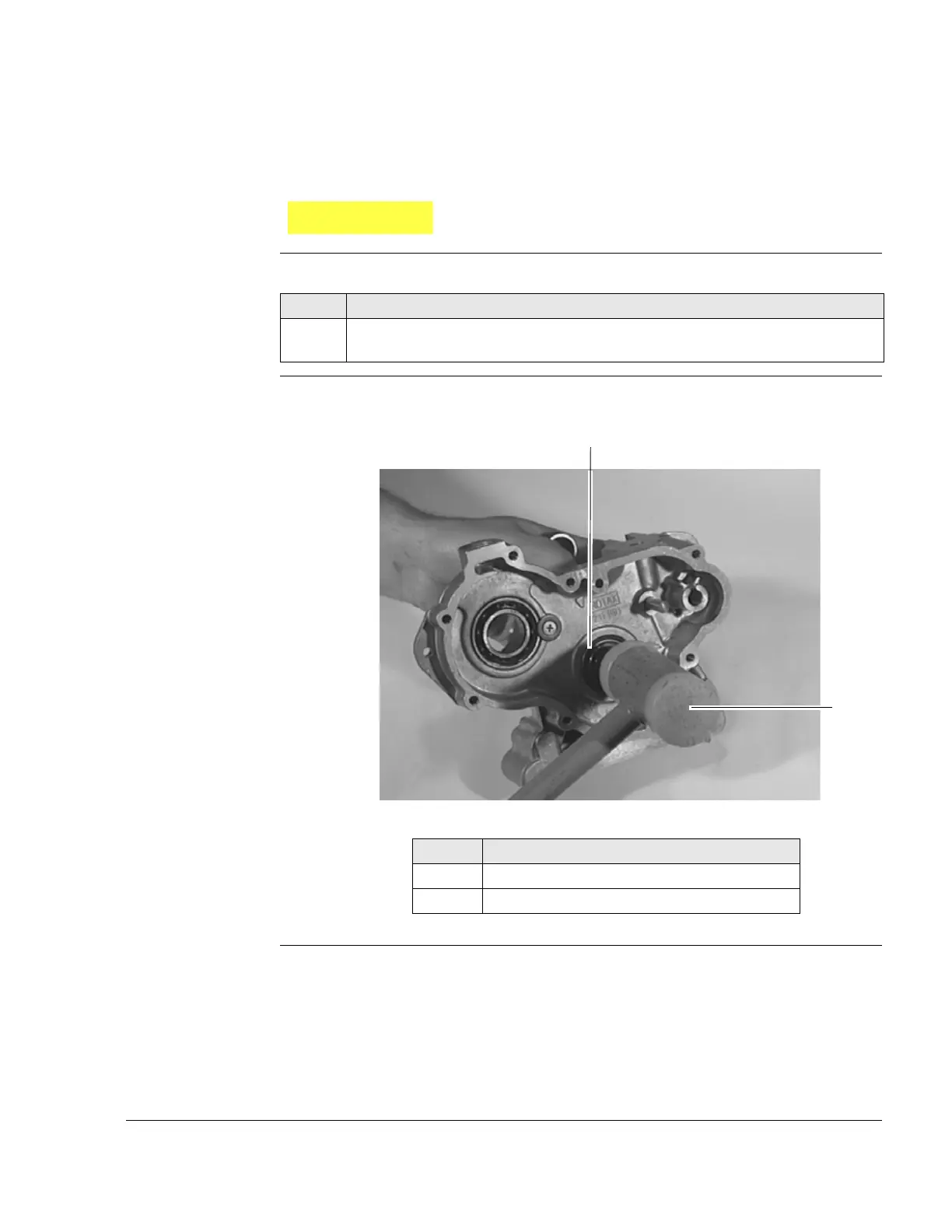

Instructions See Figure 4.
Graphic Crankshaft
Figure 4 K00036

WARNING

CAUTION
Increased danger of injury!
Be aware of the weight of shafts.
Step Procedure
1 Gently tap the crankshaft with the plastic hammer (2) to remove the crankshaft
from the case half.
Part Function
1 Crankshaft
2 Plastic hammer
2
1

Rotax 125 Max Specifications

General

Engine type	Single-cylinder, 2-stroke
Displacement	124.8 cc
Cooling system	Liquid-cooled
Bore x Stroke	54 mm x 54.5 mm
Starter	Electric starter
Intake System	Reed valve
Clutch	Centrifugal dry clutch
Fuel System	Carburetor
Exhaust system	With silencer
Maximum Power	28 hp (20.5 kW) @ 11, 500 rpm
Maximum Torque	21 Nm at 10, 500 rpm
Gearbox	Direct drive
Lubrication	Mixture lubrication
